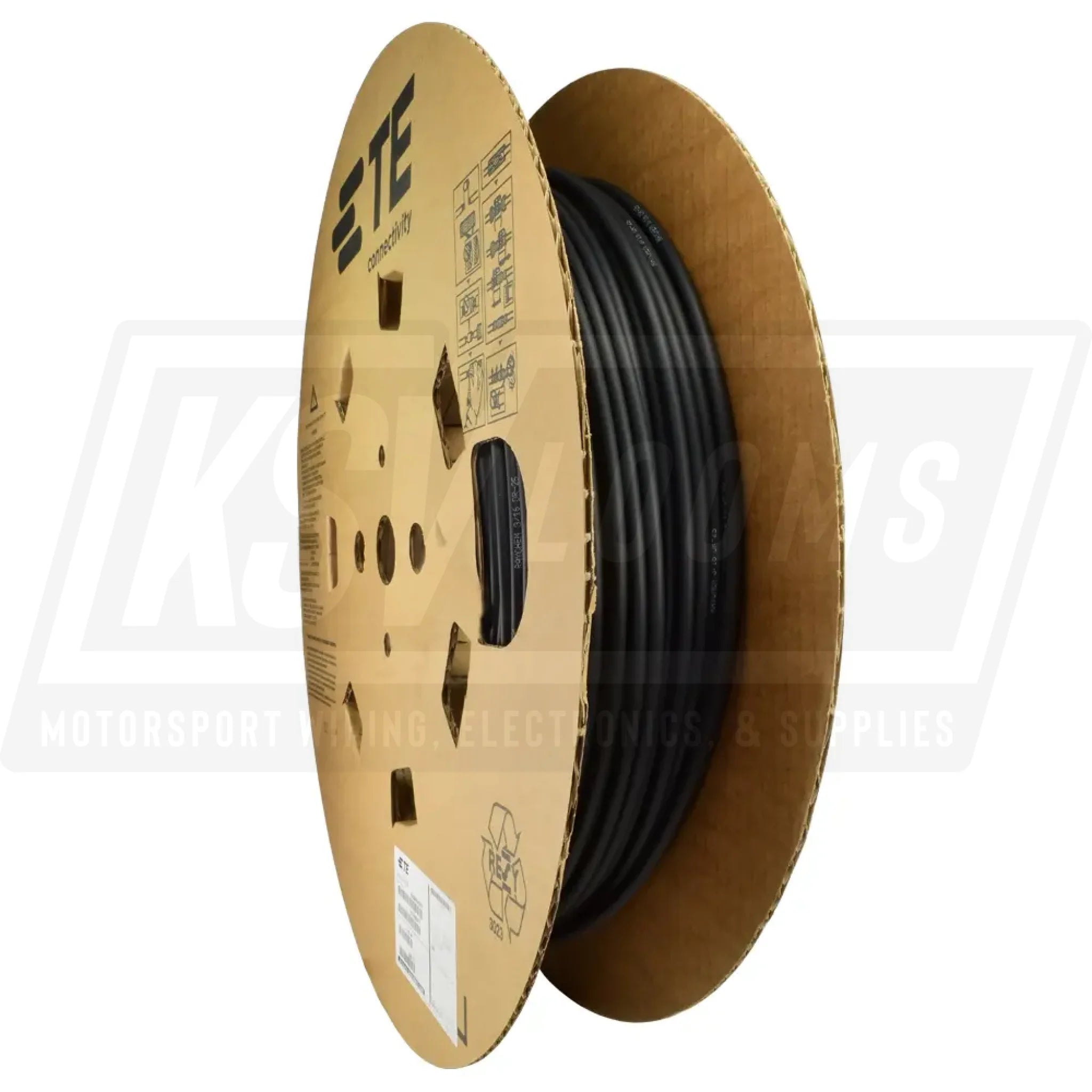

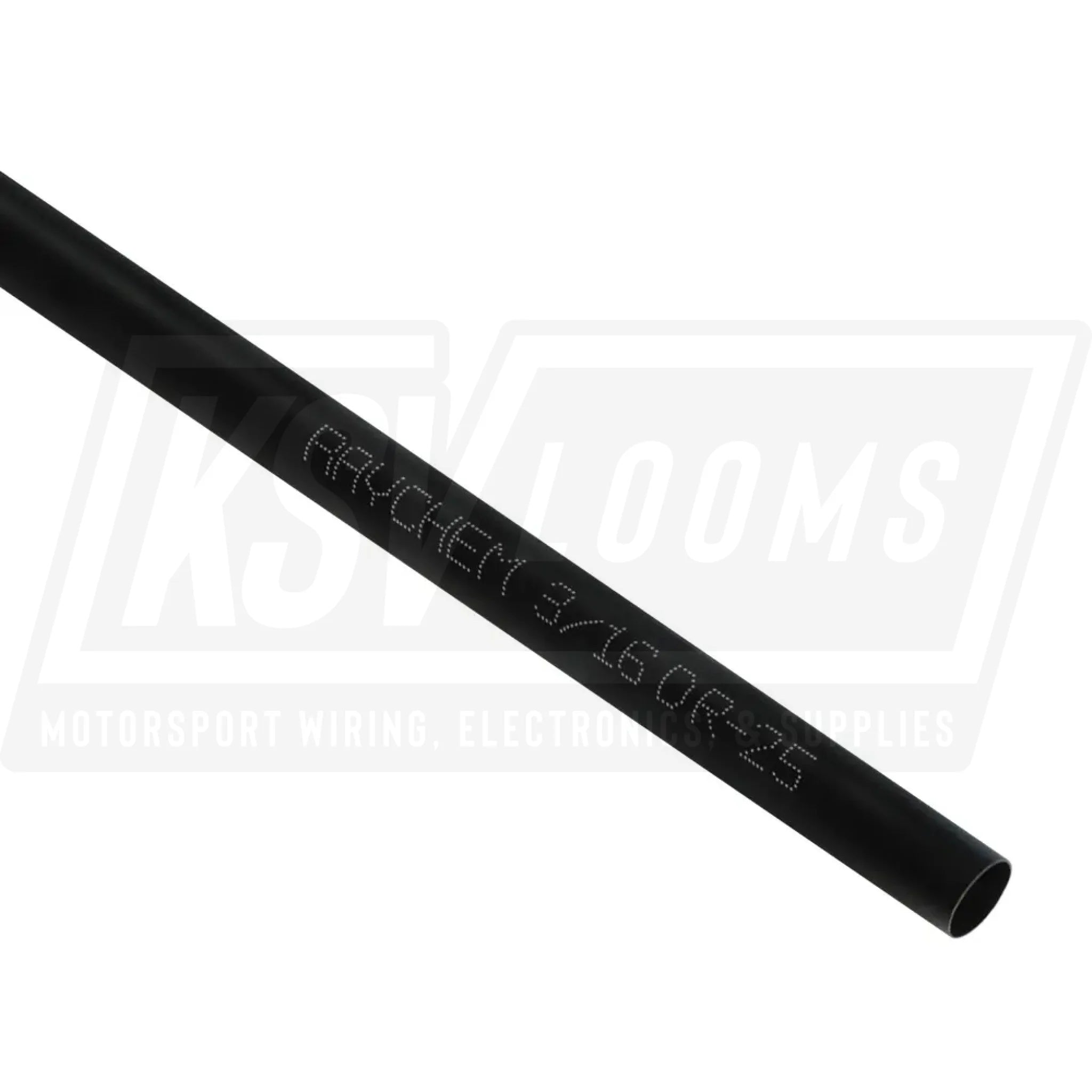

3/16’’ Raychem DR-25 (White Label) Heat Shrink Tubing (per foot)
3/16’’ Raychem DR-25 (White Label) Heat Shrink Tubing (per foot)
3/16’’ Raychem DR-25 (White Label) Heat Shrink Tubing (per foot)
3/16’’ Raychem DR-25 (White Label) Heat Shrink Tubing (per foot)
Part #: DR-25-3/16-0-SP-UK

3/16" Raychem DR-25 UK White Label Heat Shrink Tubing — Per Foot

TE Connectivity / Raychem
In stock - 142 Available for Immediate Shipment
$1.65

Secure checkout

Friendly support

Hassle-free returns

Raychem DR-25 UK (United Kingdom) heat shrink tubing with white printing, sold by the foot for wiring-harness protection. Flexible, fluid- and abrasion-resistant tubing for demanding applications, including motorsport.

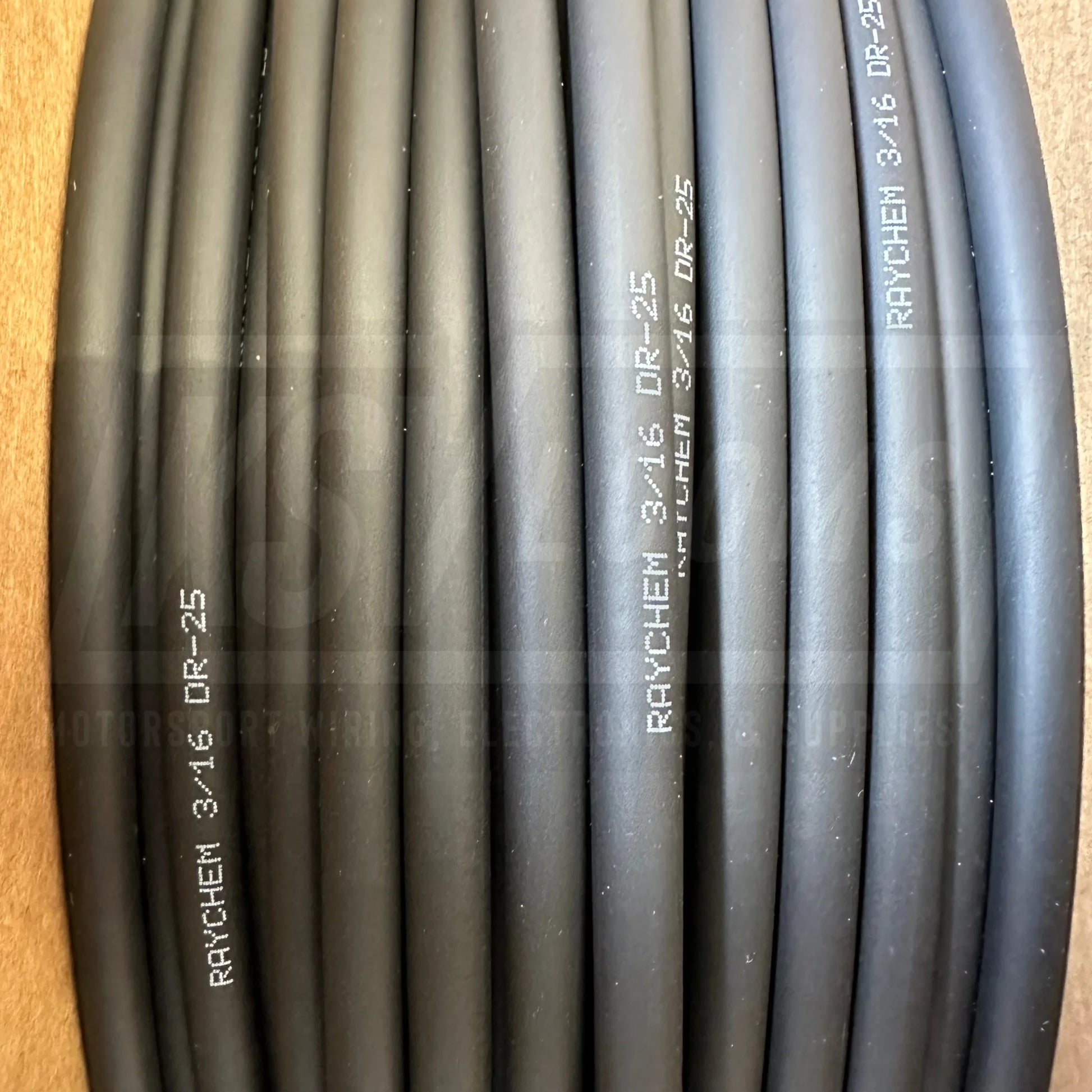

White label refers to the printing colour; the tubing is black. This listing is for the 3/16-inch size.

Choose a size that fits over your harness before recovery (shrinking). See the specifications and full Raychem/TE datasheet below.

Specifications

  • Size: 3/16 inch
  • Minimum supplied inside diameter: 0.187 in (4.75 mm)
  • Maximum fully recovered inside diameter: 0.094 in (2.39 mm)
  • Shrink ratio: 2:1
  • Tubing colour: Black
  • Printing colour: White
  • Material: Crosslinked elastomer
  • Construction: Single wall
  • Adhesive lining: No
  • Operating temperature: −75°C to +150°C (−103°F to +302°F)
  • Minimum full recovery temperature: 175°C (347°F)

Ordering length: Sold by the foot. Quantity 1 = 1 foot; quantity 10 = 10 feet. Maximum continuous length is limited to the factory spool length of 328 feet. Orders exceeding 328 feet will be supplied in multiple pieces.

Related sizes and technical information

Browse all white-label DR-25 sizes
