Select your DTM configuration below. We’ll show the correct kit.
Choose 2, 3, 4, 6, 8, or 12 ways.
Choose a mated, receptacle, or plug kit.
For plug-side kits, choose Standard or E007.
Choose gold or nickel terminals.
Your selected DTM kit
SKU: DTM12M-K-G-SB
$17.82
| Quantity | Save | Price each |
|---|
Quantity discounts are applied automatically at checkout.
SKU: DTM12M-K-N-SB
$17.82
| Quantity | Save | Price each |
|---|
Quantity discounts are applied automatically at checkout.
SKU: DTM12M-K-G
$19.44
| Quantity | Save | Price each |
|---|
Quantity discounts are applied automatically at checkout.

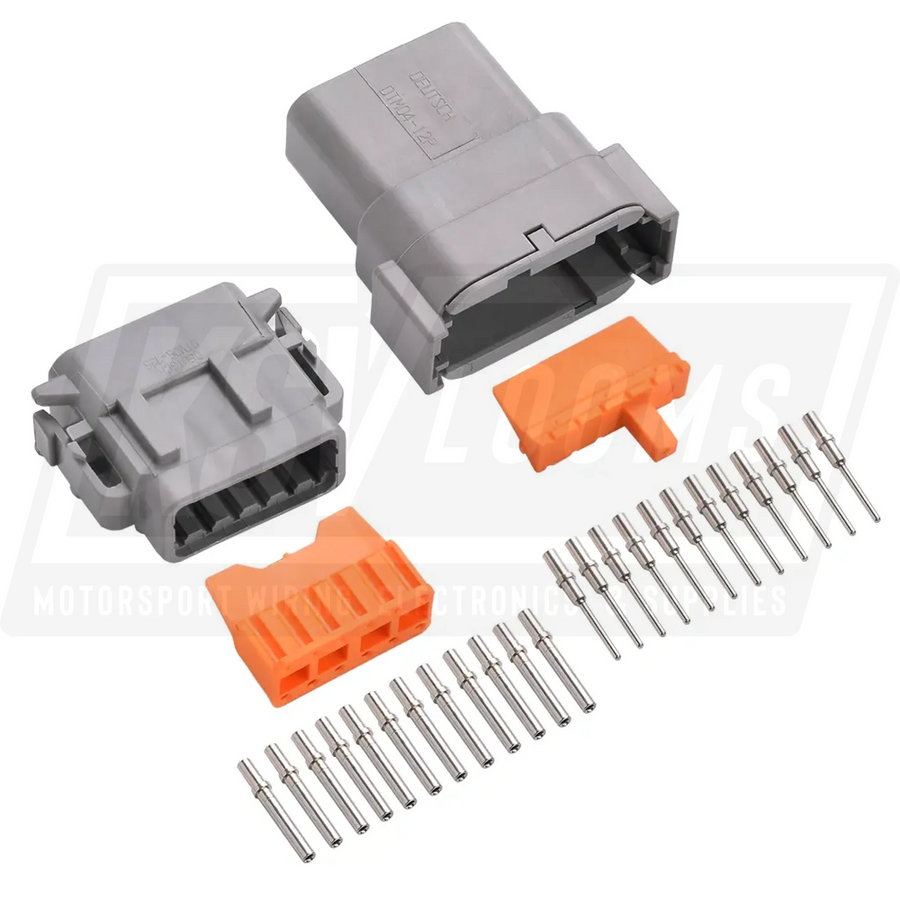

SKU: DTM12M-K-N
$19.44
| Quantity | Save | Price each |
|---|
Quantity discounts are applied automatically at checkout.

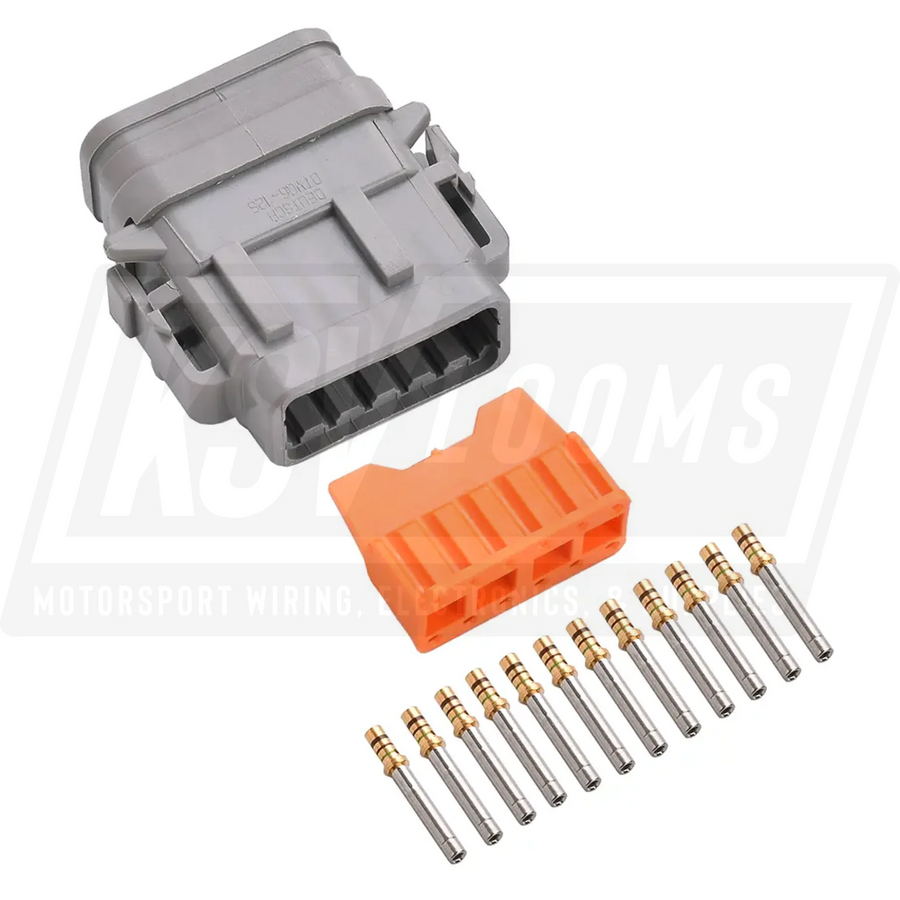

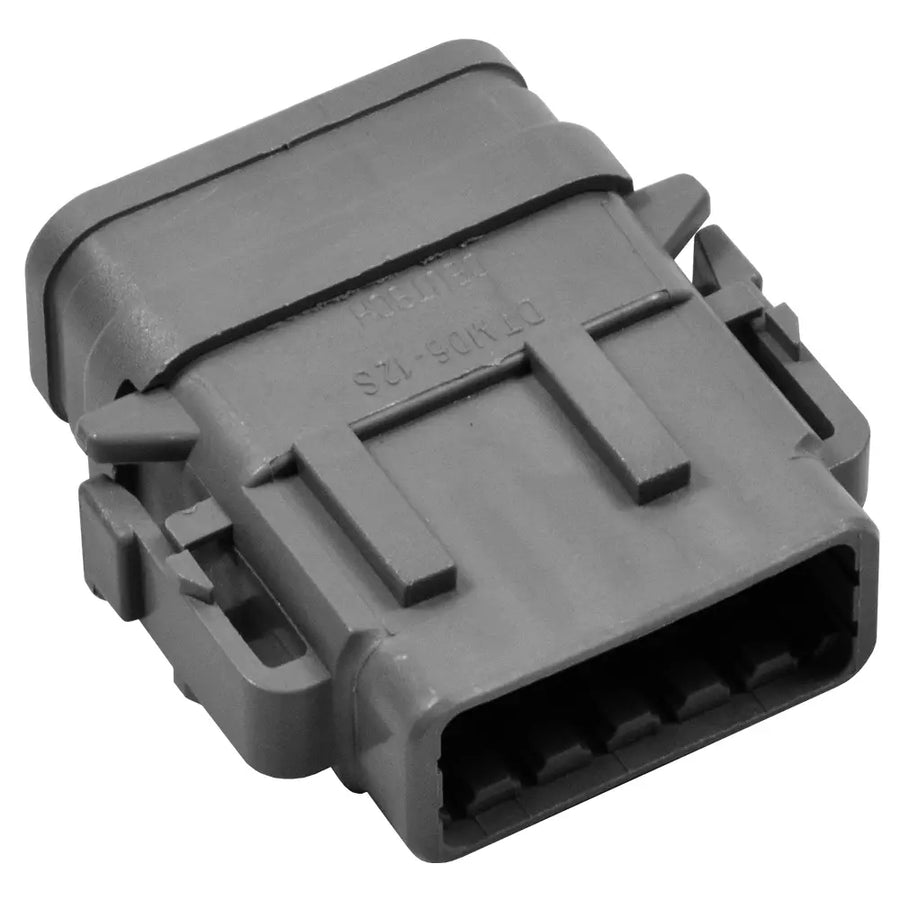

SKU: DTM06-12SA-E007-K-G
$8.54
| Quantity | Save | Price each |
|---|
Quantity discounts are applied automatically at checkout.

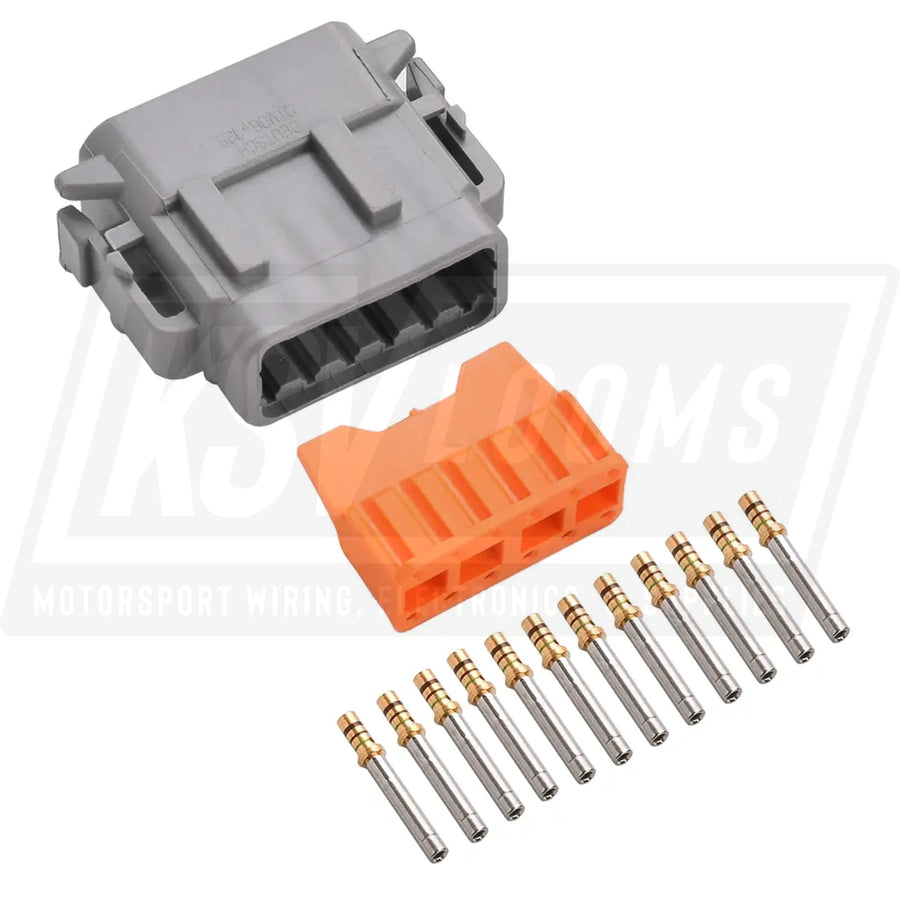

SKU: DTM06-12SA-K-G
$10.16
| Quantity | Save | Price each |
|---|
Quantity discounts are applied automatically at checkout.

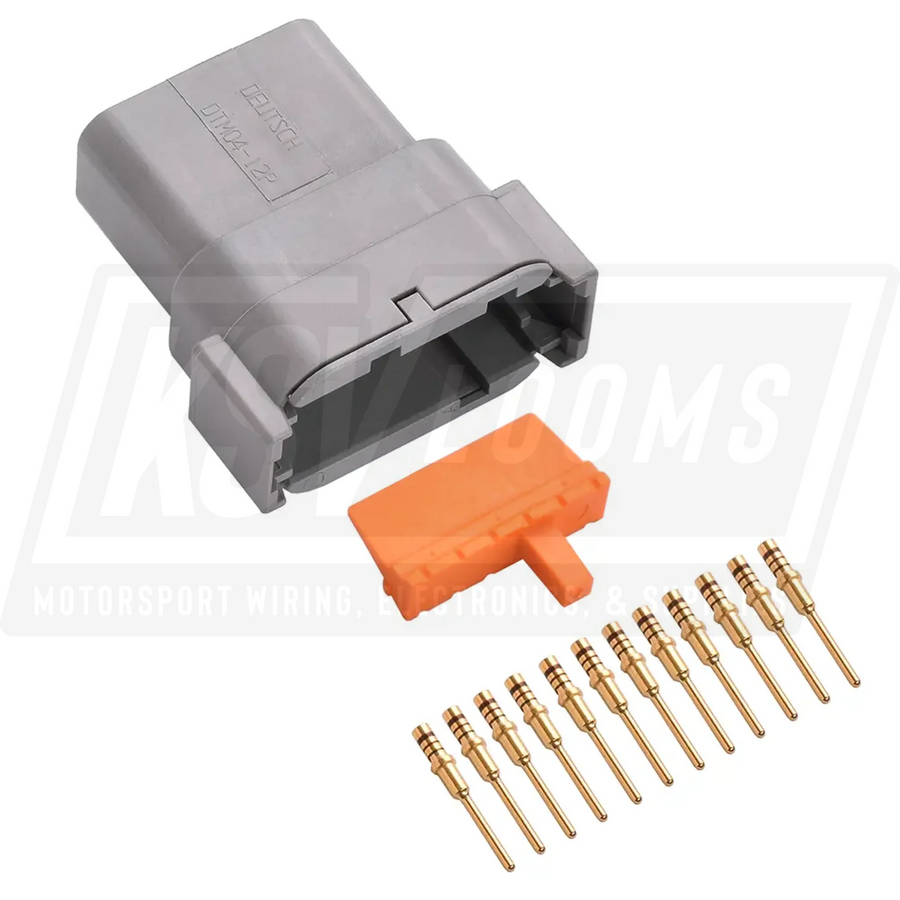

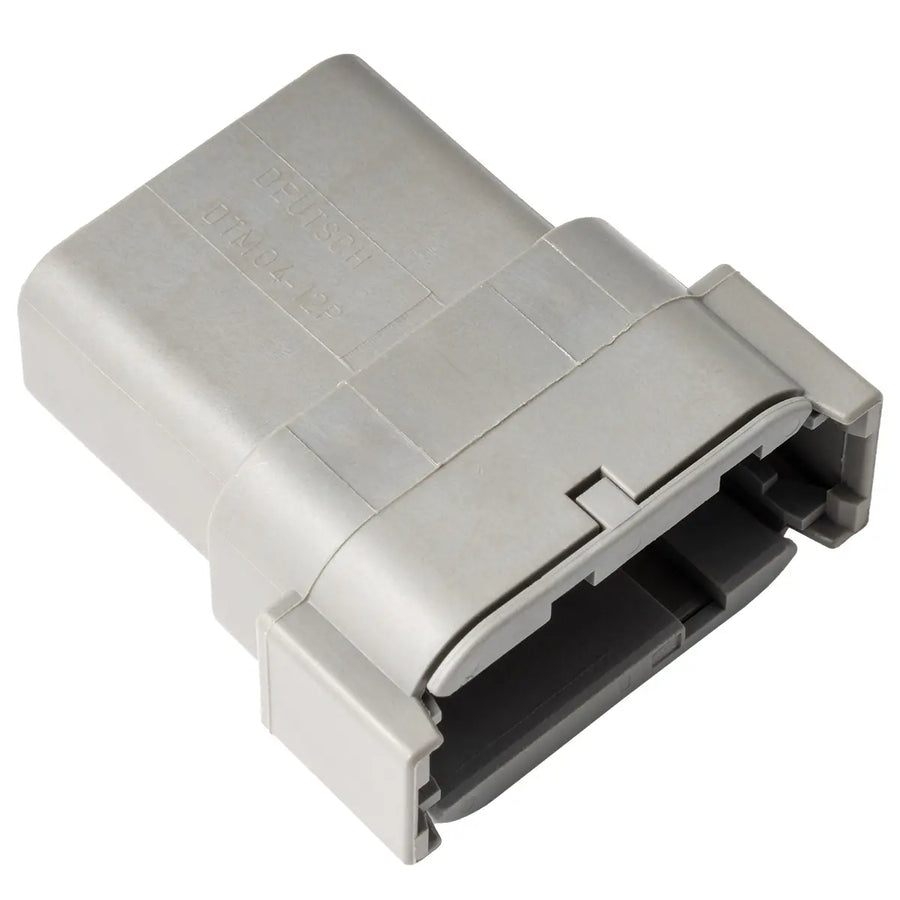

SKU: DTM04-12PA-K-G
$9.28
| Quantity | Save | Price each |
|---|
Quantity discounts are applied automatically at checkout.
SKU: DTM04-12PA-K-N
$9.04
| Quantity | Save | Price each |
|---|
Quantity discounts are applied automatically at checkout.

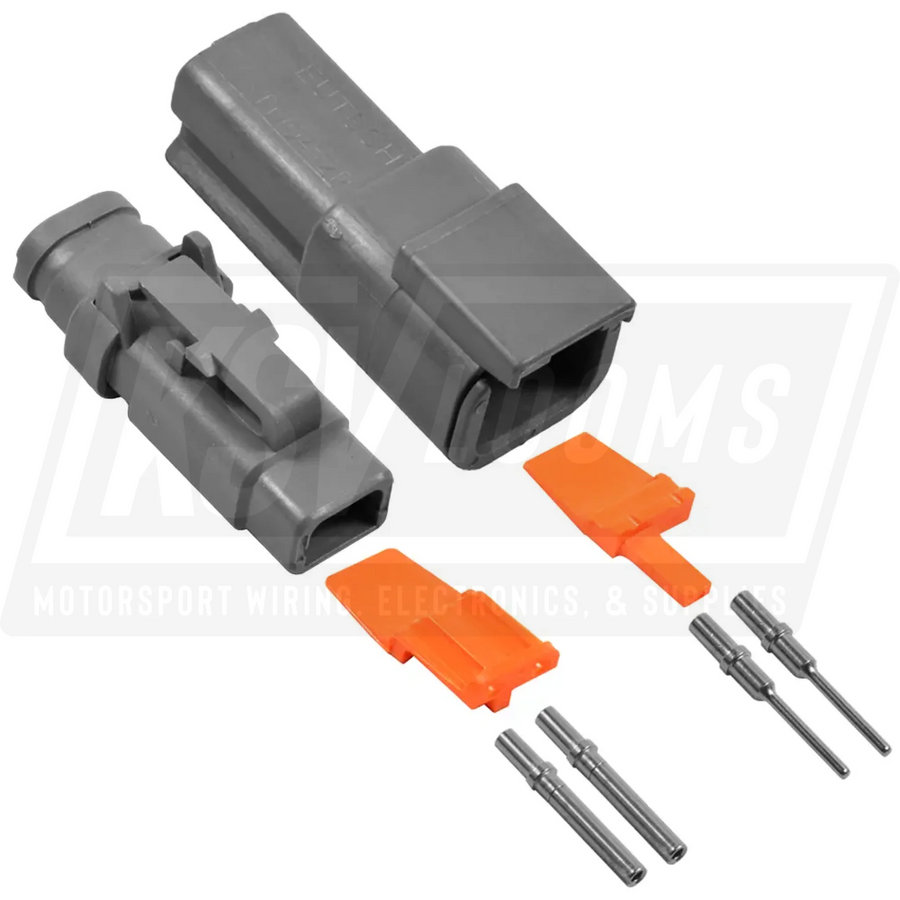

SKU: DTM2M-K-G-SB
$3.62
| Quantity | Save | Price each |
|---|
Quantity discounts are applied automatically at checkout.
SKU: DTM2M-K-N-SB
$3.62
| Quantity | Save | Price each |
|---|
Quantity discounts are applied automatically at checkout.
SKU: DTM2M-K-G
$3.04
| Quantity | Save | Price each |
|---|
Quantity discounts are applied automatically at checkout.

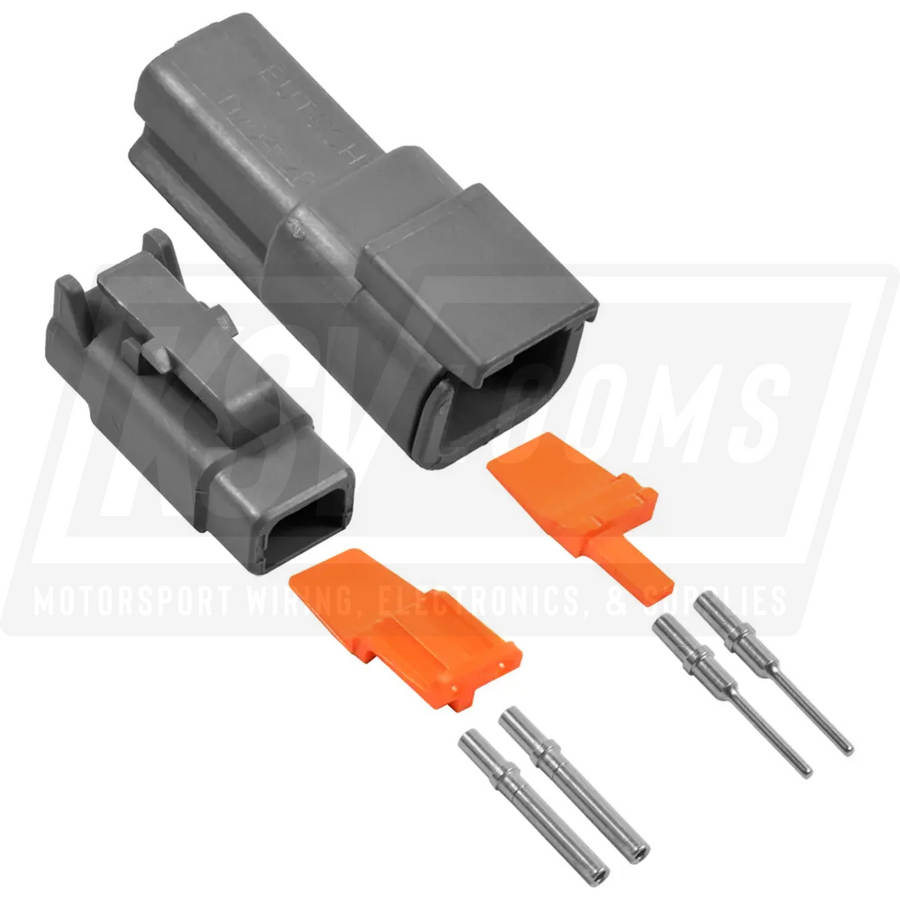

SKU: DTM2M-K-N
$3.04
| Quantity | Save | Price each |
|---|
Quantity discounts are applied automatically at checkout.

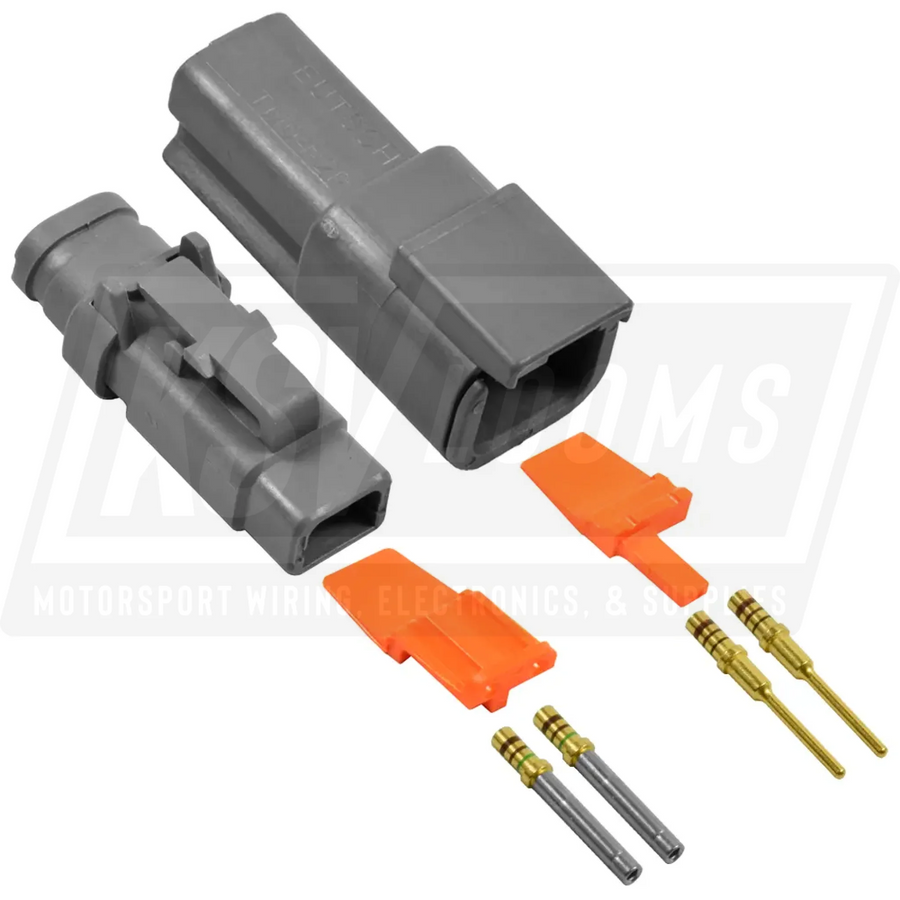

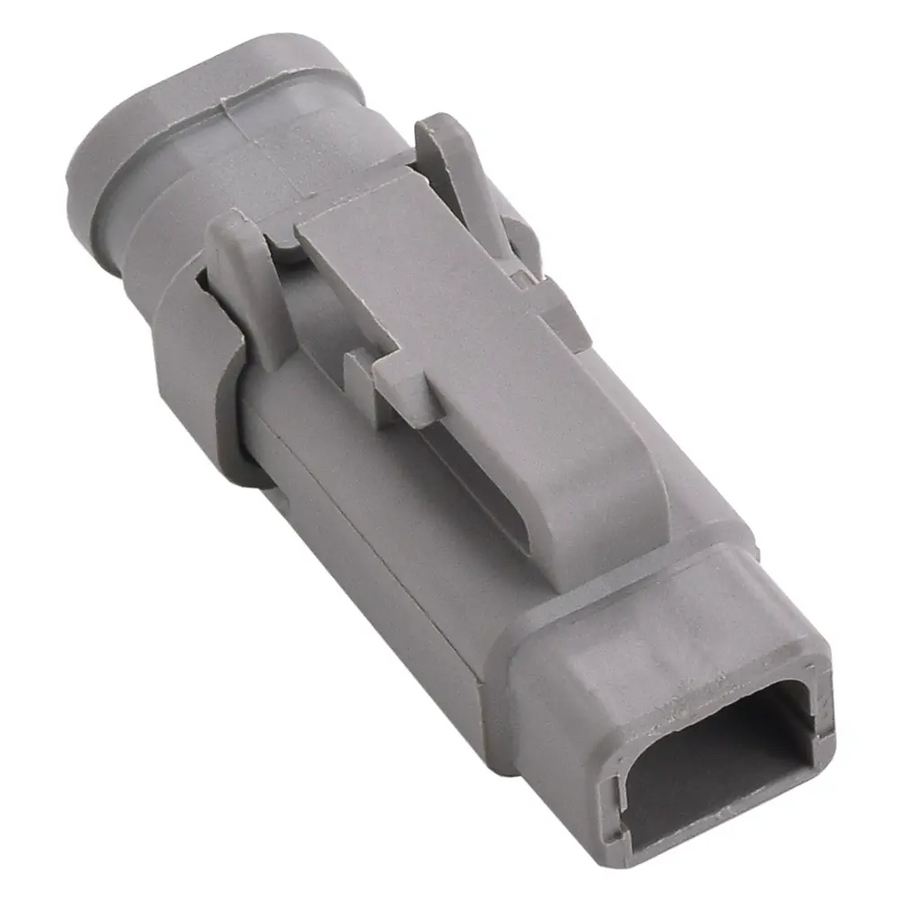

SKU: DTM06-2S-E007-K-G
$2.24
| Quantity | Save | Price each |
|---|
Quantity discounts are applied automatically at checkout.

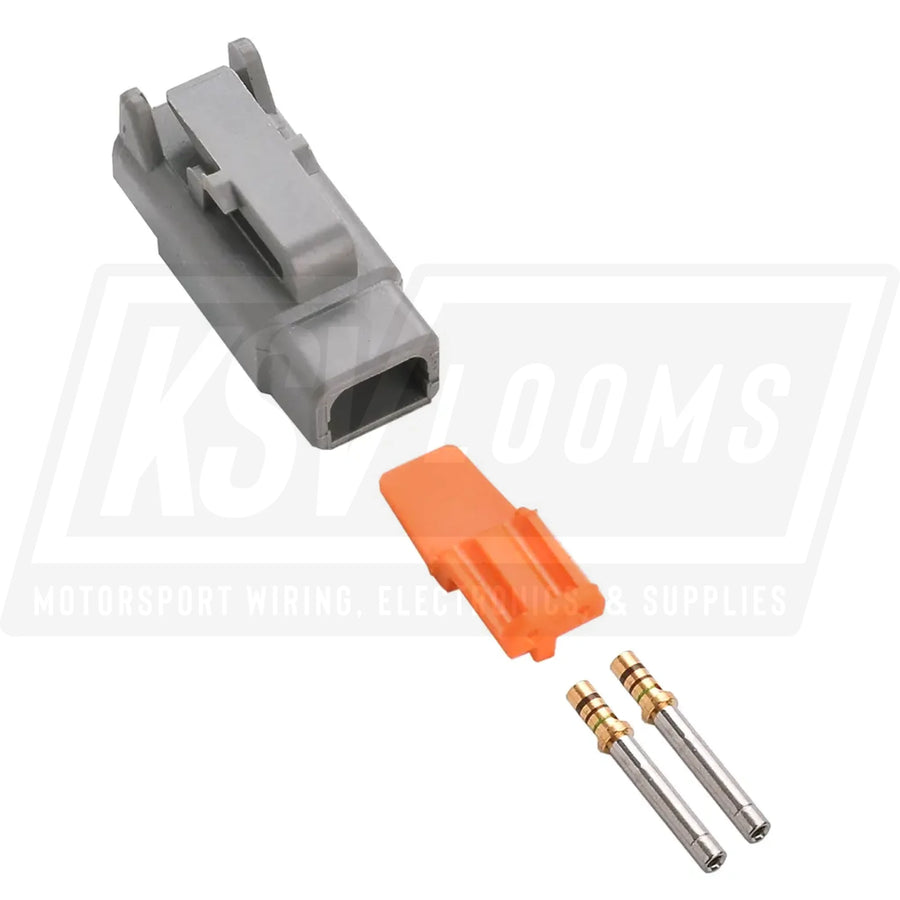

SKU: DTM06-2S-K-G
$1.66
| Quantity | Save | Price each |
|---|
Quantity discounts are applied automatically at checkout.

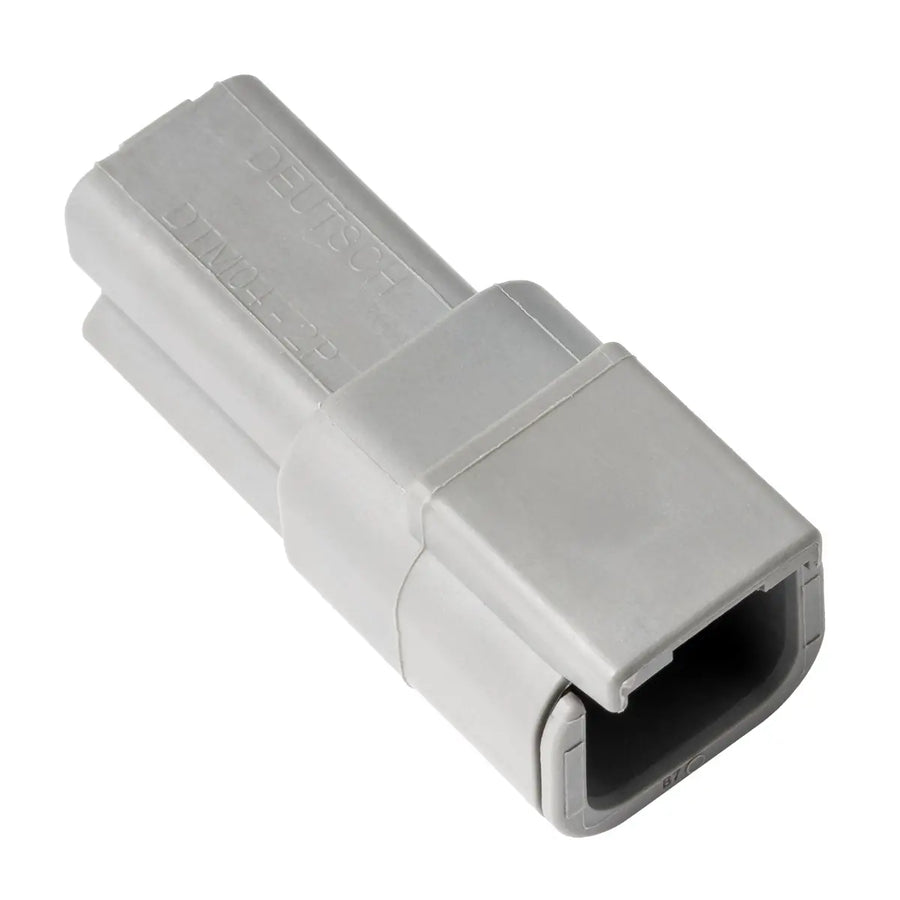

SKU: DTM04-2P-K-G
$1.52
| Quantity | Save | Price each |
|---|
Quantity discounts are applied automatically at checkout.

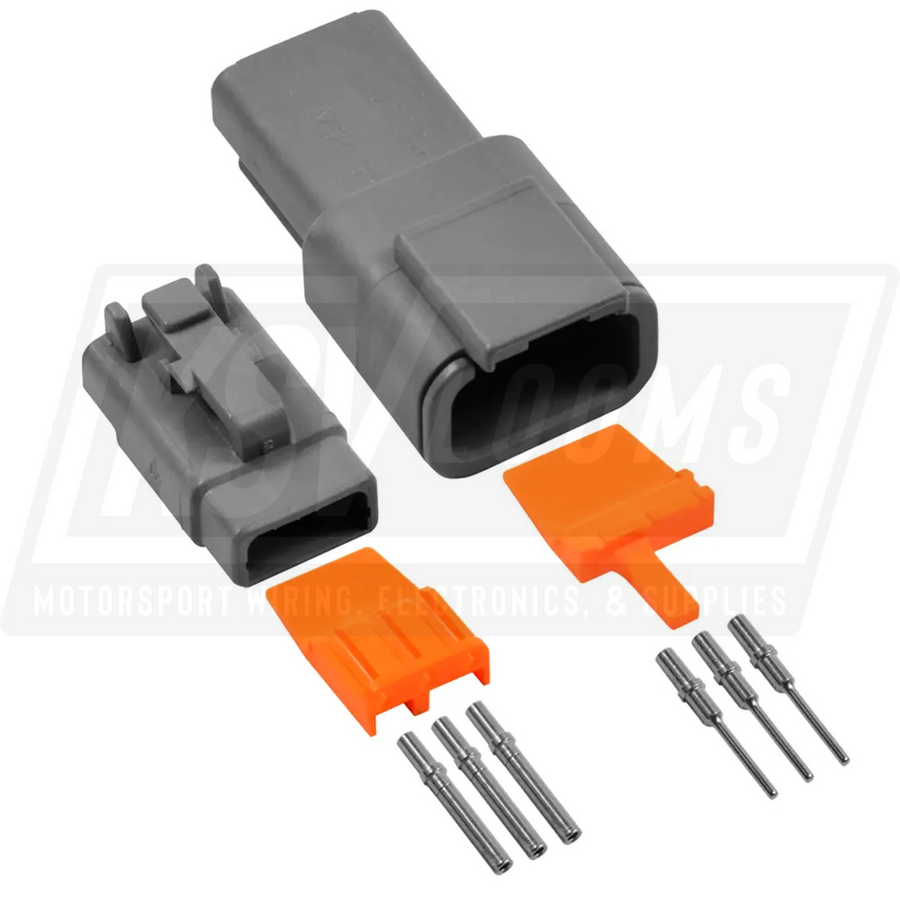

SKU: DTM3M-K-G-SB
$5.93
| Quantity | Save | Price each |
|---|
Quantity discounts are applied automatically at checkout.
SKU: DTM3M-K-N-SB
$5.93
| Quantity | Save | Price each |
|---|
Quantity discounts are applied automatically at checkout.

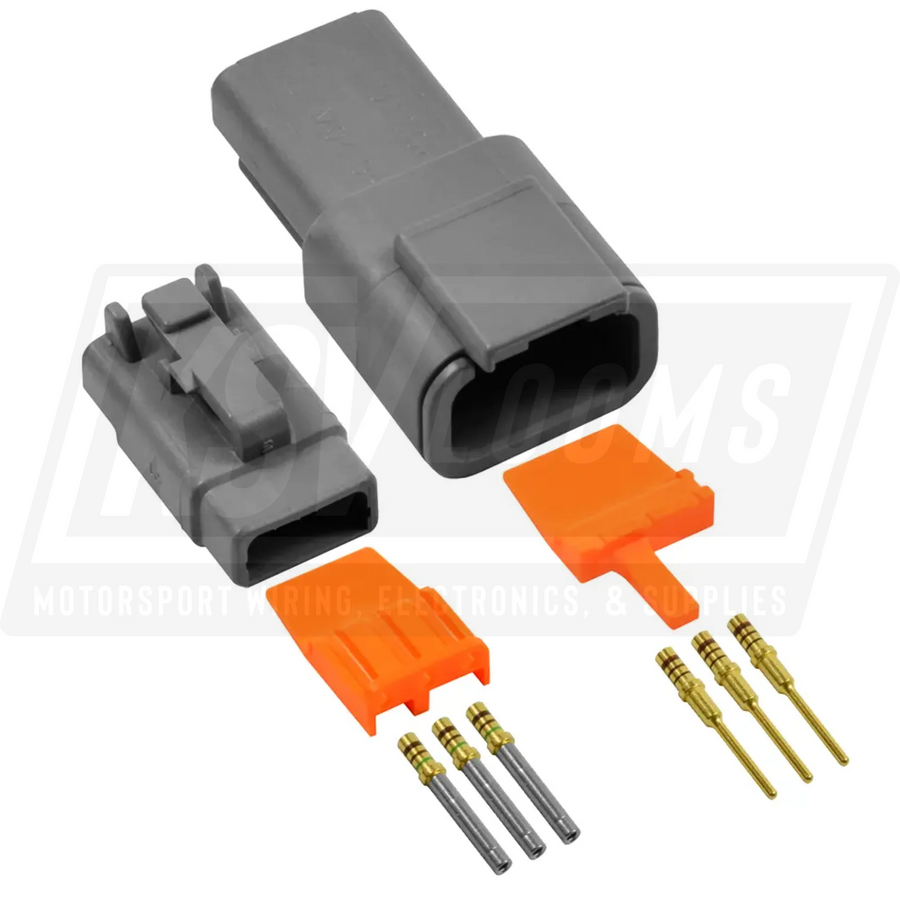

SKU: DTM3M-K-G
$5.25
| Quantity | Save | Price each |
|---|
Quantity discounts are applied automatically at checkout.
SKU: DTM3M-K-N
$5.25
| Quantity | Save | Price each |
|---|
Quantity discounts are applied automatically at checkout.

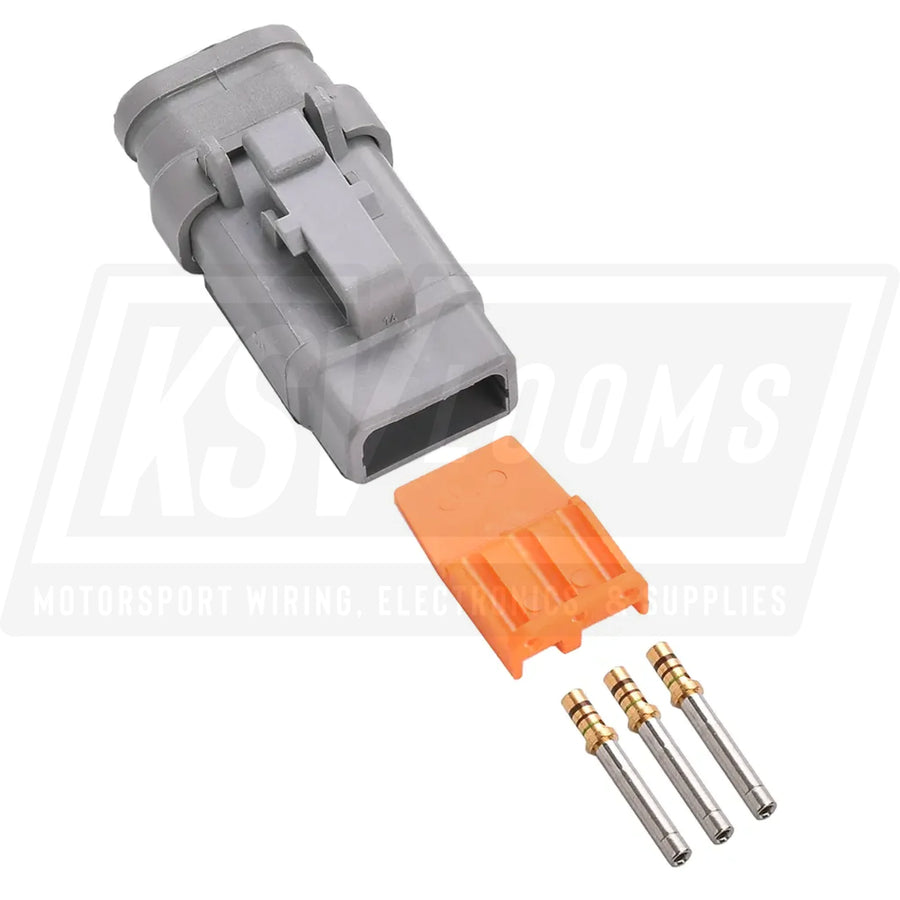

SKU: DTM06-3S-E007-K-G
$3.19
| Quantity | Save | Price each |
|---|
Quantity discounts are applied automatically at checkout.

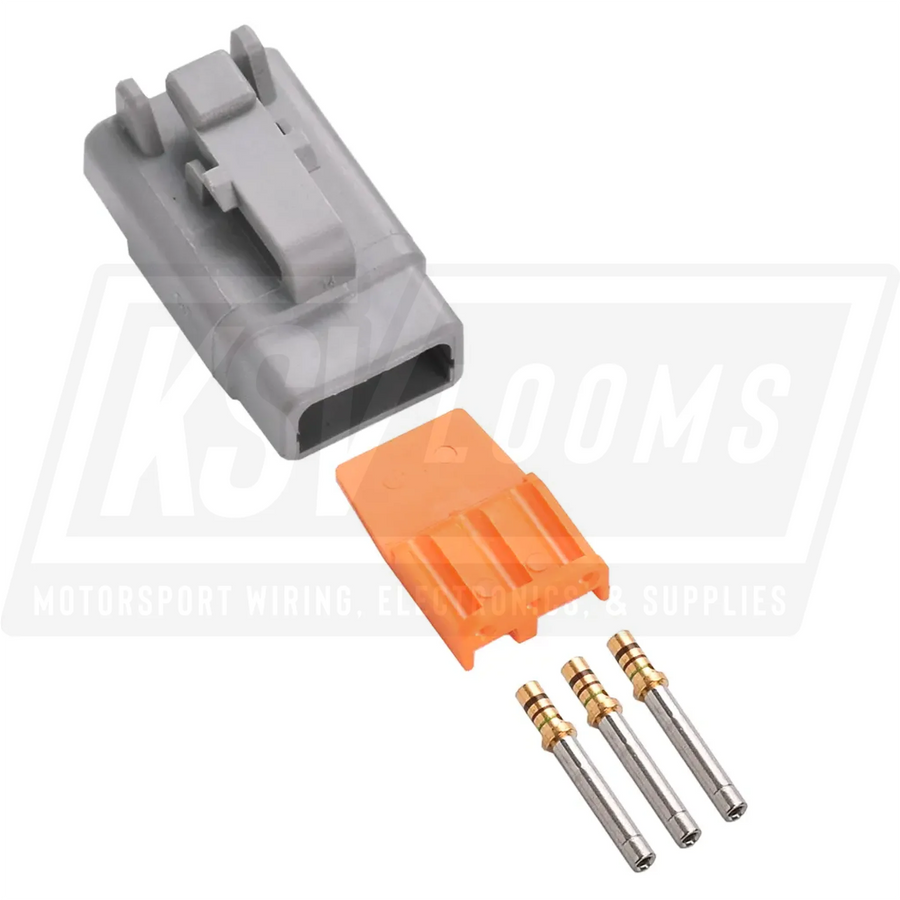

SKU: DTM06-3S-K-G
$2.51
| Quantity | Save | Price each |
|---|
Quantity discounts are applied automatically at checkout.
SKU: DTM04-3P-K-G
$2.74
| Quantity | Save | Price each |
|---|
Quantity discounts are applied automatically at checkout.
SKU: DTM04-3P-K-N
$2.68
| Quantity | Save | Price each |
|---|
Quantity discounts are applied automatically at checkout.

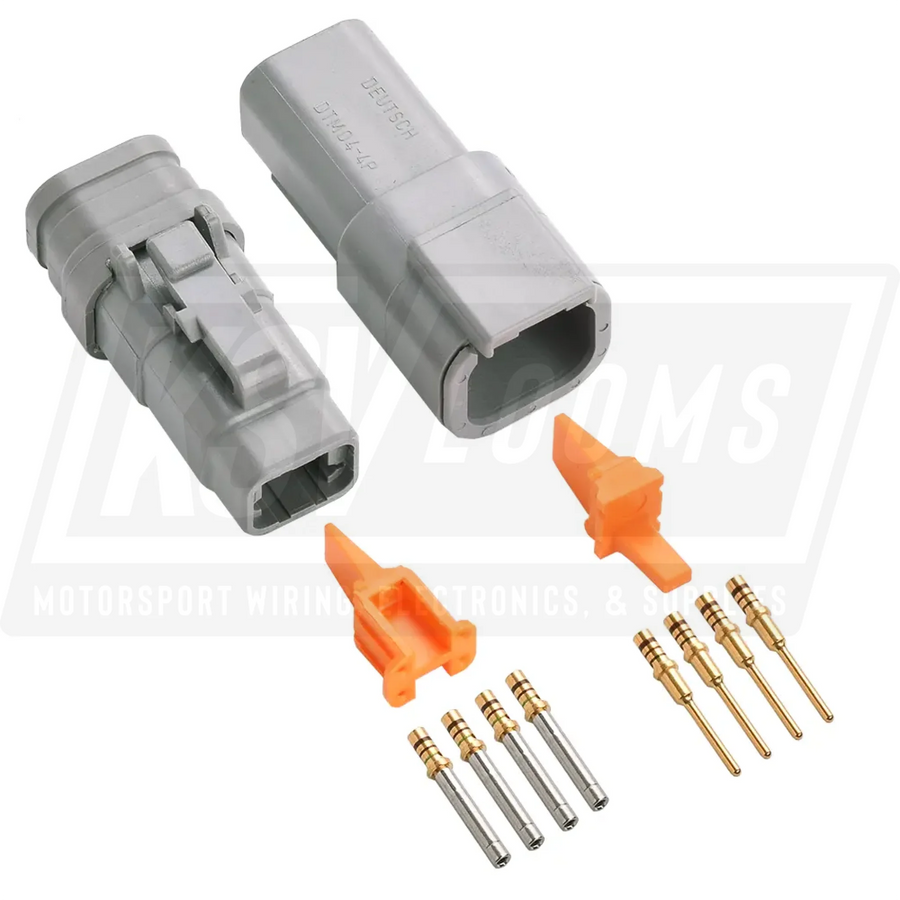

SKU: DTM4M-K-G-SB
$7.26
| Quantity | Save | Price each |
|---|
Quantity discounts are applied automatically at checkout.
SKU: DTM4M-K-N-SB
$7.26
| Quantity | Save | Price each |
|---|
Quantity discounts are applied automatically at checkout.
SKU: DTM4M-K-G
$6.88
| Quantity | Save | Price each |
|---|
Quantity discounts are applied automatically at checkout.
SKU: DTM4M-K-N
$6.88
| Quantity | Save | Price each |
|---|
Quantity discounts are applied automatically at checkout.

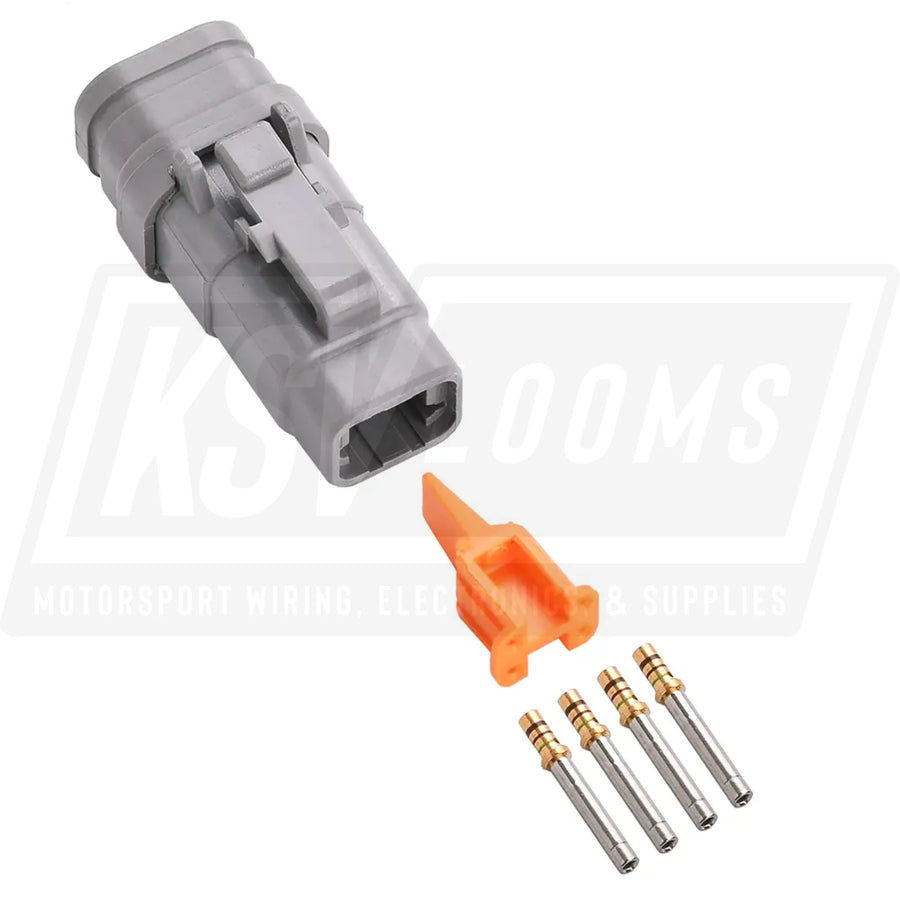

SKU: DTM06-4S-E007-K-G
$4.06
| Quantity | Save | Price each |
|---|
Quantity discounts are applied automatically at checkout.

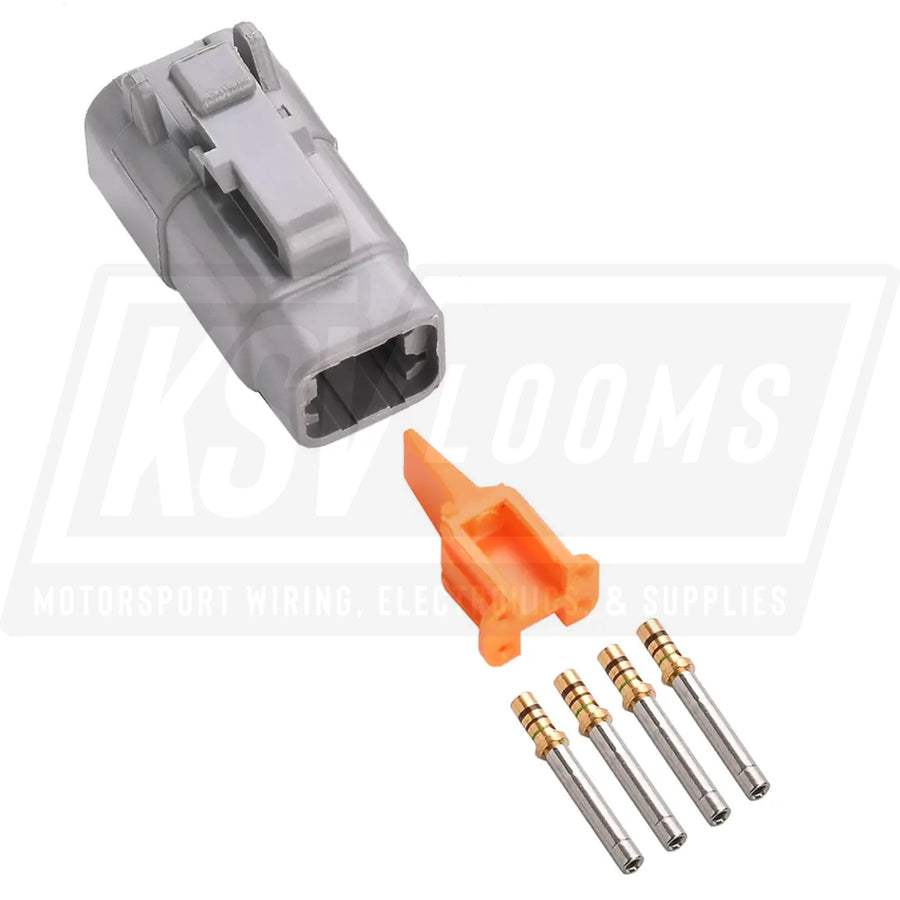

SKU: DTM06-4S-K-G
$3.68
| Quantity | Save | Price each |
|---|
Quantity discounts are applied automatically at checkout.
SKU: DTM06-4S-K-N
$3.76
| Quantity | Save | Price each |
|---|
Quantity discounts are applied automatically at checkout.

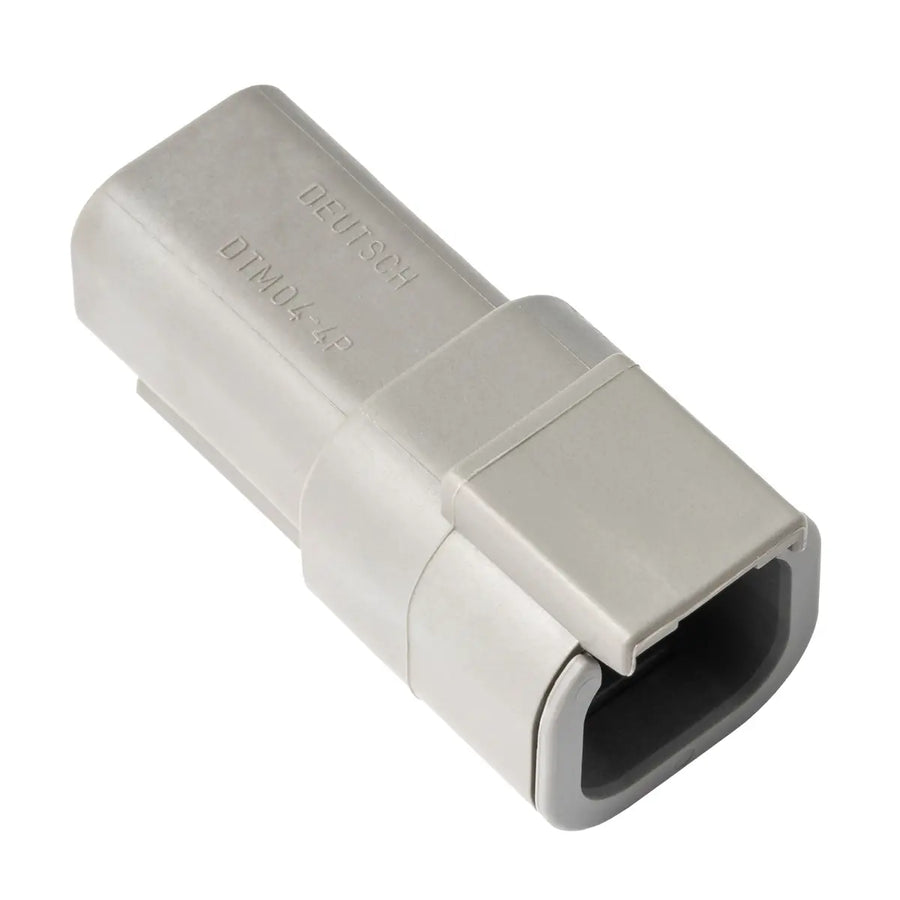

SKU: DTM04-4P-K-G
$3.20
| Quantity | Save | Price each |
|---|
Quantity discounts are applied automatically at checkout.

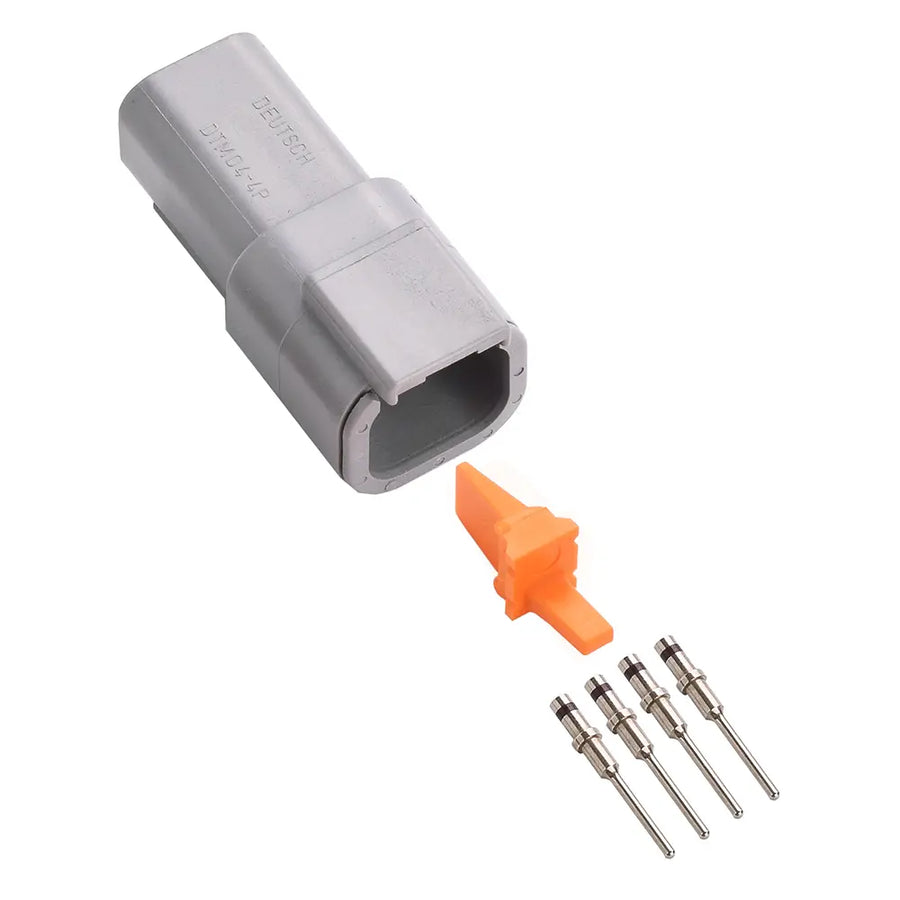

SKU: DTM04-4P-K-N
$3.12
| Quantity | Save | Price each |
|---|
Quantity discounts are applied automatically at checkout.
SKU: DTM6M-K-G-SB
$10.74
| Quantity | Save | Price each |
|---|
Quantity discounts are applied automatically at checkout.
SKU: DTM6M-K-G
$9.96
| Quantity | Save | Price each |
|---|
Quantity discounts are applied automatically at checkout.
SKU: DTM6M-K-N
$9.96
| Quantity | Save | Price each |
|---|
Quantity discounts are applied automatically at checkout.

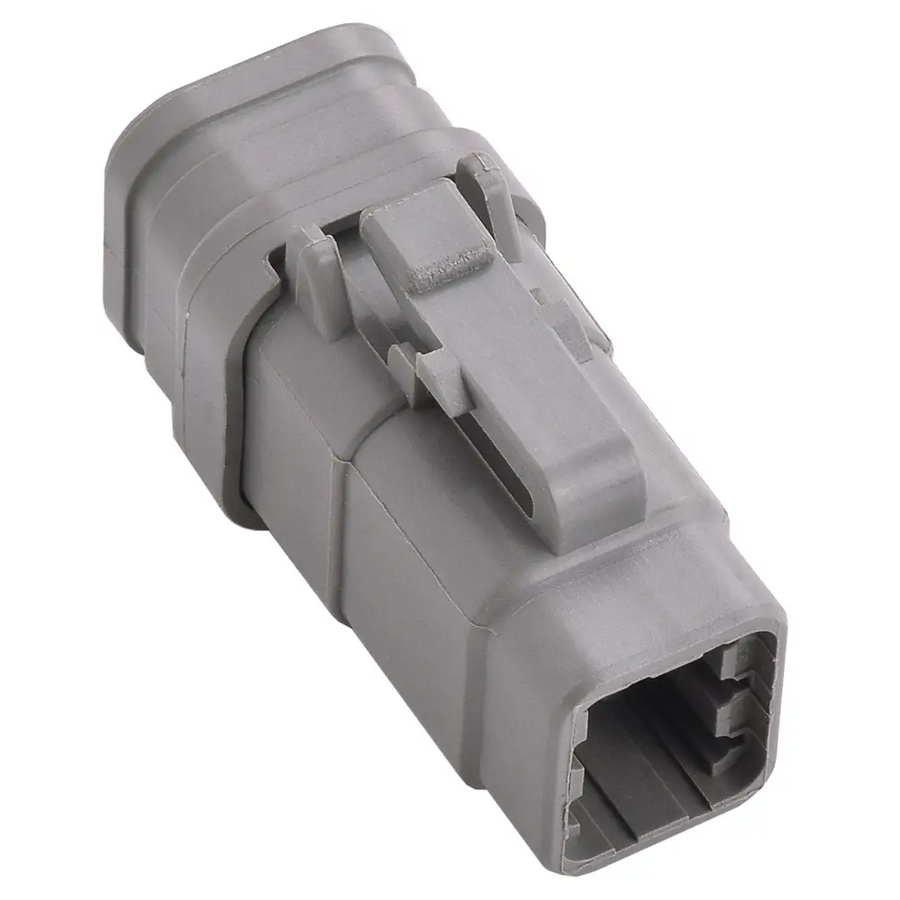

SKU: DTM06-6S-E007-K-G
$5.64
| Quantity | Save | Price each |
|---|
Quantity discounts are applied automatically at checkout.
SKU: DTM06-6S-K-G
$4.86
| Quantity | Save | Price each |
|---|
Quantity discounts are applied automatically at checkout.

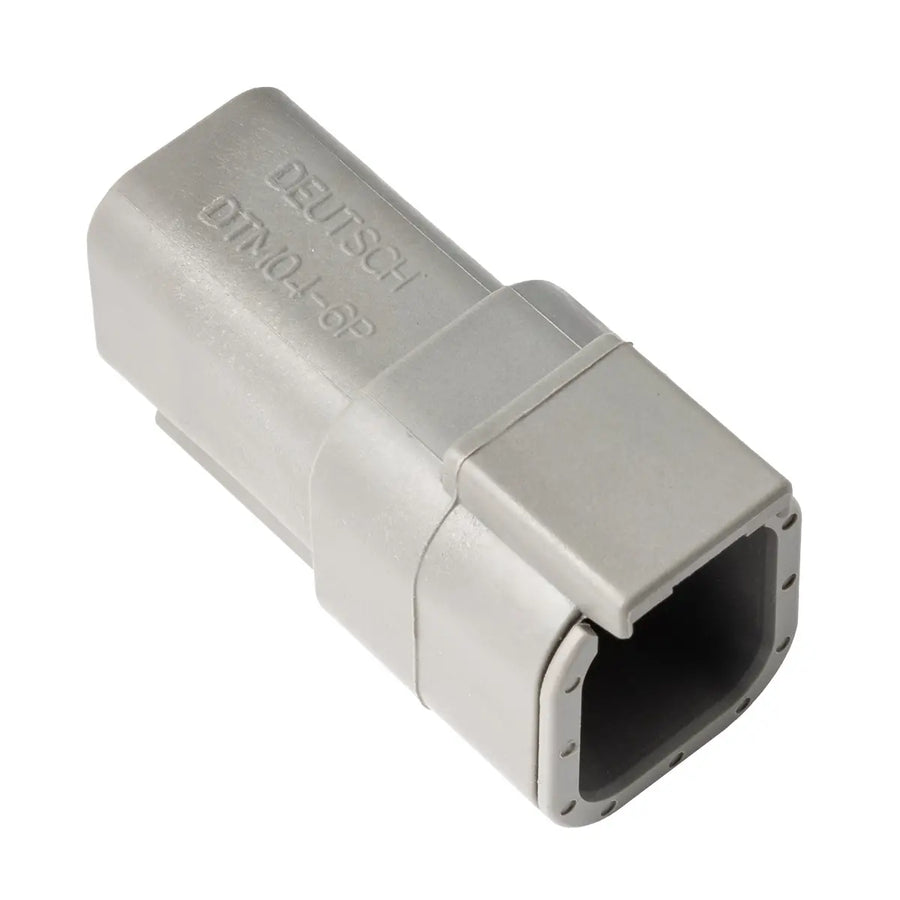

SKU: DTM04-6P-K-G
$5.10
| Quantity | Save | Price each |
|---|
Quantity discounts are applied automatically at checkout.

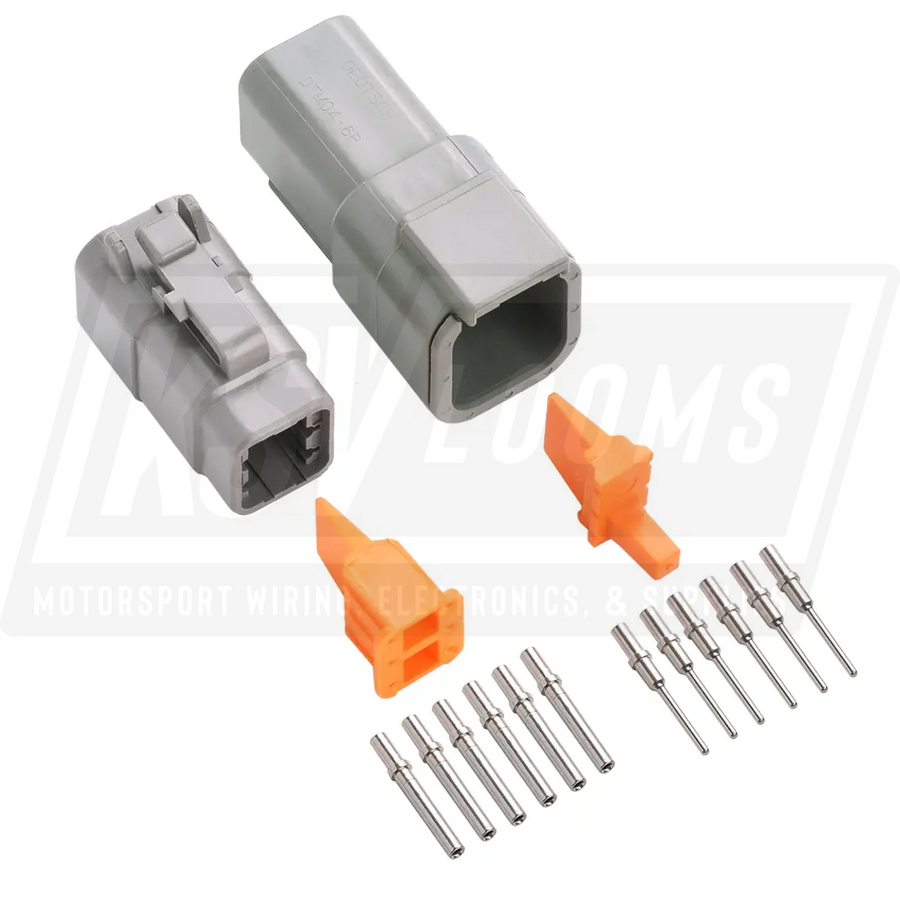

SKU: DTM04-6P-K-N
$4.98
| Quantity | Save | Price each |
|---|
Quantity discounts are applied automatically at checkout.
SKU: DTM8M-K-G-SB
$13.47
| Quantity | Save | Price each |
|---|
Quantity discounts are applied automatically at checkout.

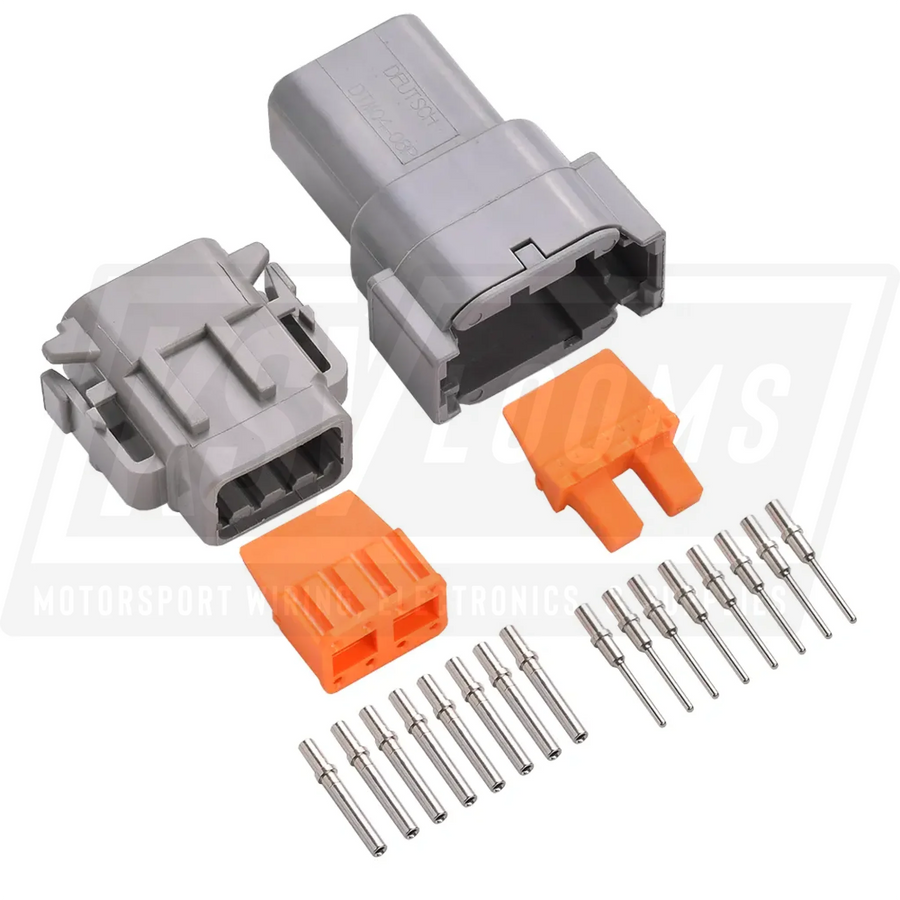

SKU: DTM8M-K-G
$14.94
| Quantity | Save | Price each |
|---|
Quantity discounts are applied automatically at checkout.
SKU: DTM8M-K-N
$14.94
| Quantity | Save | Price each |
|---|
Quantity discounts are applied automatically at checkout.

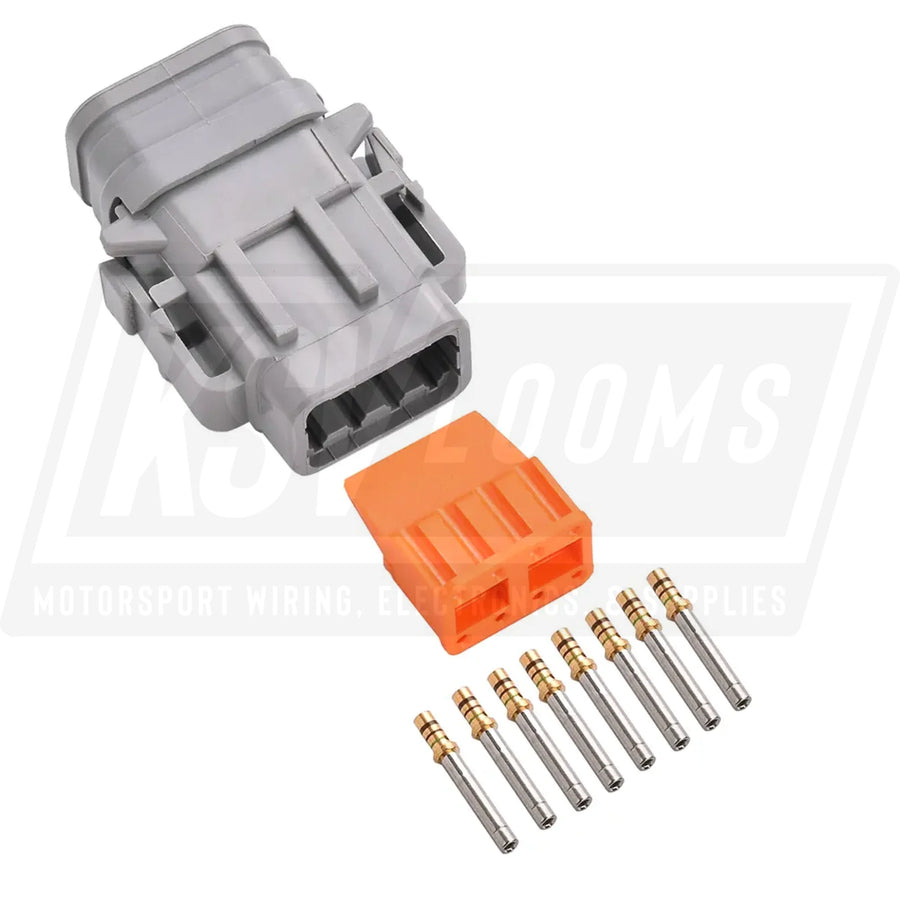

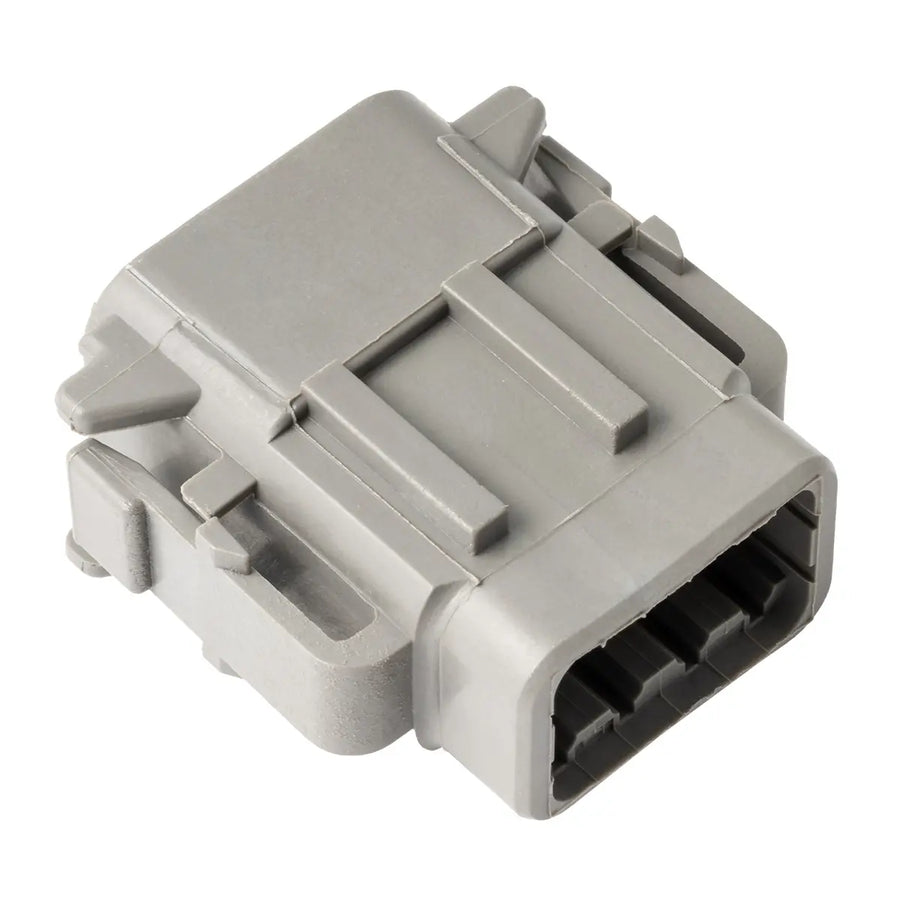

SKU: DTM06-08SA-E007-K-G
$6.67
| Quantity | Save | Price each |
|---|
Quantity discounts are applied automatically at checkout.

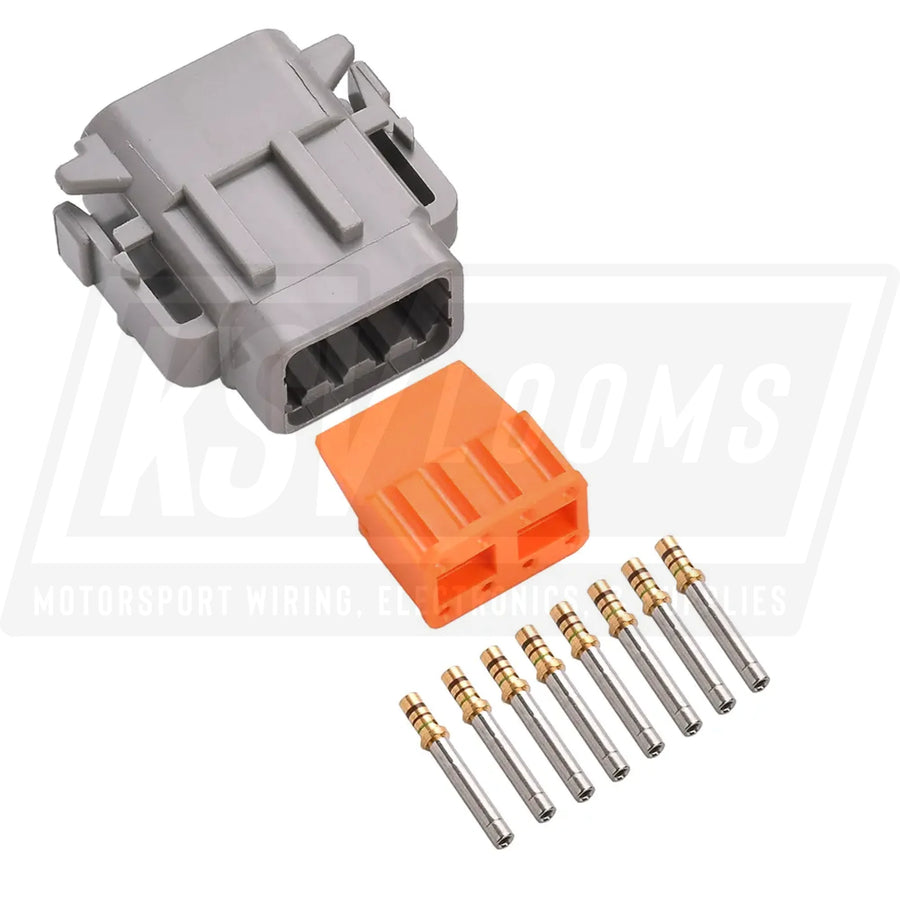

SKU: DTM06-08SA-K-G
$8.14
| Quantity | Save | Price each |
|---|
Quantity discounts are applied automatically at checkout.
SKU: DTM04-8P-K-G
$6.80
| Quantity | Save | Price each |
|---|
Quantity discounts are applied automatically at checkout.
SKU: DTM04-8P-K-N
$6.64
| Quantity | Save | Price each |
|---|
Quantity discounts are applied automatically at checkout.
Reference and assembly
Specifications, terminology, and contact-service instructions for Deutsch DTM connectors.
| Series | Number of ways | Wire range | Maximum amps per contact | Contact size |
|---|---|---|---|---|
| DTM | 2, 3, 4, 6, 8, and 12 | 24–20 AWG | 7.5 A | 20 |
| Kit type | Description |
|---|---|

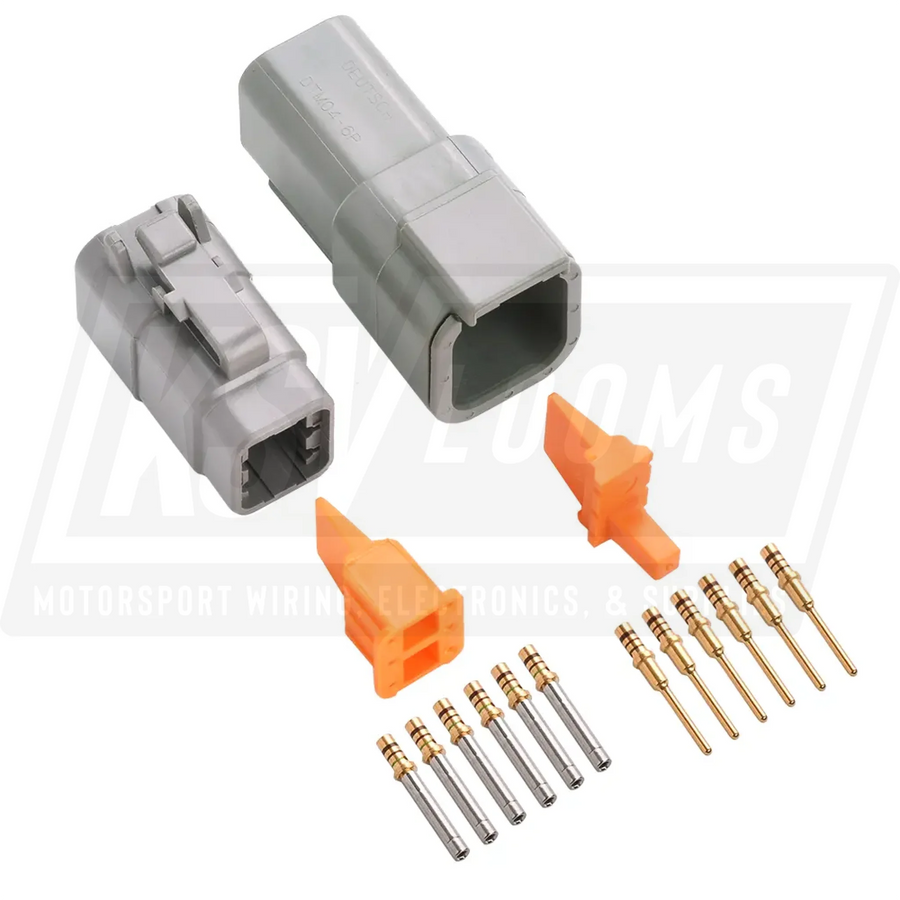

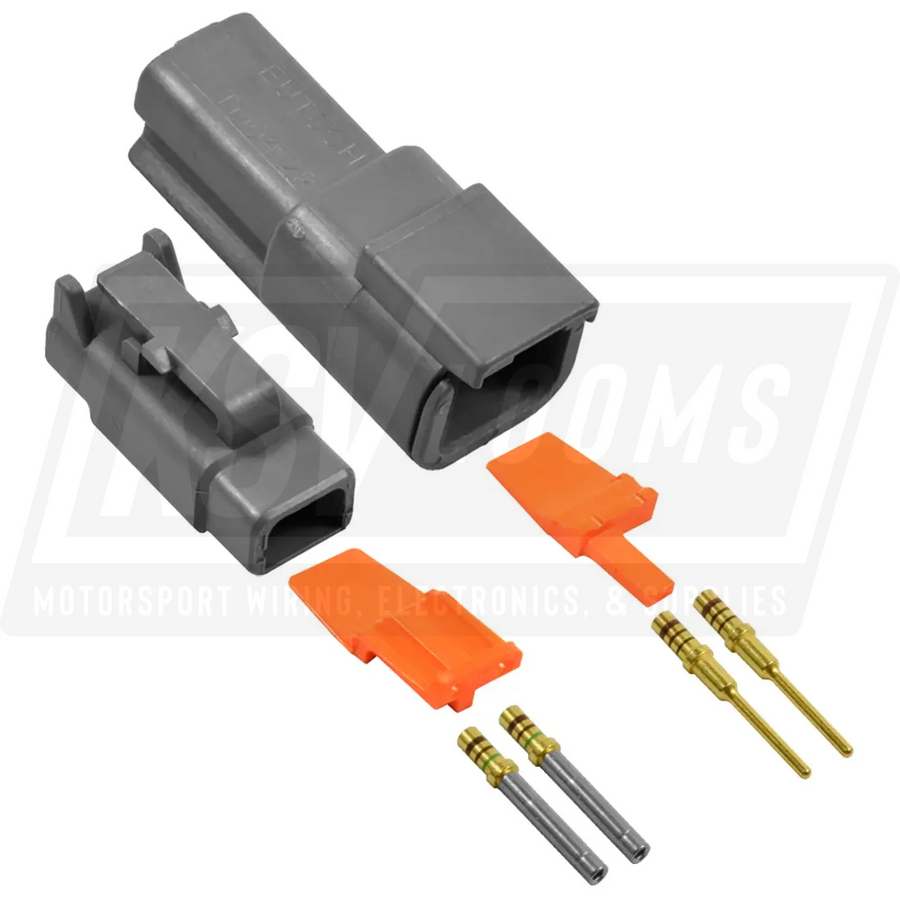

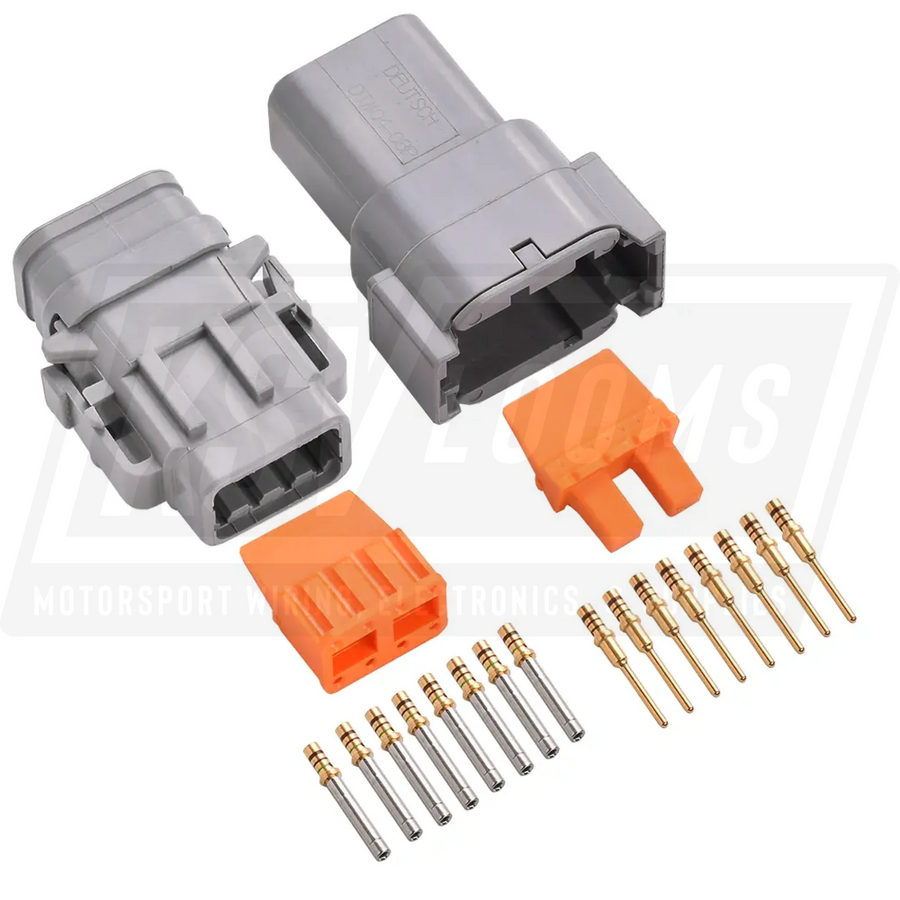

| Mated kit | Plug and receptacle with contacts and wedgelocks |

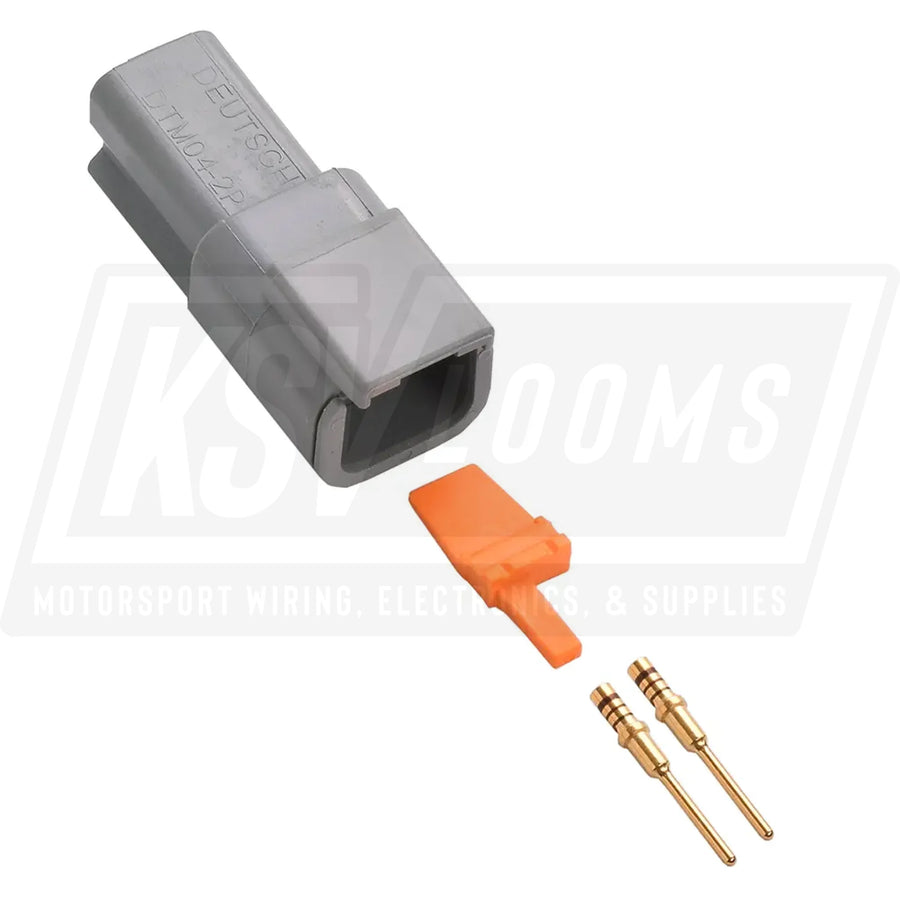

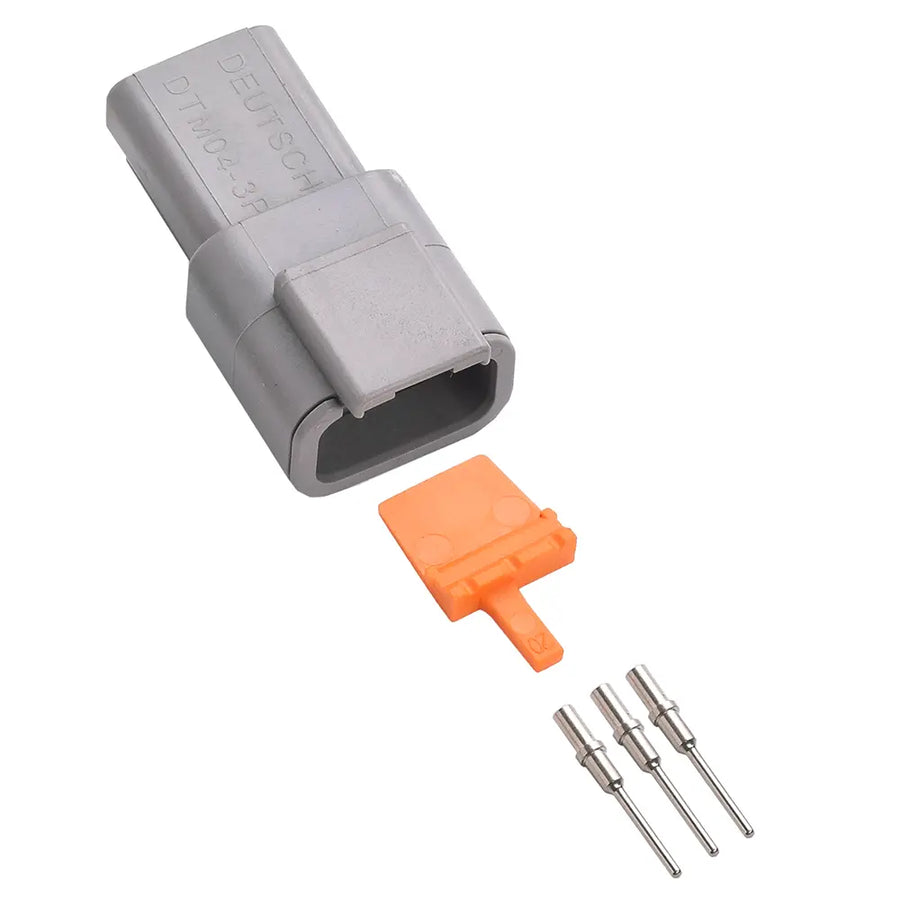

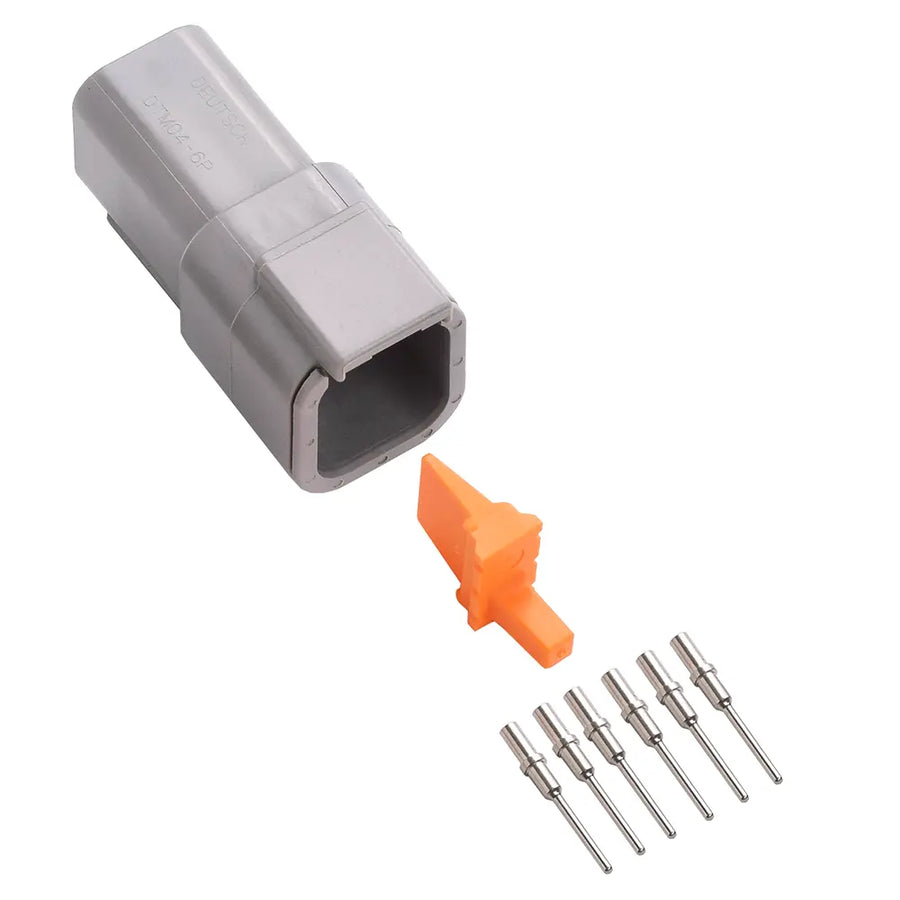

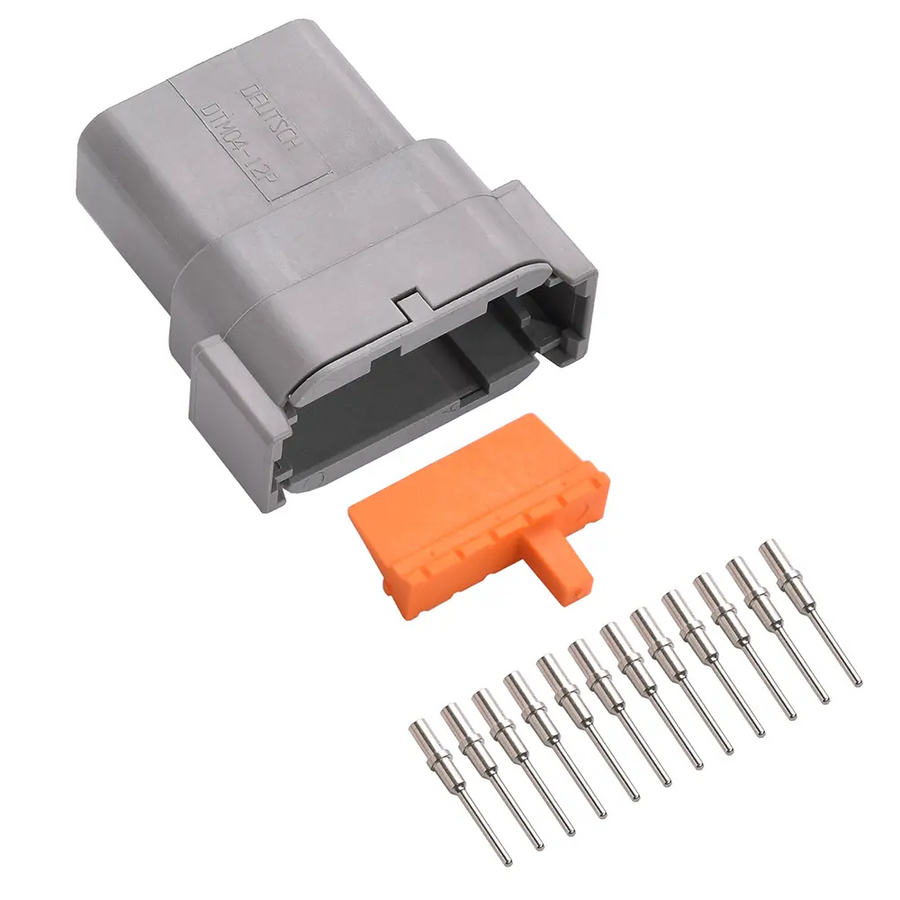

| Receptacle kit | Receptacle connector with pin contacts and wedgelock |

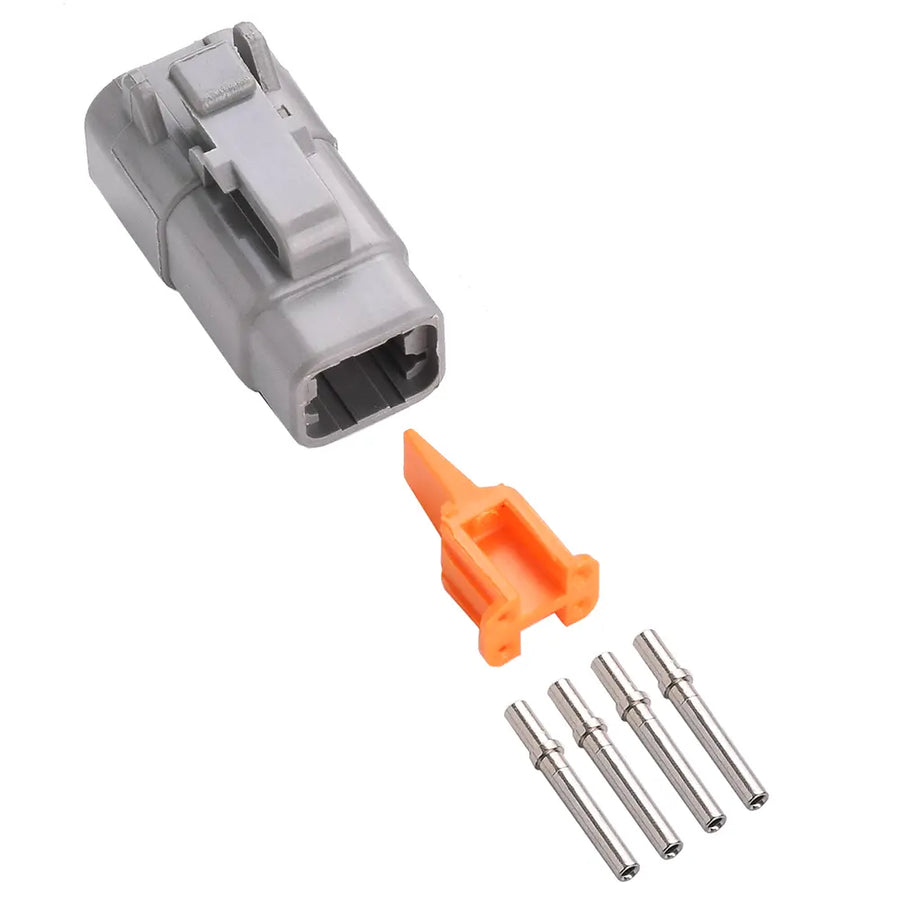

| Plug kit | Plug connector with socket contacts and wedgelock |
| Style | Description |
|---|---|
| Standard | Standard DTM plug housing |

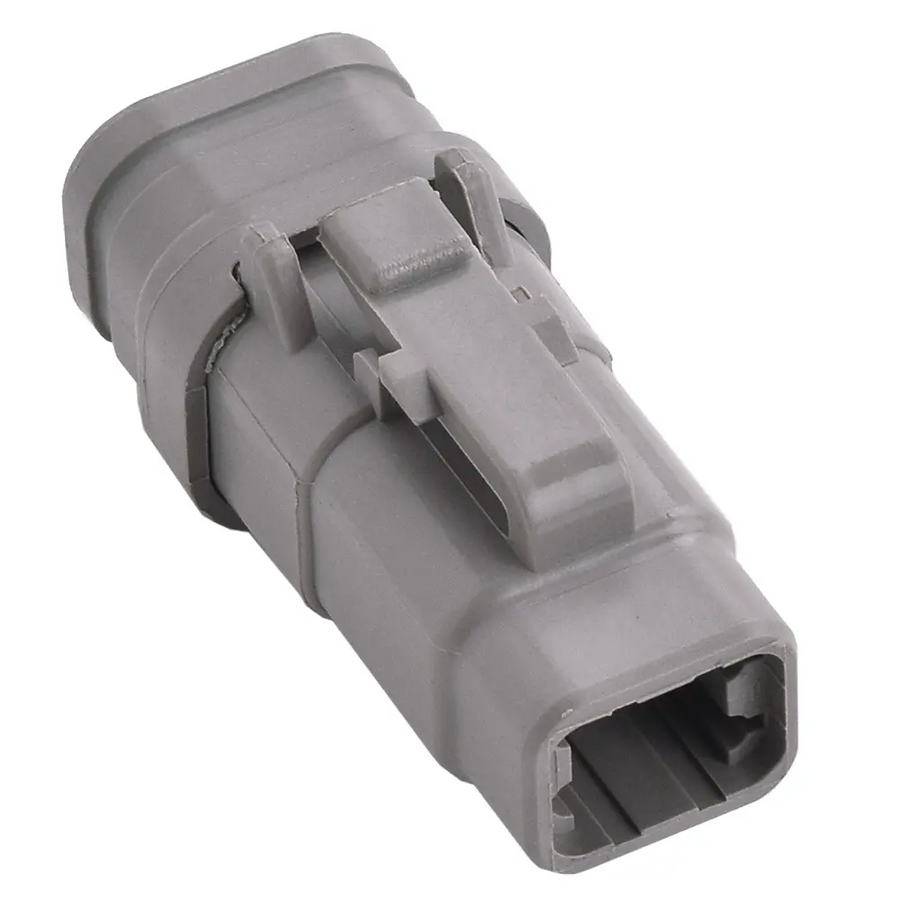

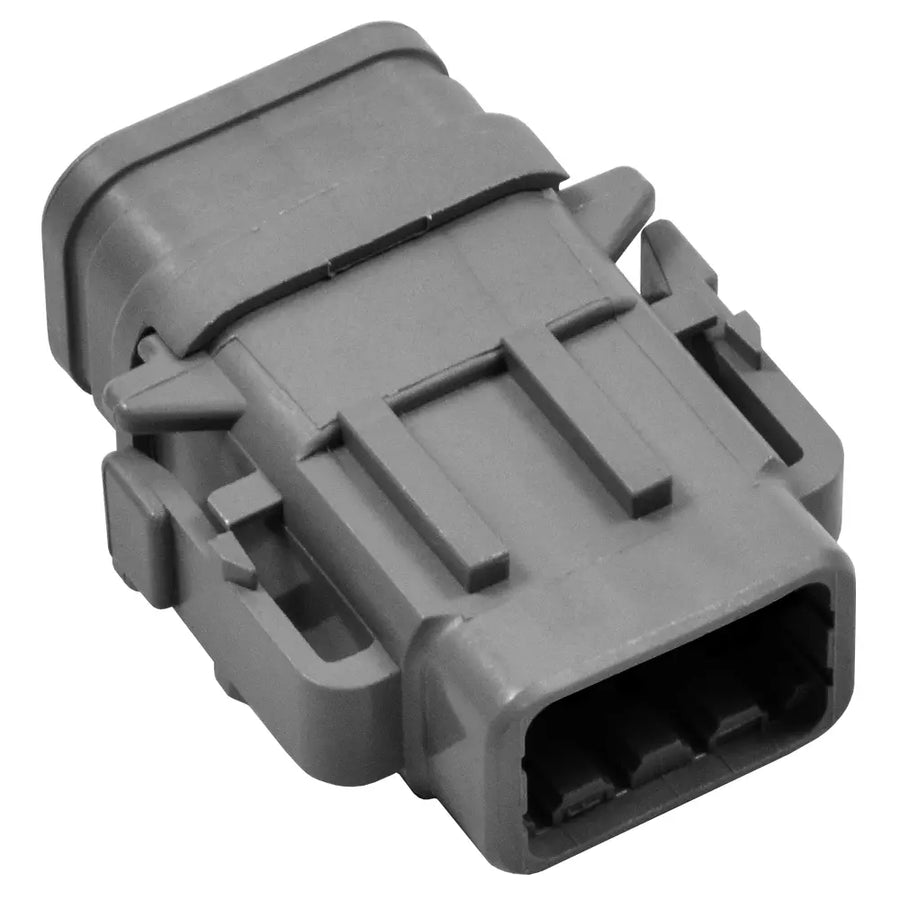

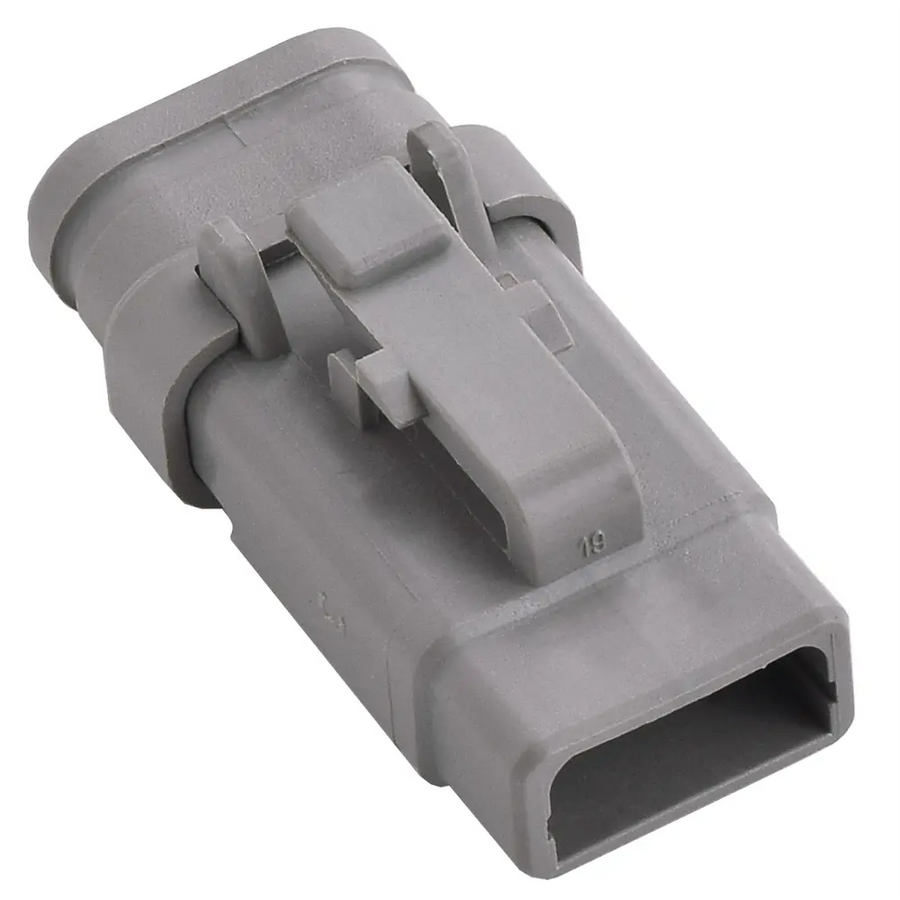

| E007 | DTM plug housing with a shrink-boot lip |
Housing style applies to the plug side of plug and mated kits.
| Type | Description |
|---|---|

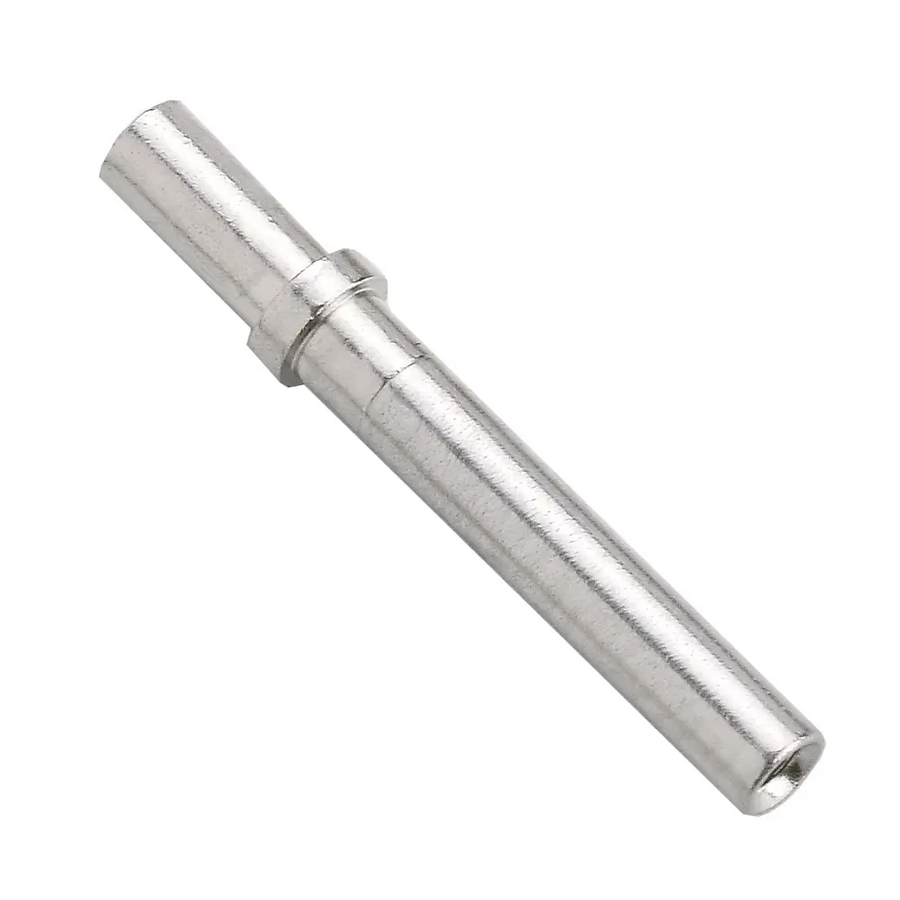

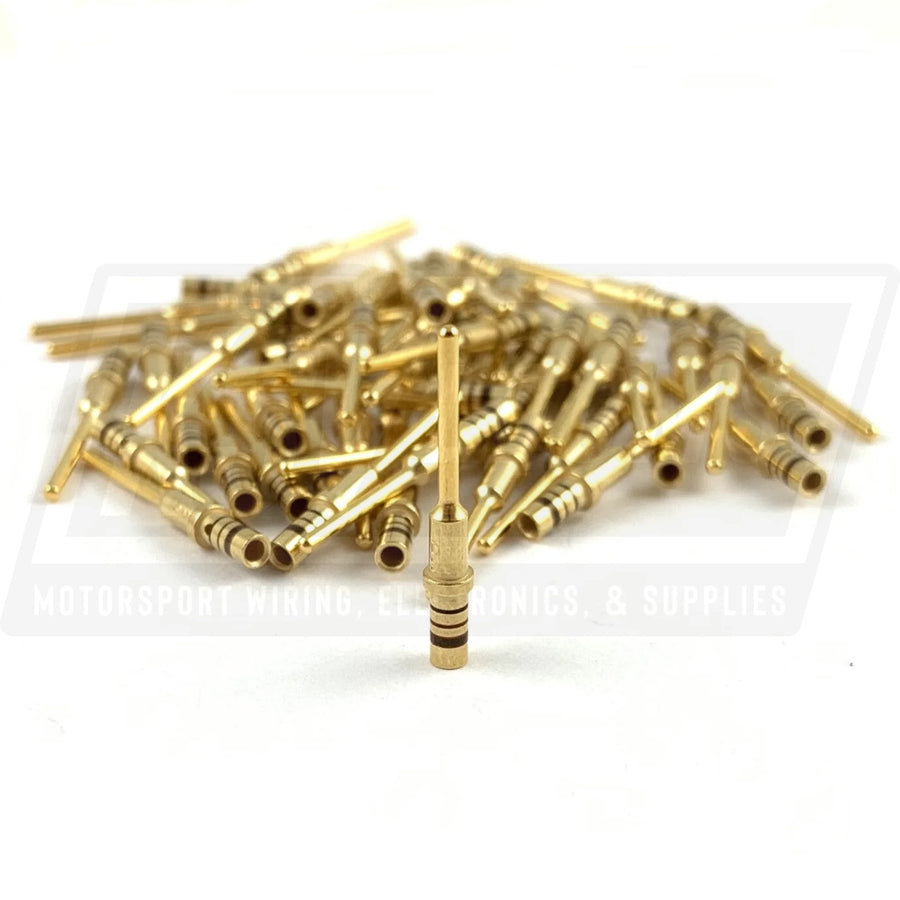

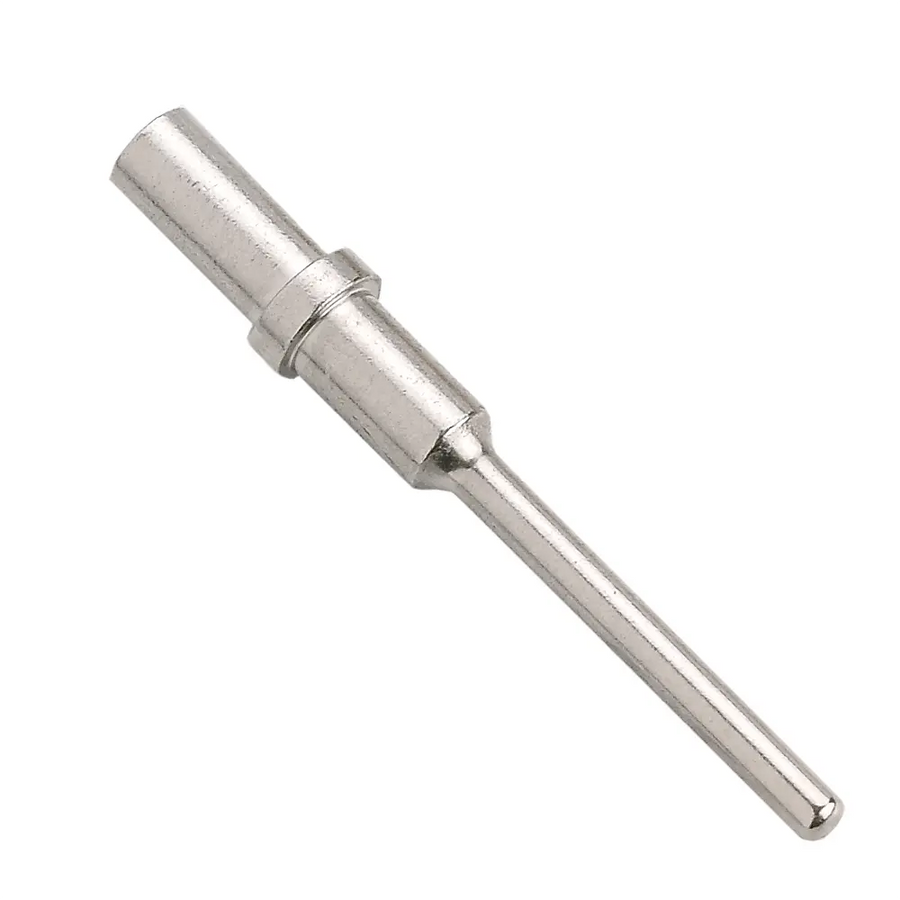

| Solid | Machined size 20 contacts intended for an 8-way or 4-way indent crimp tool |
| Plating | Description |
|---|---|

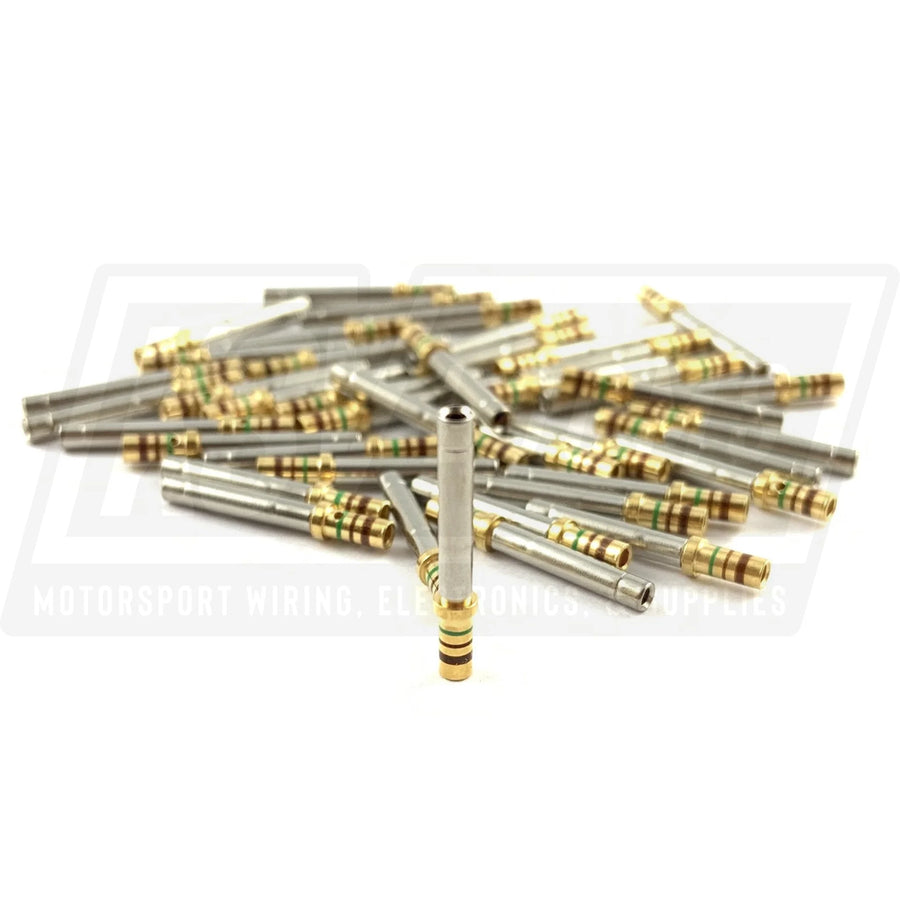

| Gold | Gold-plated solid contacts for improved performance in extreme conditions |
| Nickel | Nickel-plated solid contacts |
| Color | Description |
|---|---|
| Gray | Standard keyway orientation for DTM |
Select a DTM connector housing below to view its illustrated guide for contact insertion, removal, and wedgelock installation.
Contact insertion

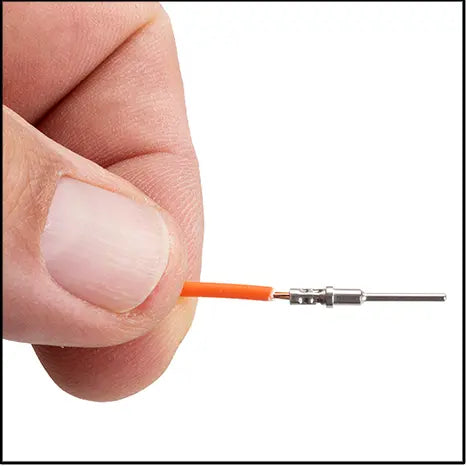

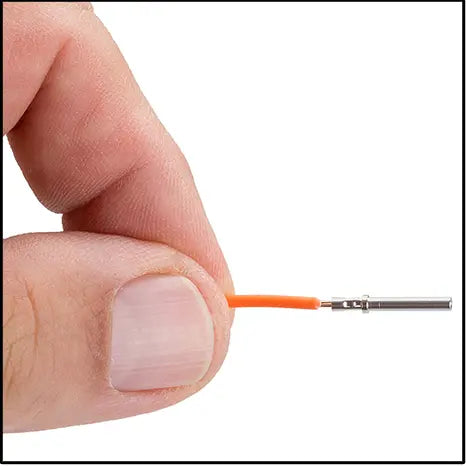

Hold the crimped contact approximately one inch behind the contact barrel.
Contact insertion

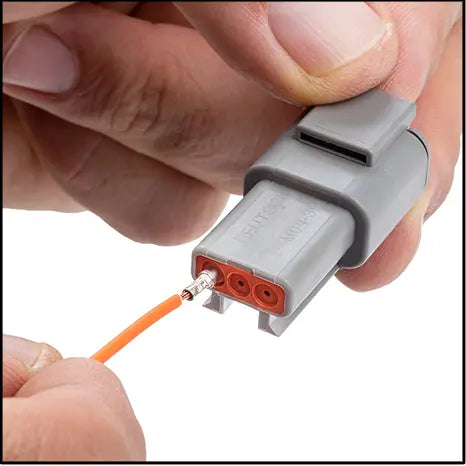

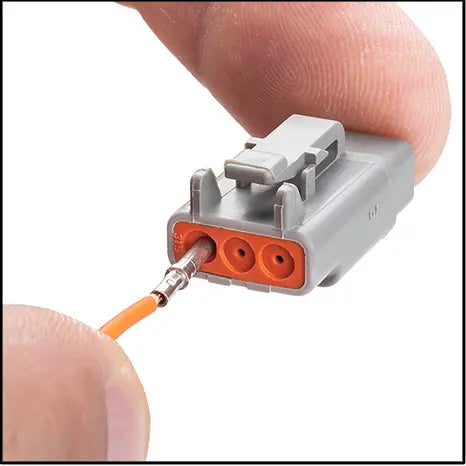

Orient the connector with the rear grommet facing you.
Contact insertion

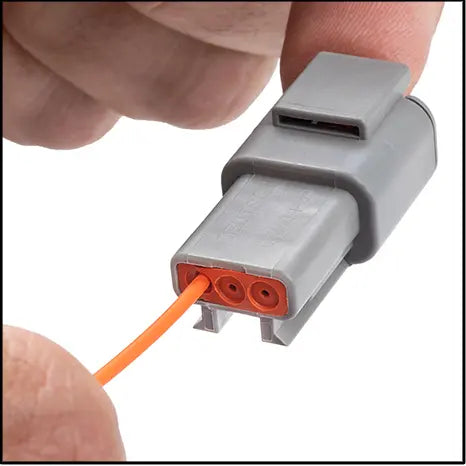

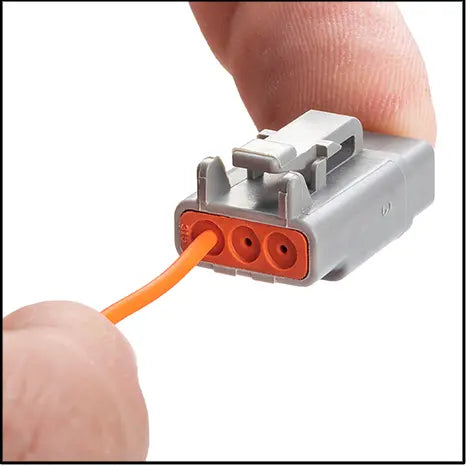

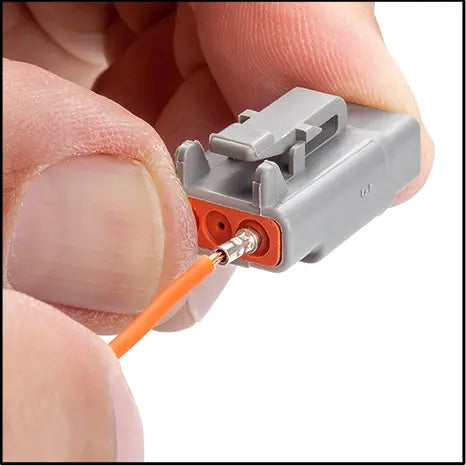

Push the contact straight through the rear grommet until it clicks. Gently tug the wire to confirm that the contact is locked.
Contact insertion

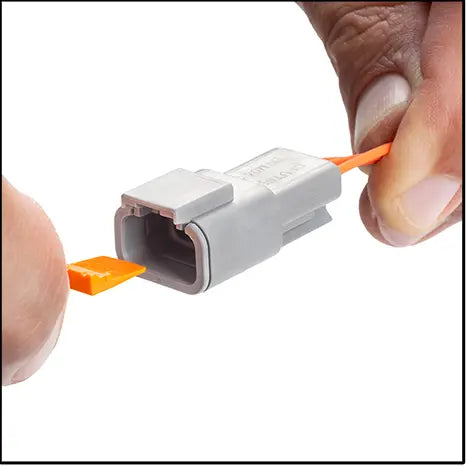

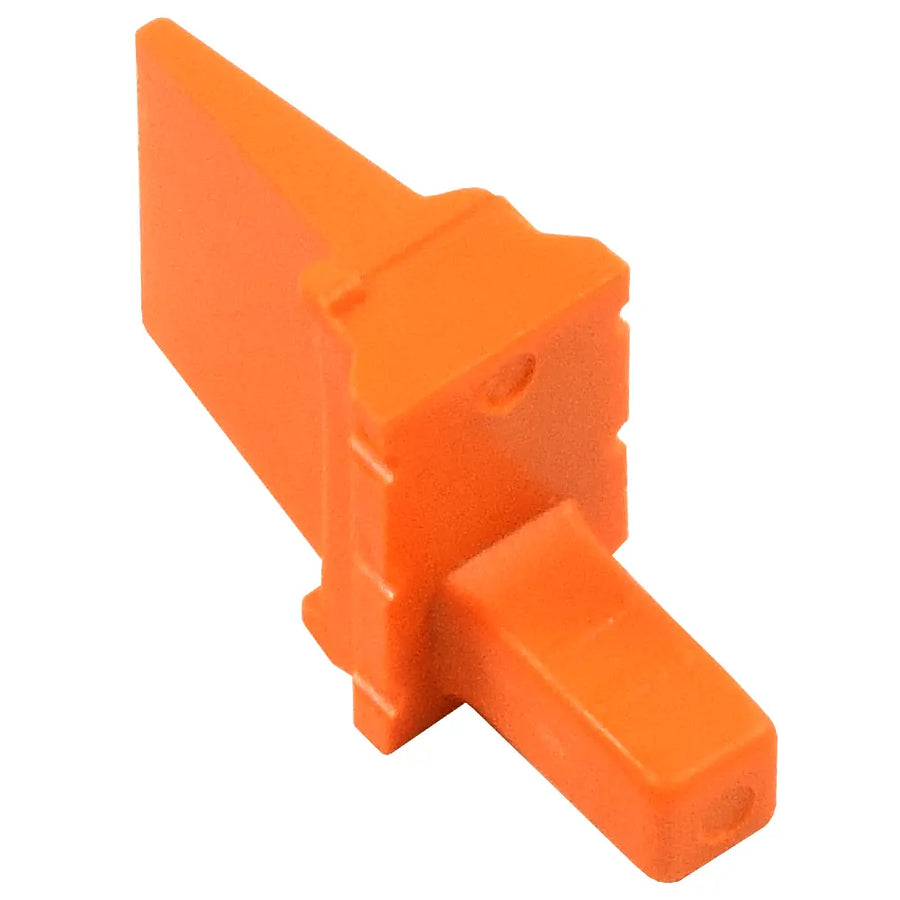

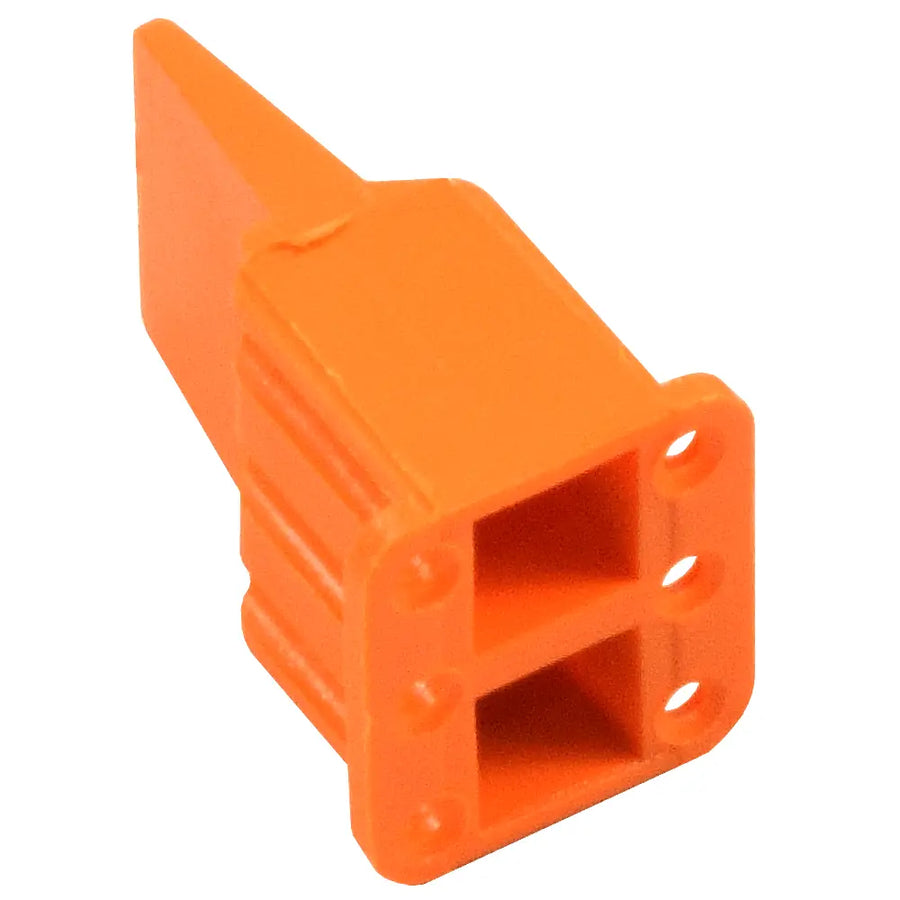

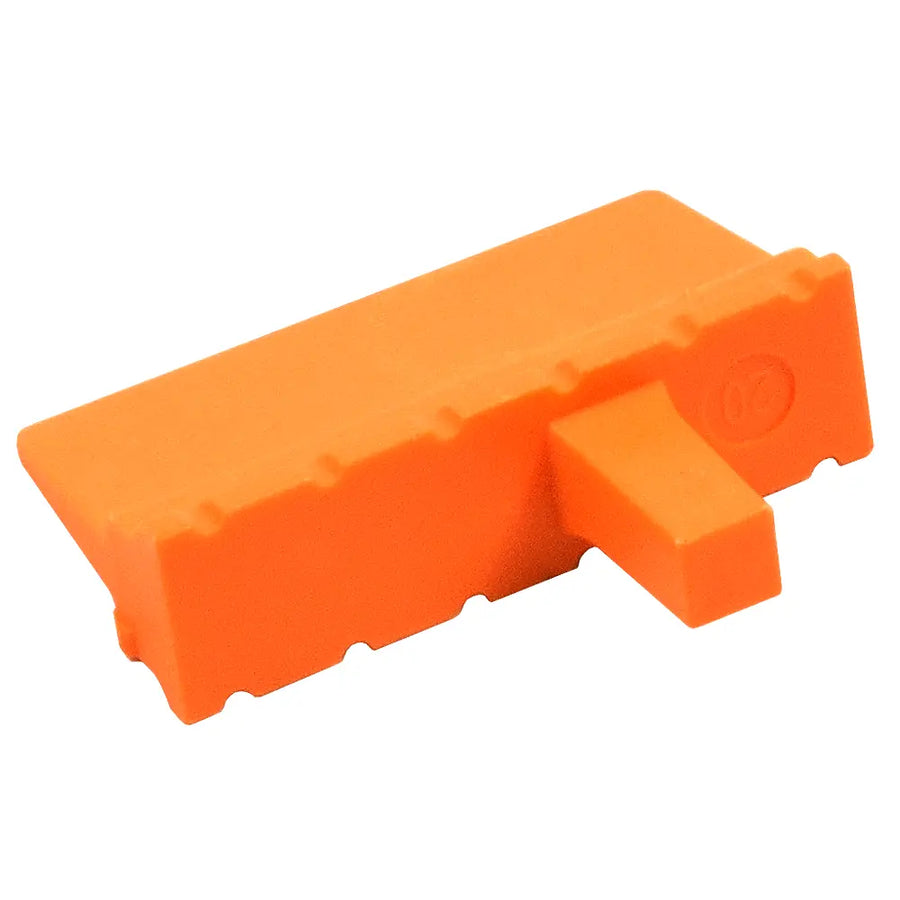

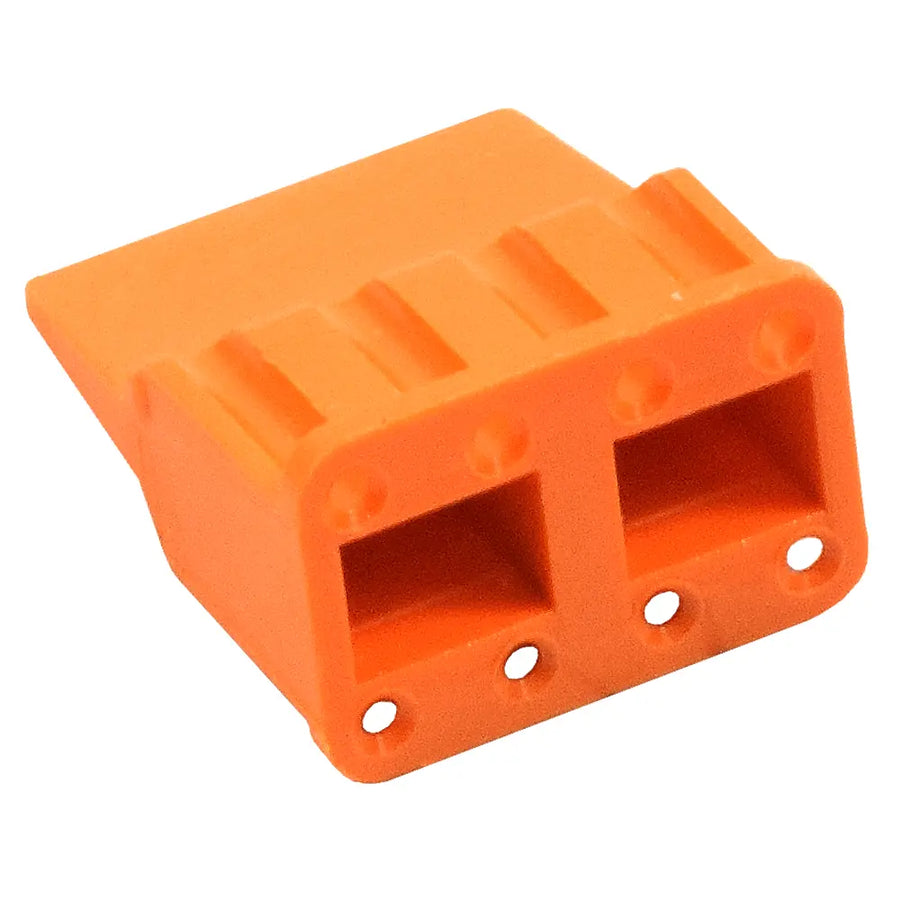

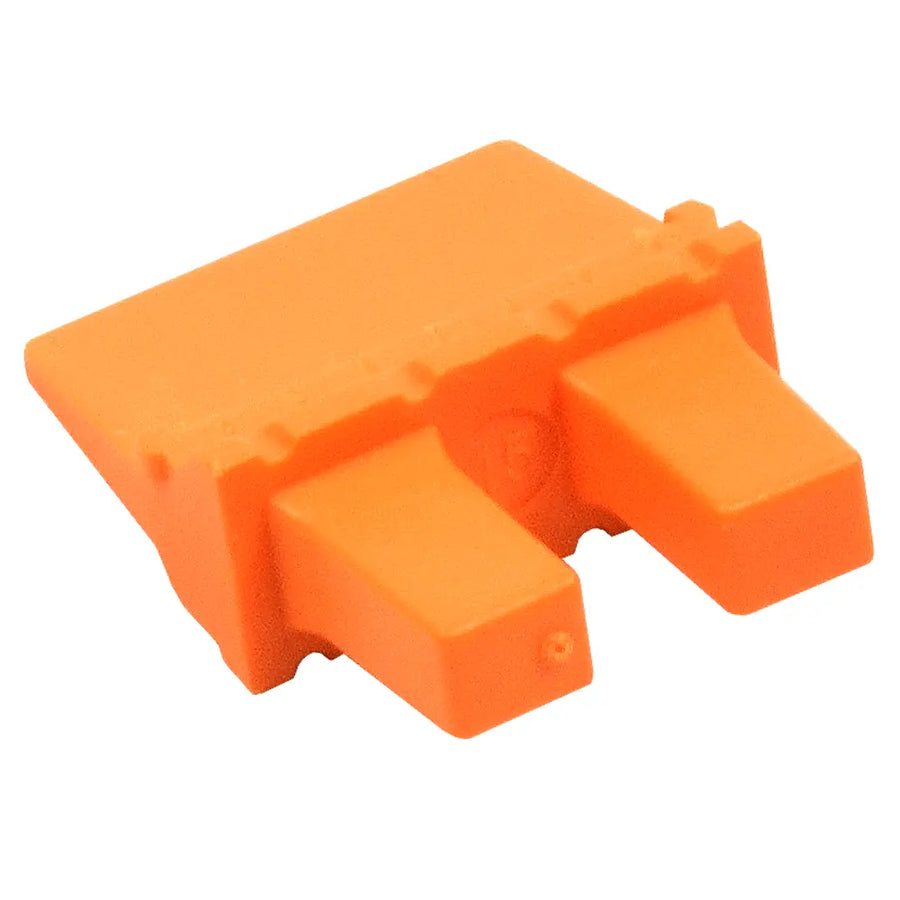

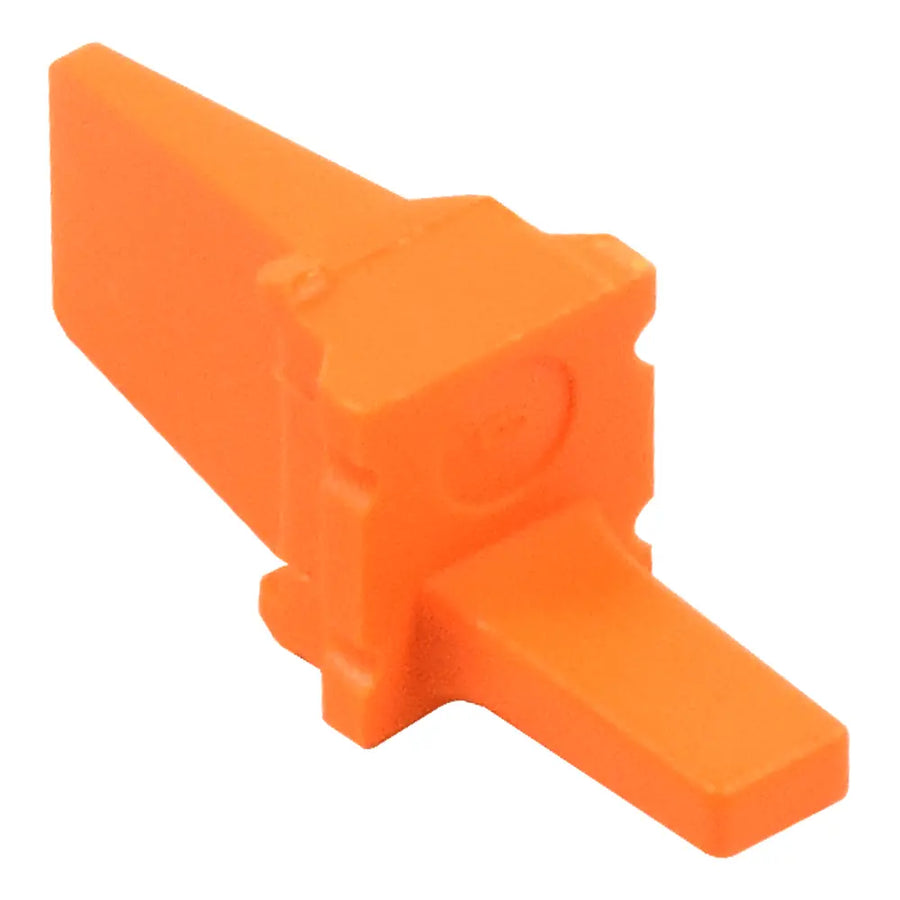

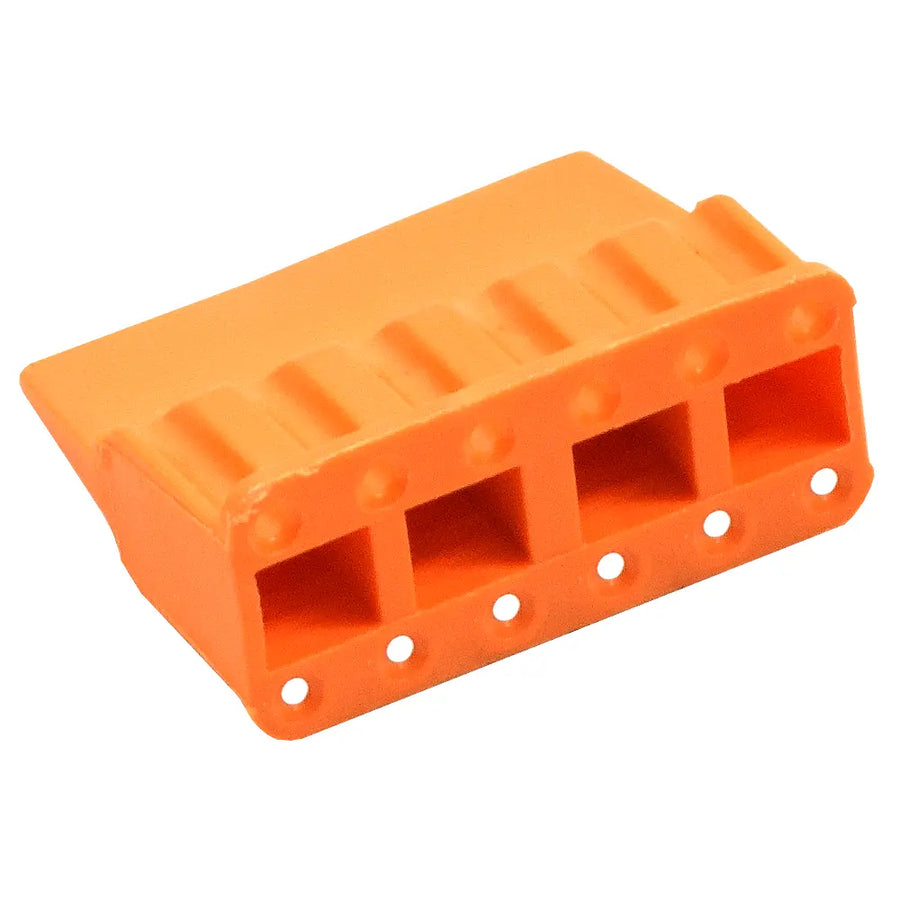

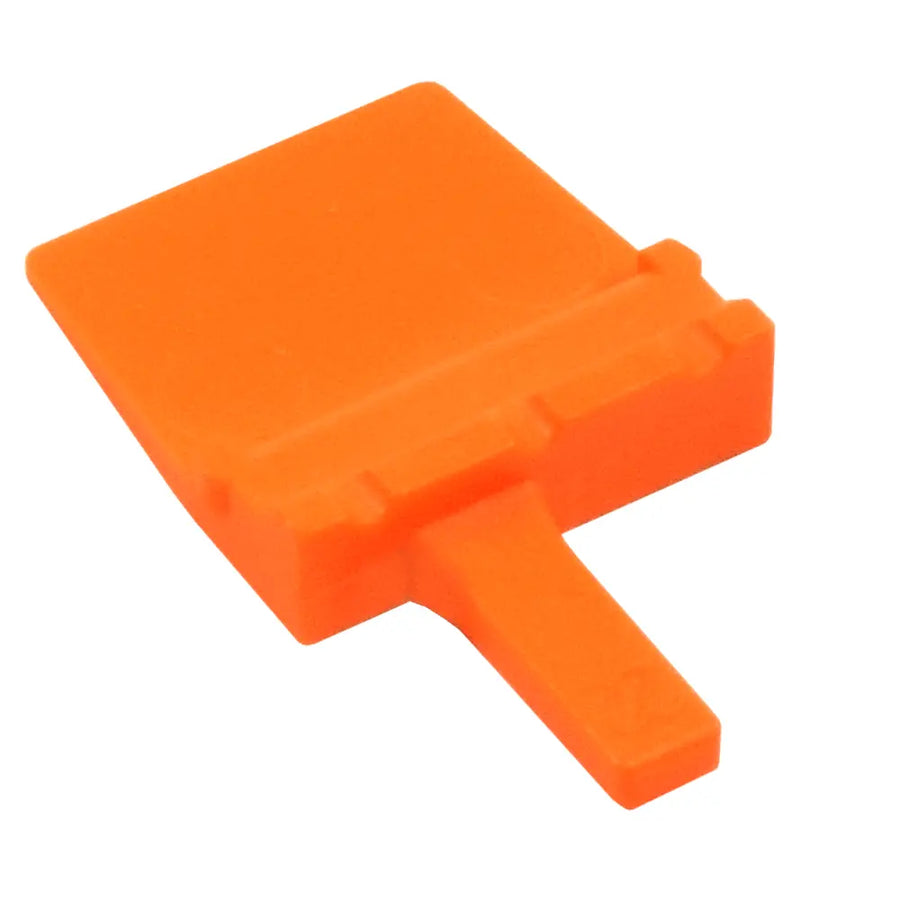

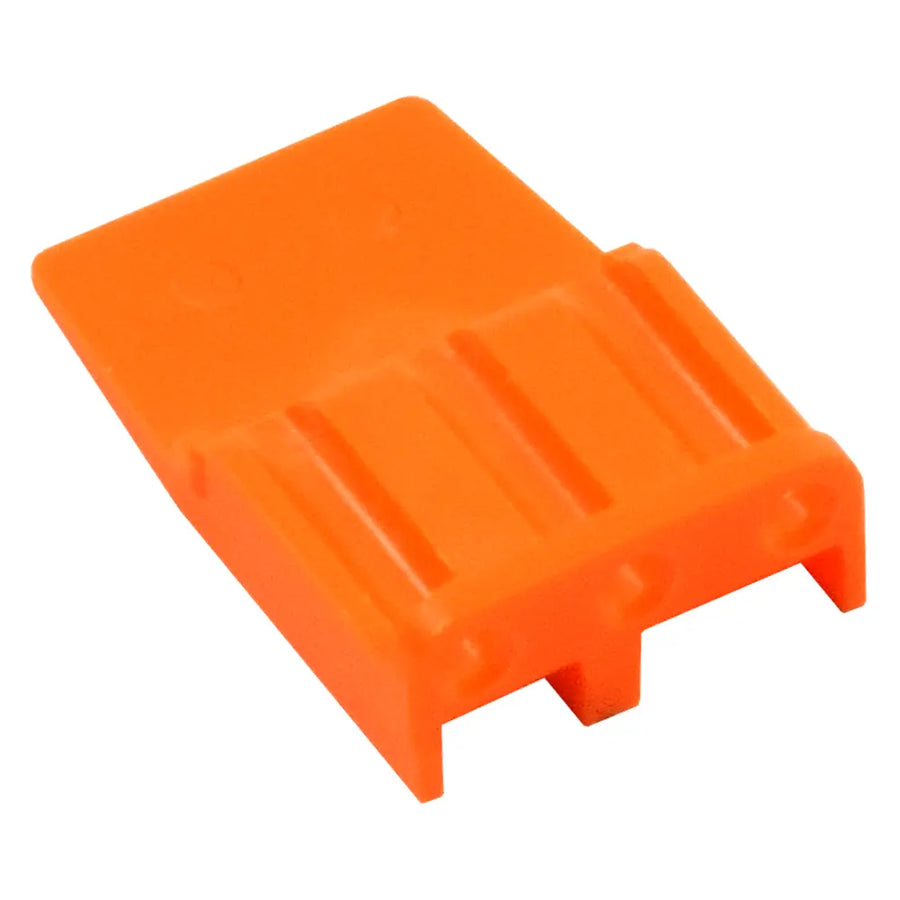

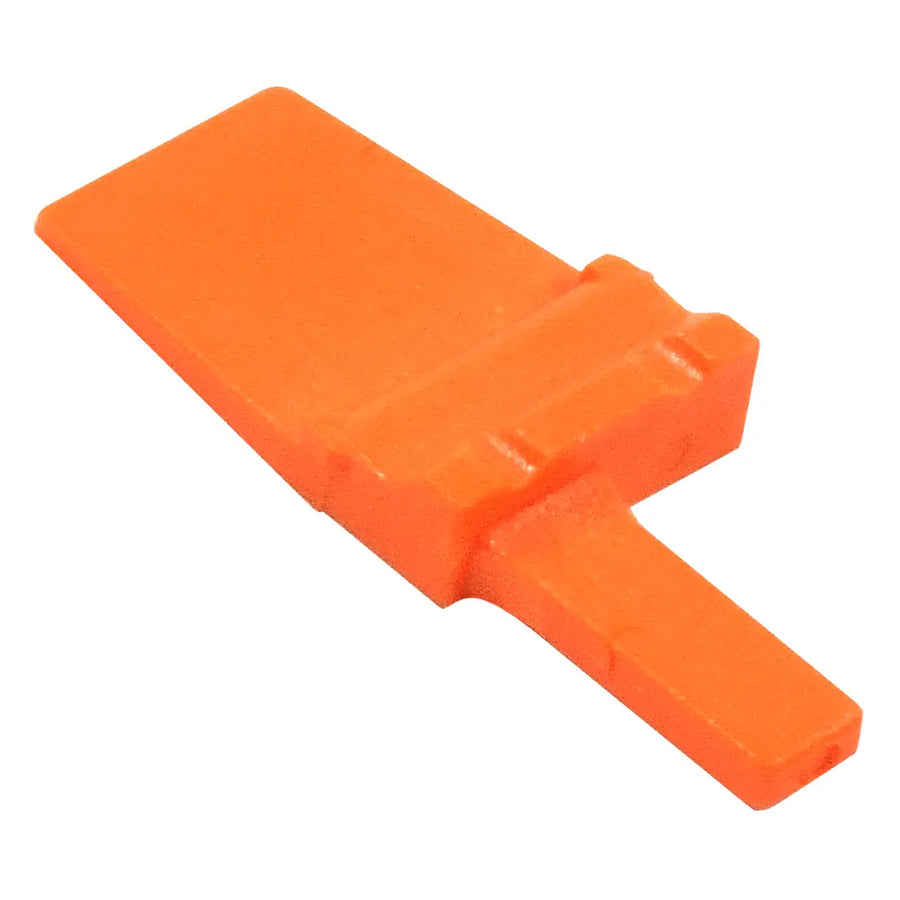

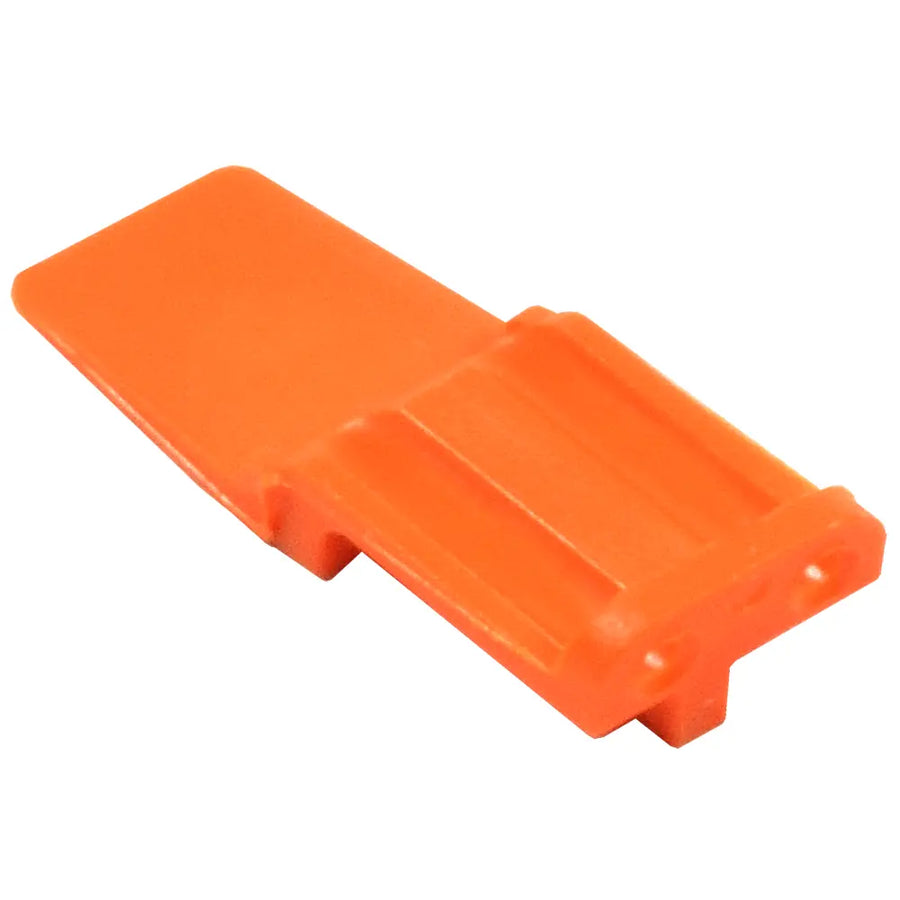

After all contacts are seated, insert the orange wedgelock until it snaps into place.
Contact removal

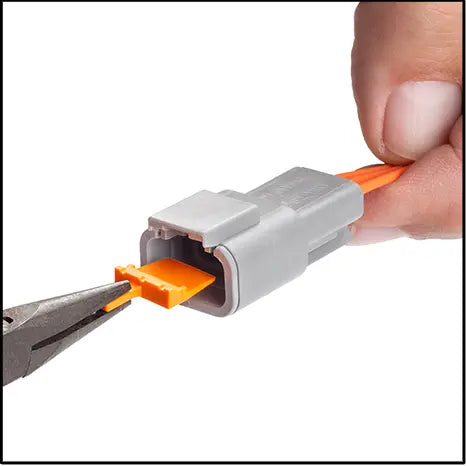

Use a flathead screwdriver to carefully pry the orange wedgelock straight out.
Contact removal

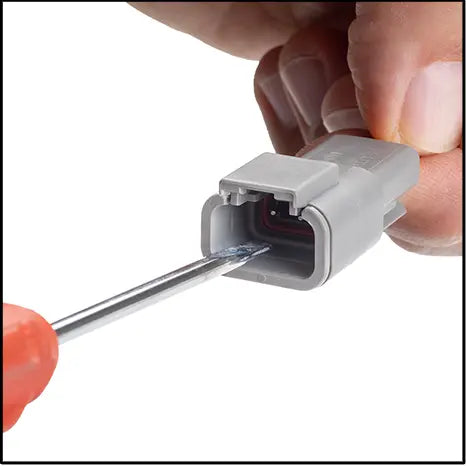

Pull the wire backward gently while using a small screwdriver to move the locking finger away from the contact.
Contact removal

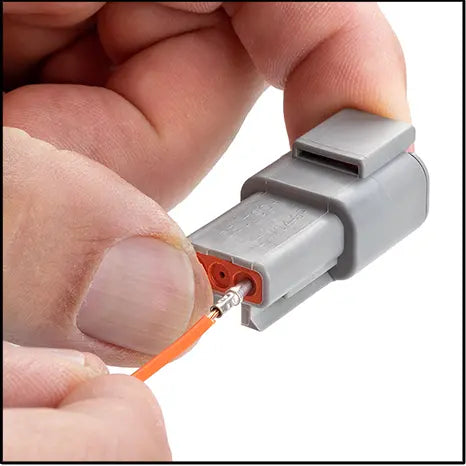

Hold the rear seal in place while withdrawing the contact to keep the seal properly positioned.

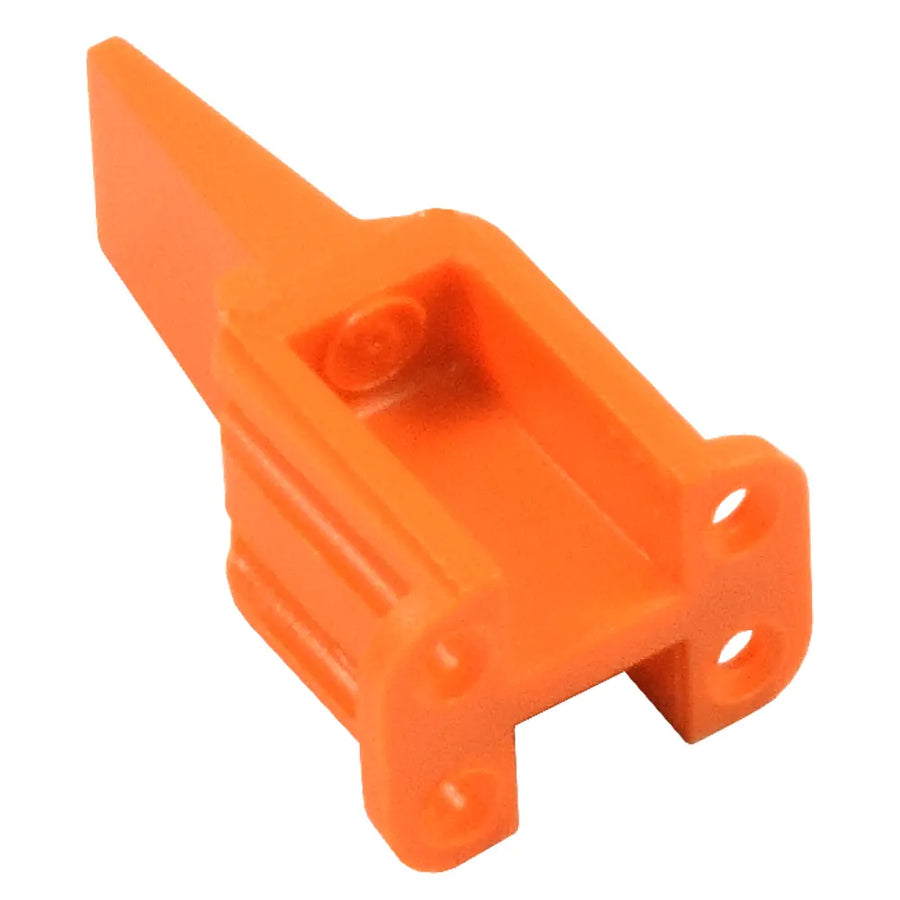

Wedgelock reference

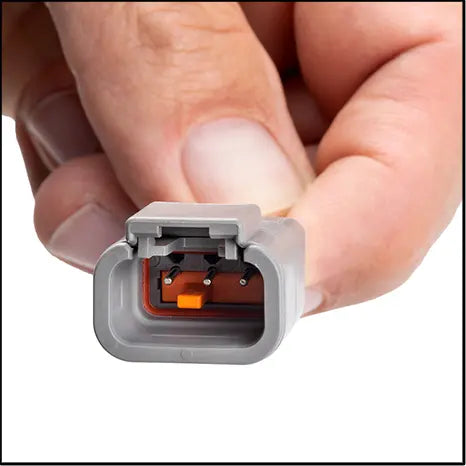

Confirm that the orange wedgelock is fully and evenly seated after reassembly.
Contact insertion
Hold the crimped contact approximately one inch behind the contact barrel.
Contact insertion
Orient the connector with the rear grommet facing you.
Contact insertion
Push the contact straight through the rear grommet until it clicks. Gently tug the wire to confirm that the contact is locked.
Contact insertion

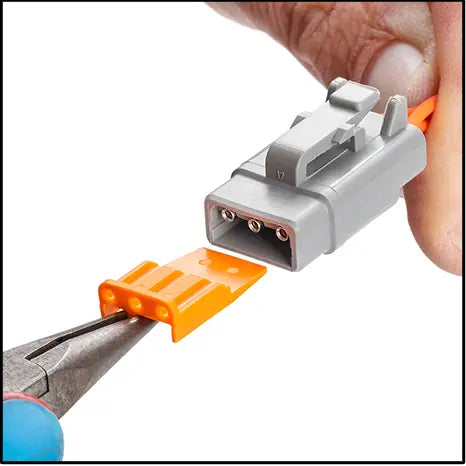

After all contacts are seated, insert the orange wedgelock until it snaps into place.
Contact removal
Use a flathead screwdriver to carefully pry the orange wedgelock straight out.
Contact removal

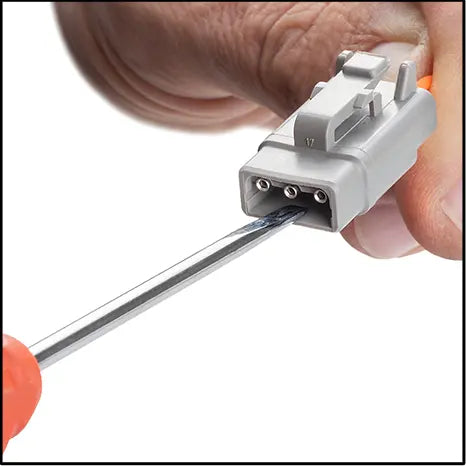

Pull the wire backward gently while using a small screwdriver to move the locking finger away from the contact.
Contact removal
Hold the rear seal in place while withdrawing the contact to keep the seal properly positioned.
Wedgelock reference

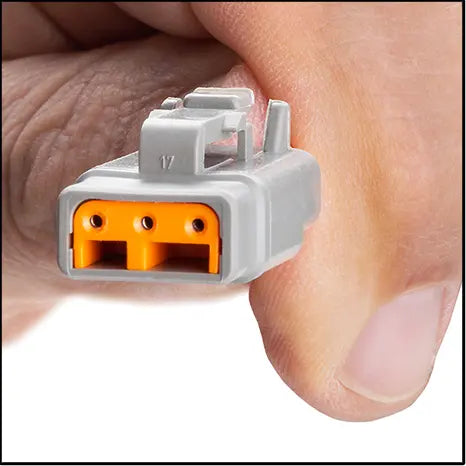

Confirm that the orange wedgelock is fully and evenly seated after reassembly.
