WHP EGT Probe- Type K Thermocouple

The WHP EGT Probe is compatible with the EMU Classic, EMU Black, and EMU PRO, as well as the ECUMaster 8-channel EGT module. This versatility ensures seamless integration into your existing setup, making it a perfect addition for those looking to monitor and enhance their vehicle's performance.

High-Quality Construction

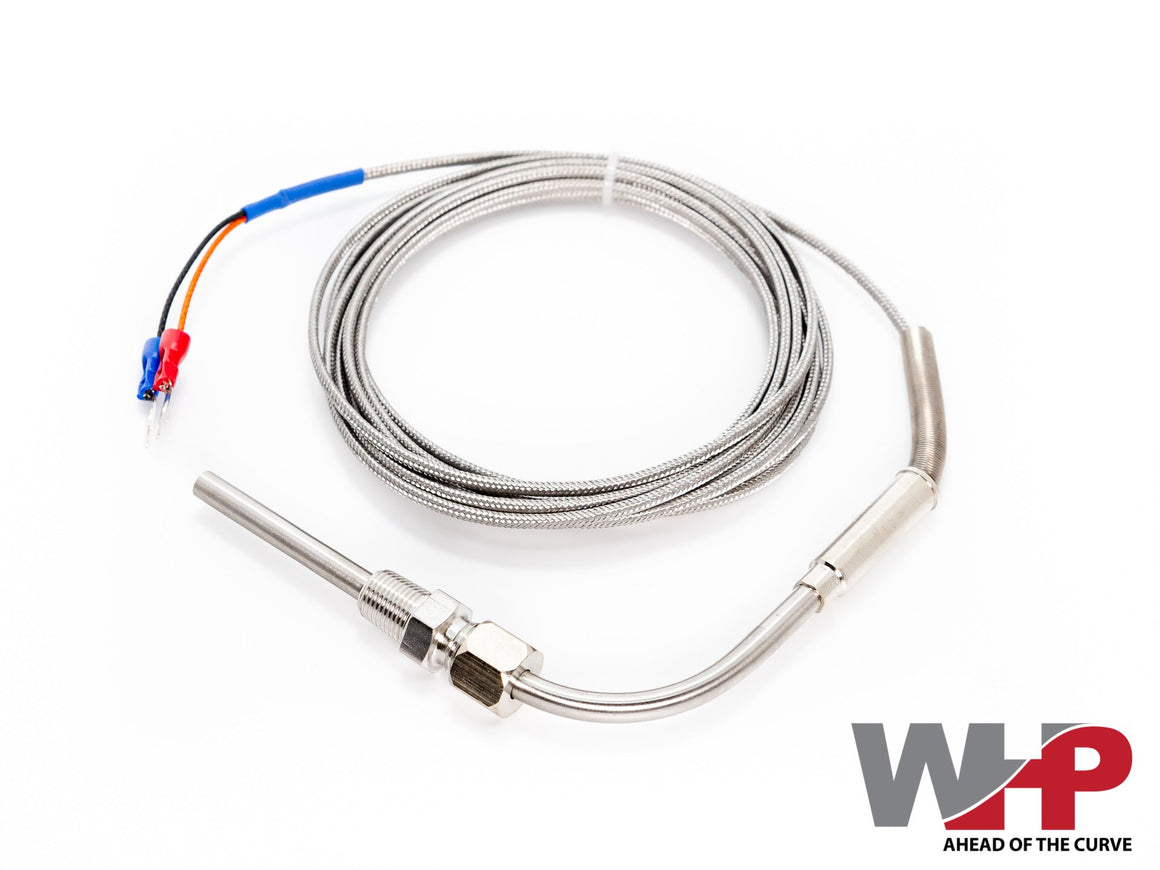

Crafted with a stainless steel body, the WHP EGT Sensor is a Type K thermocouple, known for its accuracy and reliability. The sensor comes equipped with both a male 1/8 NPT compression fitting and a female 1/8 NPT weld fitting, ensuring a secure and easy installation.

Advanced Features

• Probe Specifications: The sensor probe has a diameter of 0.250 inches and a lead length of 72 inches, providing ample reach for various installation scenarios.
• Wire Specifications: The wire is 36 inches long with striped leads, featuring Kapton insulation and a stainless steel overbraid for durability and protection.
• Rapid Response Time: With a response time of just 300 milliseconds, this sensor can detect a single misfire at 8000 RPM, ensuring you never miss a critical moment.
• Temperature Resistance: The exposed tip junction and Inconel outer sheath can withstand temperatures up to 2200°F, making it ideal for use with race gasoline, alcohol, methanol, E85, or nitrous oxide in naturally aspirated, turbocharged, or supercharged engines.

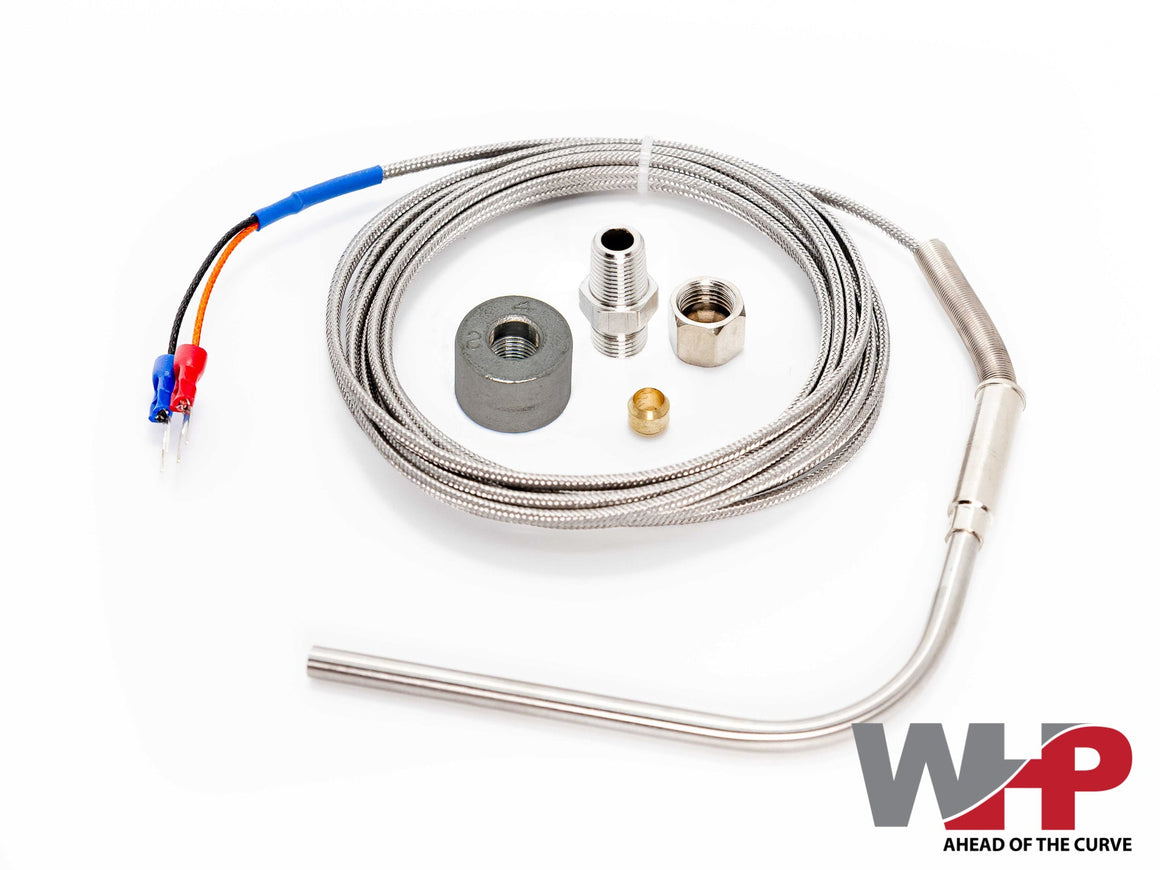

What's in the box?

• Type K Thermocouple with 1/8 NPT male compression fitting
• Stainless Steel 1/8 NPT Weld Bung

• Positive Wire (Yellow) - to EGT Input (or Precision Analog Input on EMU Pro)
  The wire is made of nickel-chromium.
• Negative Wire (Red) - to Sensor Ground (or Analog Ground on EMU Pro)
  The wire is made of nickel-alumel.


Extending the wires is not recommended as the pins and wires used in the extension must must be made of the appropriate materials in order to maintain the Type K calibration.
