Toyota 2JZ Master Engine Connector Plug Kit Cam Crank Coil Starter Water TPS

KSV Looms

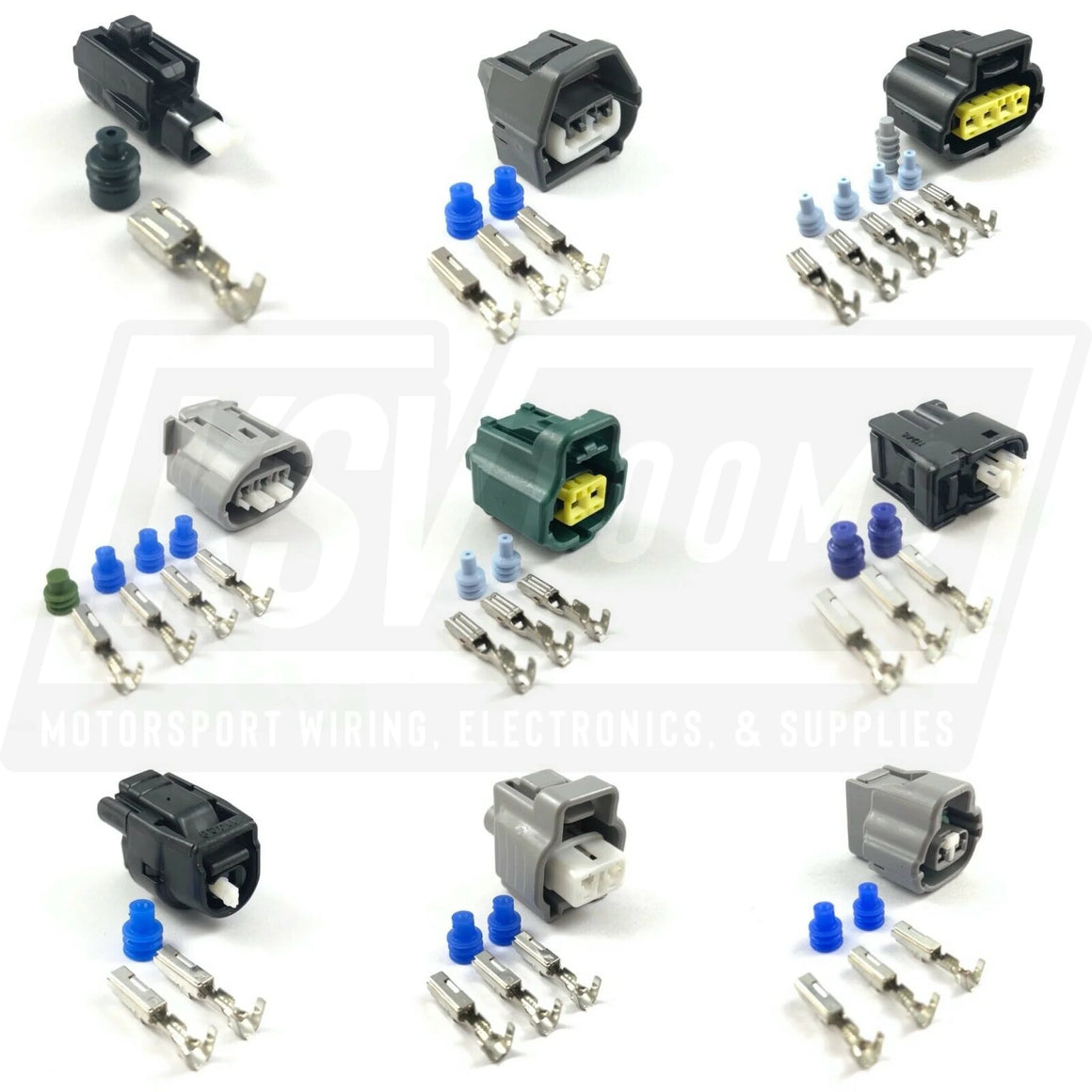

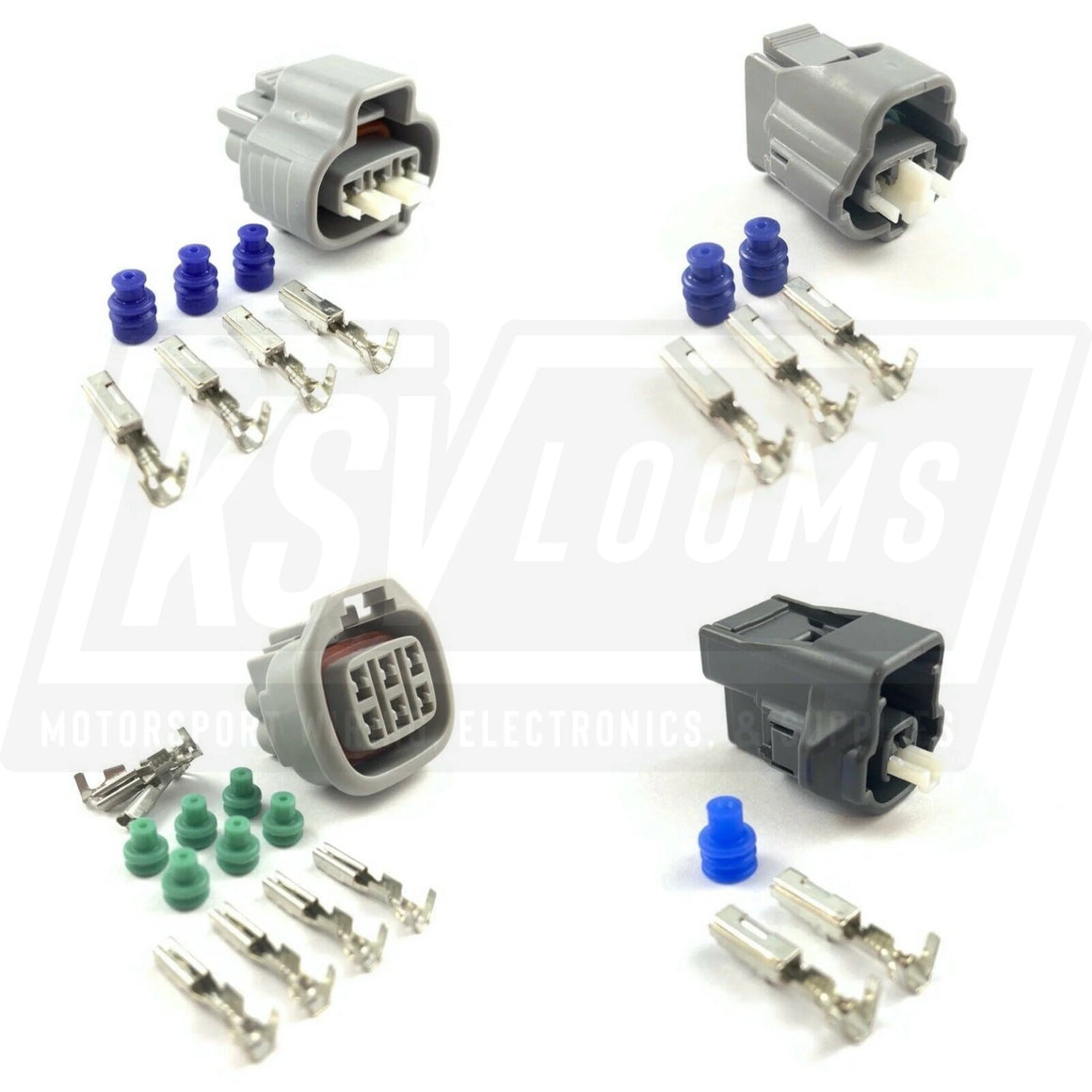

Genuine OEM master engine connector kit for the Toyota 2JZ-GE / 2JZ-GTE engine used across many vehicles, compatible with stock terminals and wire.  This master engine kit includes the following connector kits;



  • Starter x 1, Crank Position x 1, Cam Position x 2, Throttle Position Sensor (TPS) x 1, Water Temp x 1, Alternator x 1, Coilpack x 6, Water Temp Gauge x 1, Vehicle Speed Sensor (VSS) x 1, Reverse Switch x 1, VVTi Solenoid x 1, Intake Air Temp (IAT) x 1, Idle Air Control Valve (IAC) x 1, Throttle Pedal Sensor x 1, Knock Sensor x 2



If you choose to replace a deteriorated OEM housing, simply de-pin and replace with these, crimping on new terminals only if desired.  This listing includes wire seals and terminals for each connector.  Part breakdown for each is below;

1-Pin Starter x 1;



  • Connector housing x 1

  • Wire seal x 1 (sized for M22759 Tefzel wire)

  • Terminal (20-16 AWG) x 1



2-Pin Crank Position x 1

  • Connector housing x 1
  • Wire seal x 2 (sized for M22759 Tefzel wire)
  • Gold socket terminal (22-20 AWG) x 3 (one extra provided)
2-Pin Cam Position x 2
  • Connector housing x 2
  • Wire seal x 4 (sized for M22759 Tefzel wire)
  • Gold socket terminal (22-20 AWG) x 6 (two extra provided)

4-Pin Throttle Position Sensor (TPS) x 1

  • Connector housing x 1
  • Wire seal x 4 (sized for M22759 Tefzel wire)
  • Cavity plug x 1
  • Socket terminal (22-18 AWG) x 5 (one extra provided)

2-Pin Water Temp x 1

  • Connector housing x 1
  • Wire seal x 2 (sized for M22759 Tefzel wire)
  • Socket terminal (22-18 AWG) x 3 (one extra provided)

3-Pin Alternator x 1

  • Connector housing x 1
  • Wire seal x 3 (sized for M22759 Tefzel wire)
  • Cavity plug x 1
  • Socket terminal (22-20 AWG) x 4 (one extra provided)

2-Pin Coilpack x 6

  • Connector housing x 6
  • Wire seal x 12 (sized for M22759/32 Tefzel wire)
  • Socket terminal (22-20 AWG) x 18 (one extra provided)

1-Pin Water Temp Gauge (Dash) x 1

  • Connector housing x 1
  • Wire seal x 1 (sized for M22759/ Tefzel wire)
  • Socket terminal (22-20 AWG) x 2 (one extra provided)
3-Pin Vehicle Speed Sensor (VSS) x 1
  • Connector housing x 1
  • Wire seal x 3 (sized for M22759 Tefzel wire)
  • Socket terminal (22-20 AWG) x 4 (one extra terminal provided)
2-Pin Reverse Switch x 1
  • Connector housing x 1
  • Wire seal x 2 (sized for M22759 Tefzel wire)
  • Socket terminal (22-20 AWG) x 3 (one extra provided)
2-Pin VVTi Solenoid x 1
  • Connector housing x 1
  • Wire seal x 2 (sized for M22759 Tefzel wire)
  • Socket terminal (22-20 AWG) x 3 (one extra provided)
2-Pin Intake Air Temperature (IAT) x 1
  • Connector housing x 1
  • Wire seal x 2 (sized for M22759 Tefzel wire)
  • Socket terminal (22-20 AWG) x 3 (one extra provided)
6-Pin Idle Air Control Valve (IAC) x 1
  • Connector housing x 1
  • Wire seal x 6 (sized for M22759 Tefzel wire)
  • Socket terminal (22-16 AWG) x 7 (one extra provided)
4-Pin Throttle Pedal Sensor (or Distributor on some models) x 1  **Connector is not pictured in photos
  • Connector housing x 1
  • Wire seal x 4 (sized for M22759 Tefzel wire)
  • Socket terminal (22-20 AWG) x 5 (one extra provided)
1-Pin Knock Sensor x 2
  • Connector housing x 2
  • Wire seal x 2 (sized for M22759 Tefzel wire)
  • Socket terminal (22-20 AWG) x 4 (one extra provided)
