Part #: SSC-N

SOLID CONTACT,SUPERSEAL 1.0, NICKEL

Prowireusa
$0.87

Secure checkout

Friendly support

Hassle-free returns

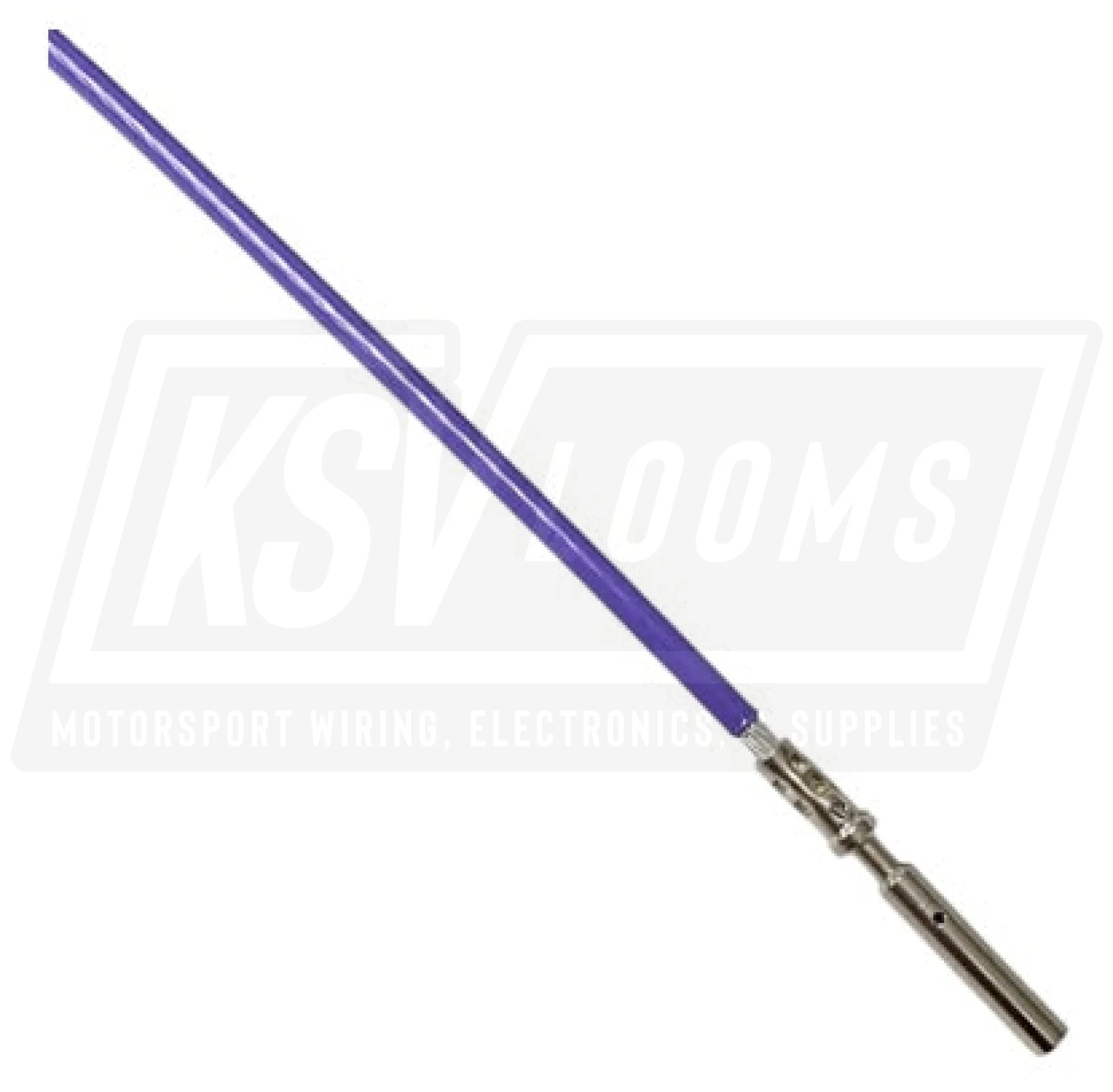

Superseal 1.0 Solid Contact 16-24 AWG

Introducing our new patent pending in-house designed solid contact specifically for use with Superseal 1.0 connector housings. The time of using the factory-stamped contacts with either hokey or expensive tooling is over.

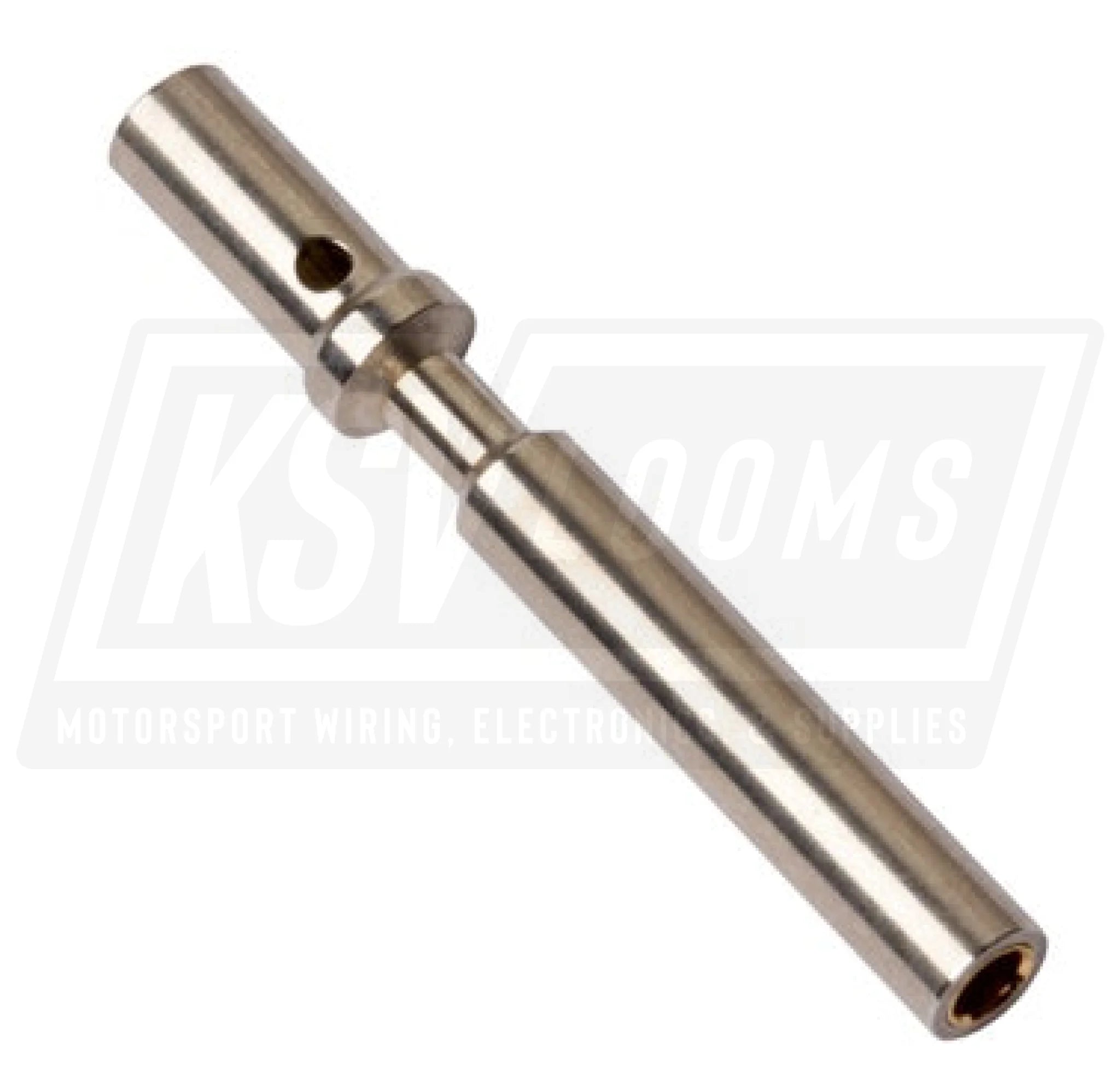

Our SSC-N is a nickel-plated hoodless solid contact with a nickel-plated body and a beryllium copper gold-plated clip just like OE. You can terminate your ECU, PDM, or dash at breakneck speeds.

See tooling options below. Also, check out the Crimp Tools tab for tooling links.

Tooling Chart for SuperSeal Solid Contacts
Crimp
 Frame
 Name /
Code
 Turret /
Positioner
 Name /
Code
M22520/1-01

AF8

 M22520/1-02

TH1A
M22520/2-01

AFM8

M22520/2-02

K1S
M22520/7-01
MH860

 M22520/7-02

86-1S
HDT-48-00

N/A

 N/A N/A
18890 N/A N/A N/A

** If using the MH860 crimp frame, the 86-1S positioner in required. This will not work with any other positioner.

M22520/2-01 (AFM8) K1S Selector Settings
AWG Selector Setting
24

5
22

6
20
7
18

8
16* 8

*Although the AFM8 crimp frame isn't specifically designed for 16-gauge wire, our testing consistently demonstrated impressive crimp tensile strength of 60.16 pounds or 267 Newtons^1. These results exceed both MIL and IPC ratings.

^1 Exceeding MIL and IPC ratings: The achieved crimp tensile strength surpasses the established ratings specified by both the MIL and IPC standards.
