Part #: MS3476L16-8P

MS3476L16-8P PLUG CONNECTOR

Aero Electric
$66.25

Secure checkout

Friendly support

Ships from USA

Mil-Spec Circular Connector 8-Way Plug Kit

The MS3476L16-8P is a 8-way plug circular connector kit with pin (male) contacts. The connector housing is electroless nickel aluminum. To create a mated pair, a receptacle connector kit is required.

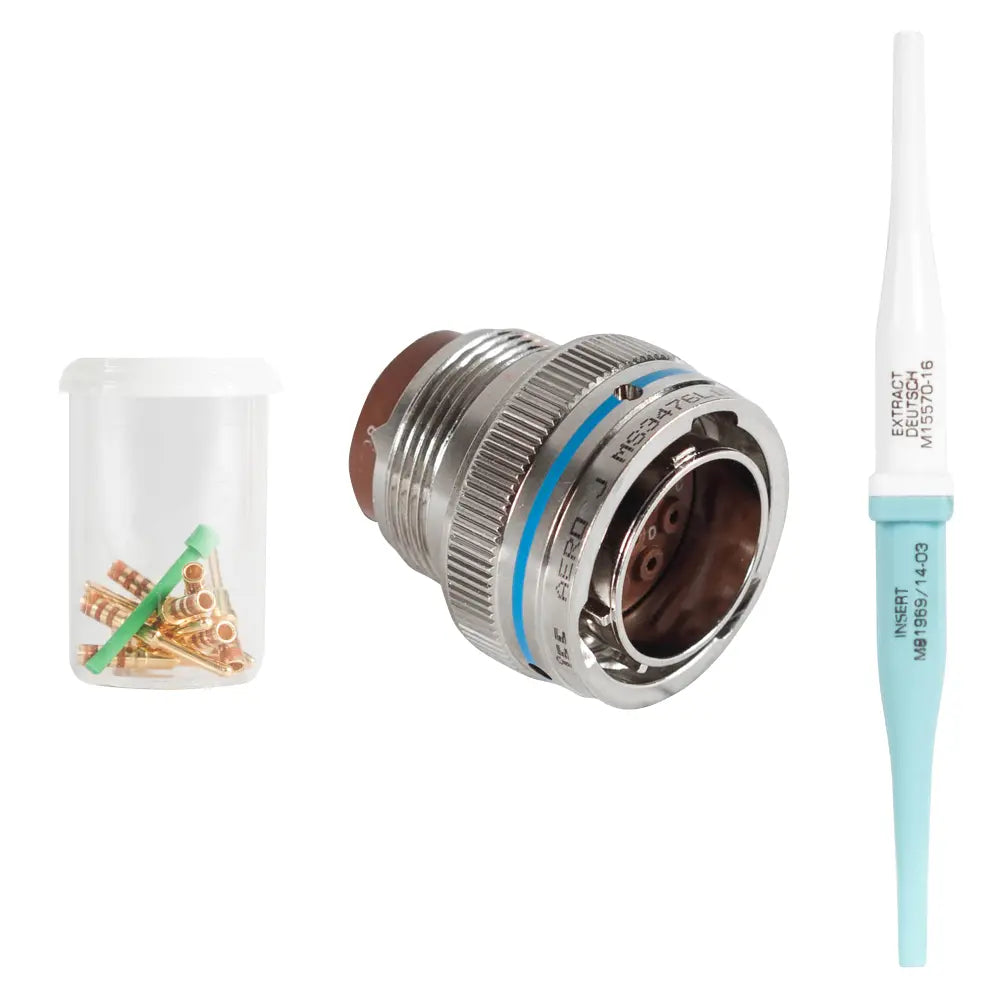

MS3476L16-8P Kit Includes:
  • (1) 8-Way Plug Connector Body.
  • (8) Size 16 pin (male) contacts, 20-14 AWG, 13 A ea. M39029/4-111
  • (1) Insert/Removal Tool M81969/14-03
  • (1) Cavity Plug MS27488-16-2 The quantity included varies.
Mating Connector:
  • 4-Bolt Flanged Receptacle: MS3470L16-8S
  • Jam-Nut Receptacle: MS3474L16-8S
Required Crimp Tooling:
  • DMC Crimp Frame: AF8 requires TH1A
  • DMC Turret: TH1A requires AF8
  • Deutsch: HDT-48-00 all-in-1 tool.
  • Econo Tool: 18880 size, 16 contacts only.
Shrink Boots:
  • Straight: 202K153-25-0
  • 90°: 222K152-25-0
Shrink Boot Adapter:
  • M85049/60-2G16N
