MS3476A14-4P MIL-Spec Free Plug Connector Kit 4-Way
MS3476A14-4P MIL-Spec Free Plug Connector Kit 4-Way
Part #: MS3476A14-4P MPN: MS3476A14-4P

MS3476A14-4P MIL-Spec Free Plug Connector Kit, 4-Way

Aero Electric
$48.55

Secure checkout

Friendly support

Ships from USA

Mil-Spec Circular Connector 4-Way Plug Kit

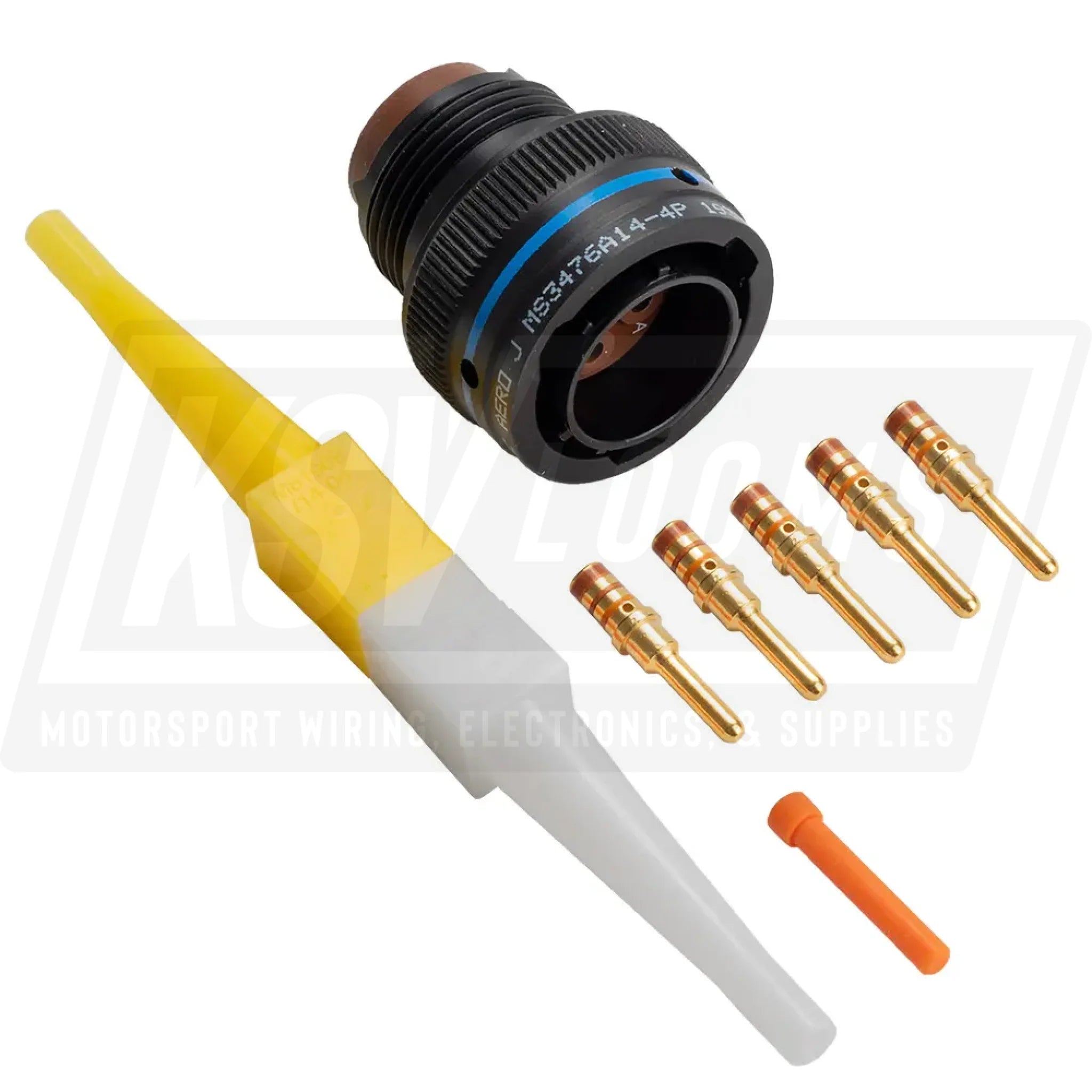

The MS3476A14-4P is a 4-way plug circular connector kit with pin (male) contacts. The connector housing is black anodized aluminum.
MS3476A14-4P Kit Includes:
  • (1) 4-Way Plug Connector Body.
  • (4) Size 12 pin (male) contacts 23 A M39029/4-113
  • (1) Insert/Removal Tool M81969/14-04
  • (1) Cavity Plug MS27488-12-2 Quantity varies by part number.
Required Crimp Tooling:
  • DMC Crimp Frame: AF8 requires TH1A
  • DMC Turret: TH1A requires AF8
  • Deutsch: HDT-48-00 all in 1 tool.
  • Econo Tool: 18860 size, 12 contacts only.
Shrink Boots:
  • Straight: 202K142-25-0
  • 90°: 222K142-25-0
Shrink Boot Adapter:
  • M85049/60-2G14A
Notes:
  • Please see the Mating Connector, Related Items, and Crimp Tools tabs to purchase the mating connector, heat shrink boots, and accessories
