Part #: MS3474A22-41S

MS3474A22-41S MIL-Spec Jam Nut Receptacle Connector Kit, 41-Way

Aero Electric
$88.30

Secure checkout

Friendly support

Hassle-free returns

Mil-Spec Circular Connector 41-Way Receptacle Kit

The MS3474A22-41S is a 41-way jam nut receptacle circular connector kit with socket (female) contacts. The connector housing is black anodized over aluminum.

This connector features a mixed arrangement, utilizing two different contact sizes.

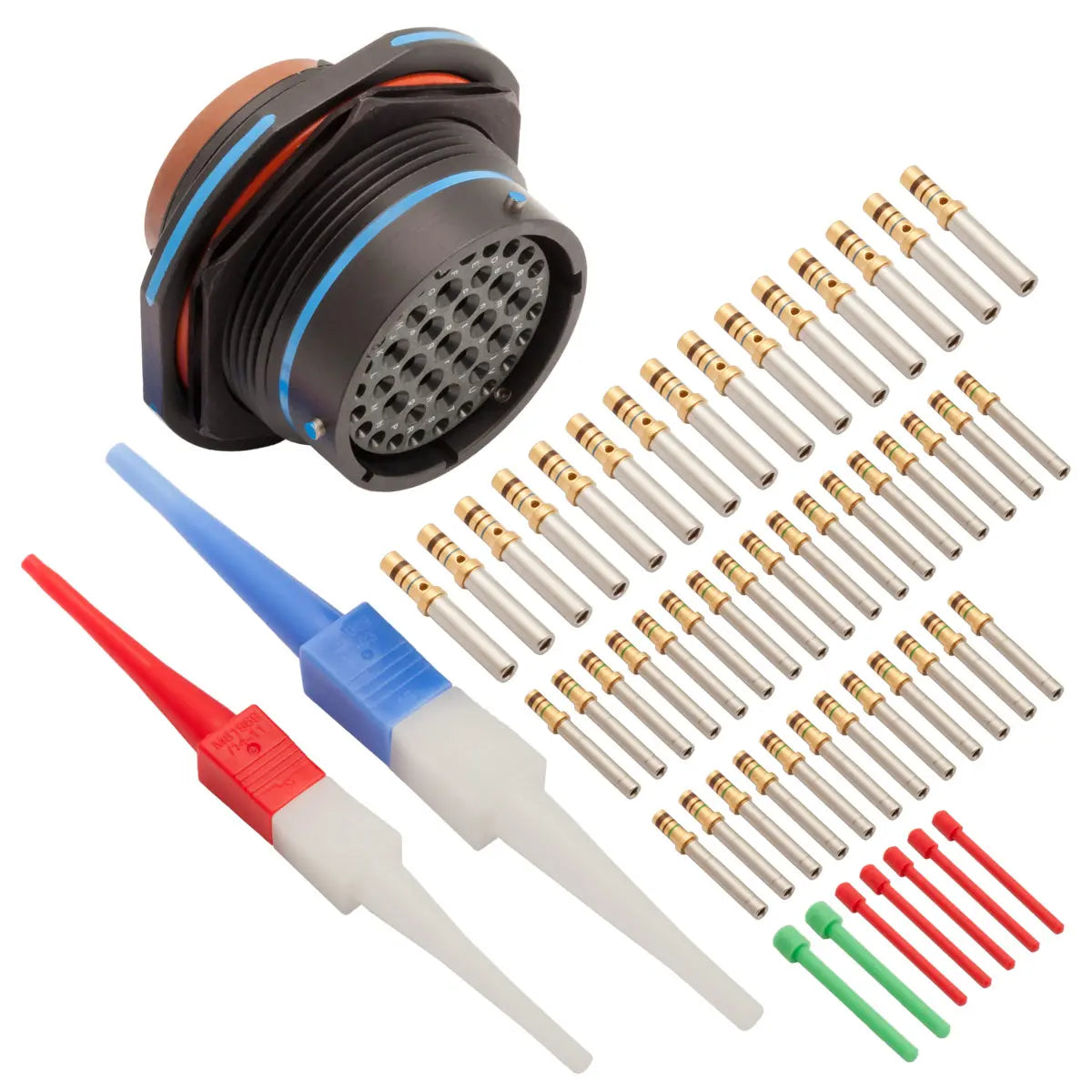

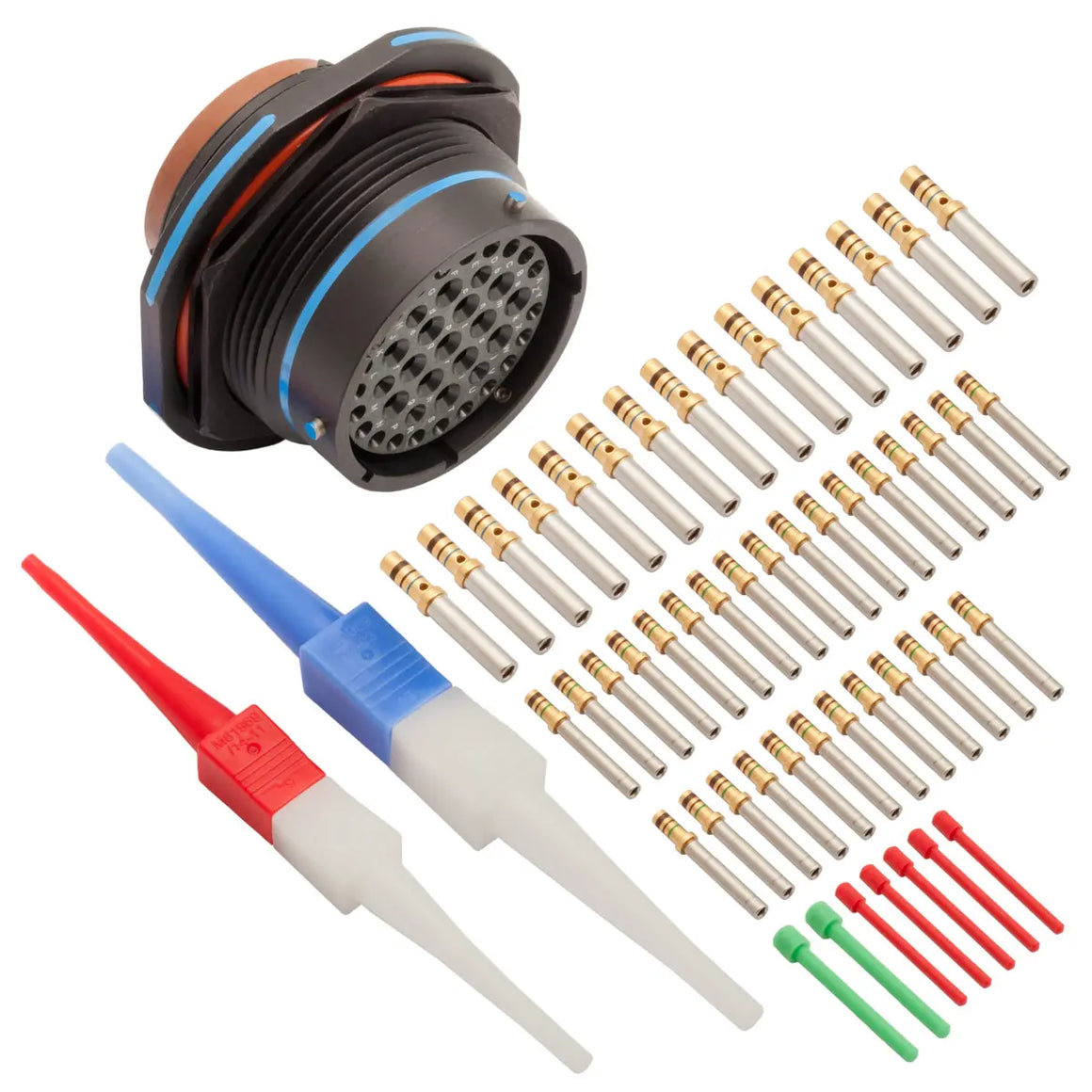

MS3474A22-41S Kit Includes:
  • (1) 41-Way Jam Nut Receptacle Connector Body.
  • (14) Size 16 socket (female) contacts (20-16 AWG, 13 A each) M39029/5-116
  • (27) Size 20 socket (female) contacts (22-18 AWG, 7.5 A each) M39029/5-115
  • (1) Insert/Removal Tool M81969/14-02
  • (1) Insert/Removal Tool M81969/14-03
  • (1) Cavity Plug MS27488-20-2 Qty varies by part number.
  • (1) Cavity Plug MS27488-16-2 Qty varies by part number.
Required crimp tooling:
  • DMC Crimp Frame: M22520/1-01 (AF8) requires TH1A
  • DMC Turret: M22520/1-02 (TH1A) requires AF8
  • DMC Positioner: K1S requires AFM8 (size 20 contacts only)
  • Deutsch: HDT-48-00 all-in-one tool.
  • Econo Tool 18880 size 20 contacts only.
  • Econo Tool 18890 size 16 contacts only.
Shrink Boots:
  • Straight: 202K163-25-0
  • 90°: 222K163-25-0
Shrink Boot Adapter:
  • M85049/60-2G22A
Notes:
  • Size 16 contacts can accept 14-AWG Tefzel wire if the stripped wire is perfect without stray conductor strands. The current rating remains the same at 13 amps each.
