Part #: MS3470A24-31P

MS3470A24-31P MIL-Spec Flanged Receptacle Connector Kit, 31-Way

Aero Electric
$85.11

Secure checkout

Friendly support

Hassle-free returns

Mil-Spec Circular Connector 31-Way Receptacle Kit

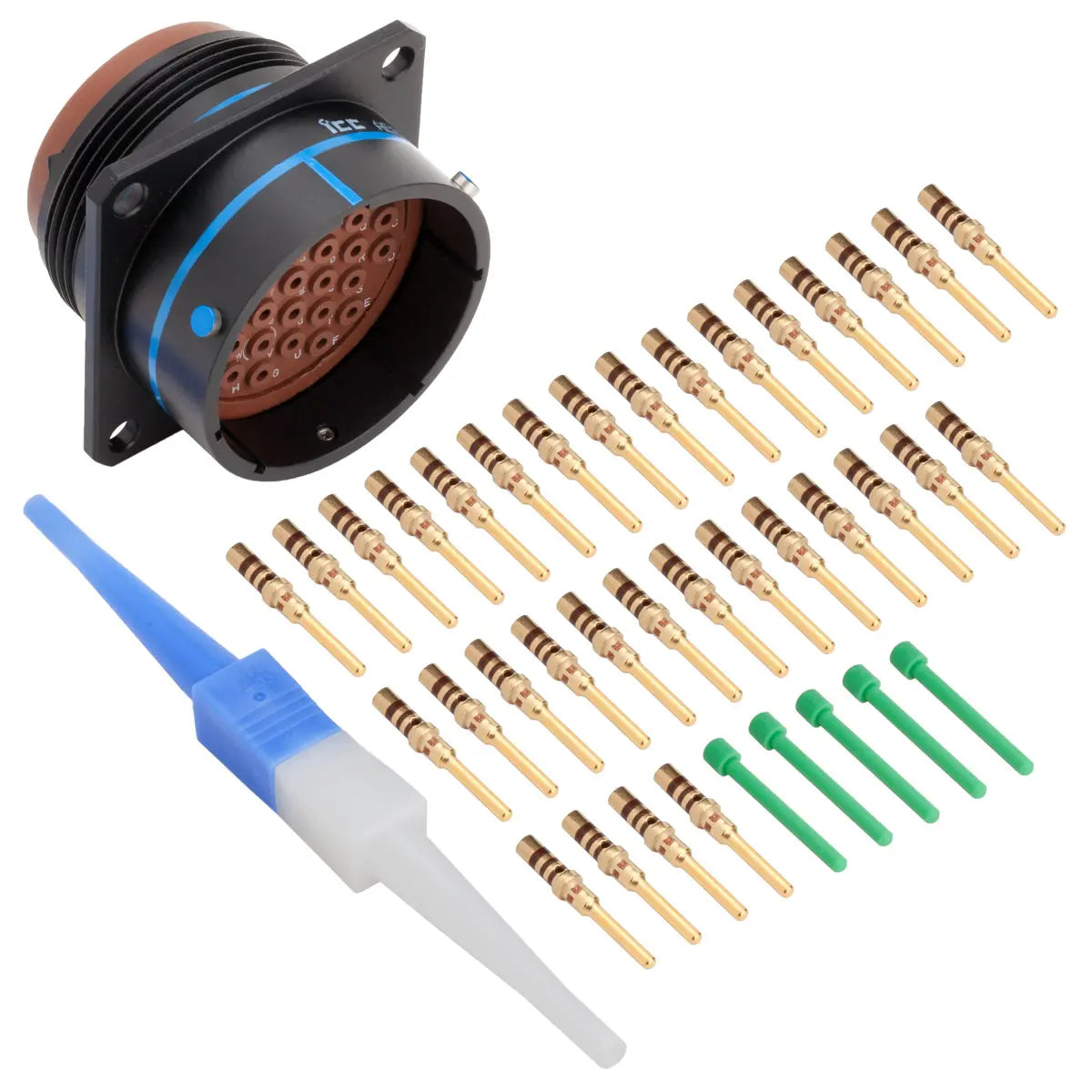

The MS3470A24-31P is a 31-way flanged receptacle circular connector kit with pin (male) contacts. The connector housing is black anodized aluminum.

MS3470A24-31P Kit Includes:
  • (1) 31-Way Flanged Receptacle Connector Body.
  • (31) Size 16 pin (male) contacts 13 A M39029/4-111
  • (1) Insert/Removal Tool M81969/14-03
  • (1) Cavity Plug MS27488-16-2 Quantity varies by part number.
Required Crimp Tooling:
  • DMC Crimp Frame: AF8 requires TH1A
  • DMC Turret: TH1A requires AF8
  • Deutsch: HDT-48-00 all in 1 tool.
  • Econo Tool: 18880 size, 16 contacts only.
Shrink Boots:
  • Straight: 202K163-25-0
  • 90°: 222K163-25-0
Shrink Boot Adapter:
  • M85049/60-2G24A
Nut Plate:
  • M85049/95-24B
Notes:
  • Size 16 contacts can accept 14-AWG Tefzel wire if the stripped wire is perfect without stray conductor strands. The current rating remains the same at 13 amps each.
