MS3470A22-55S Connector Kit

MIL-Spec

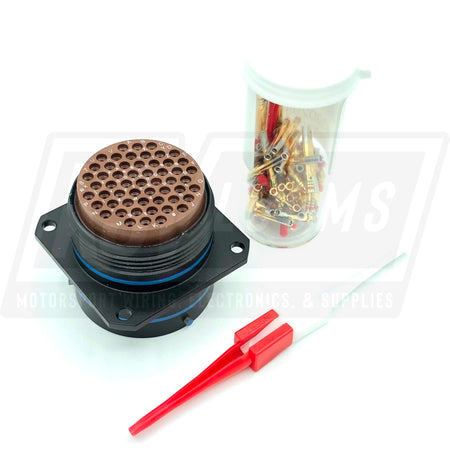

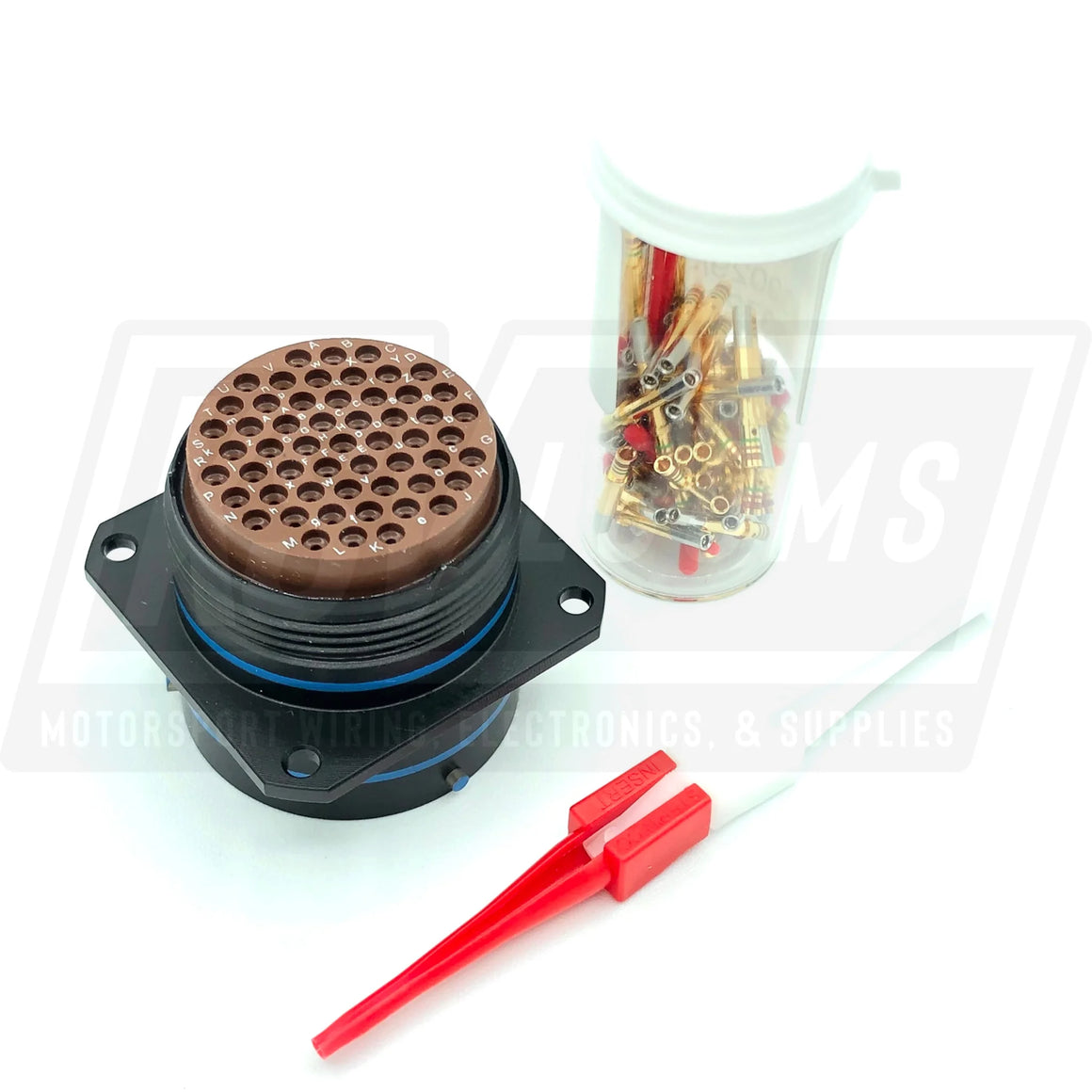

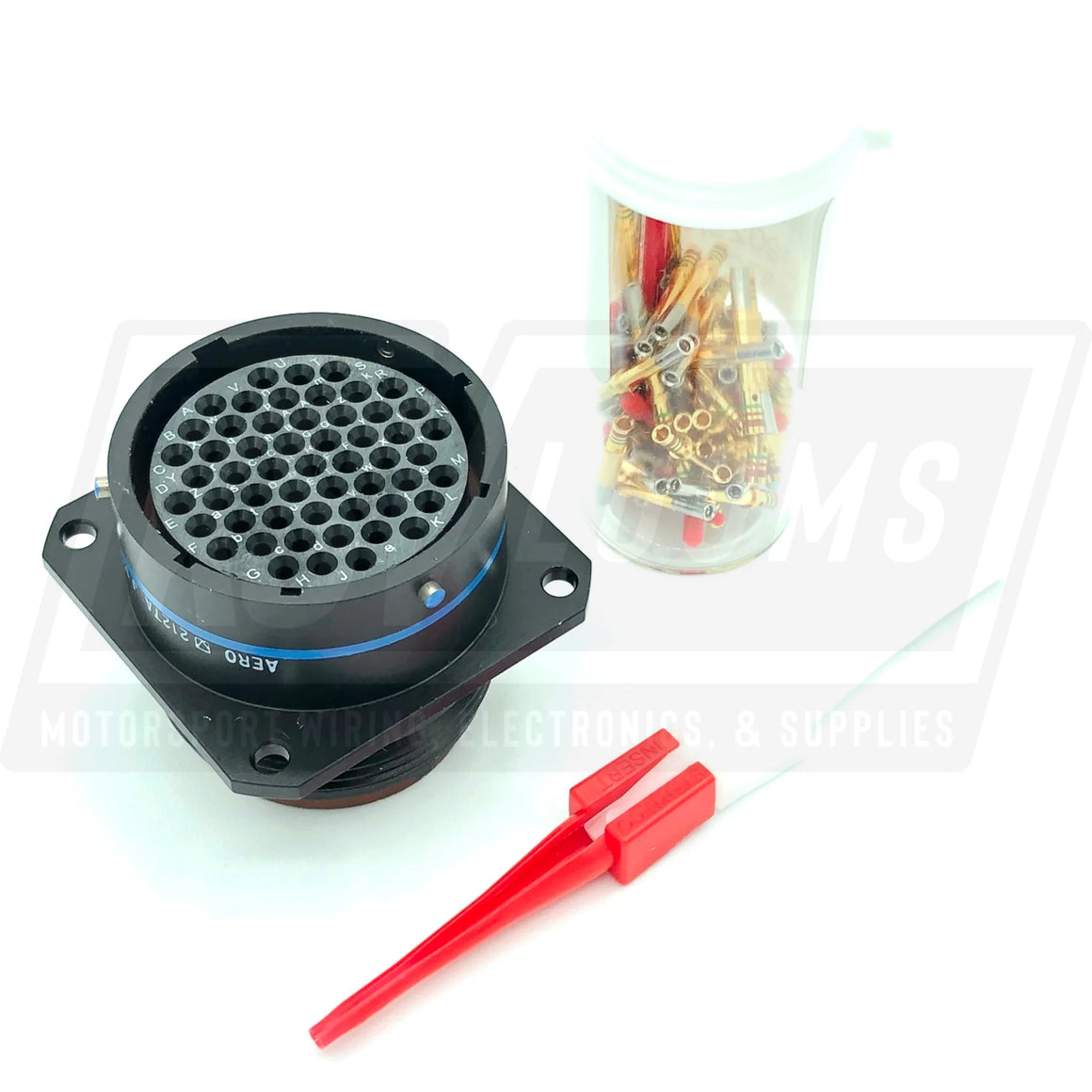

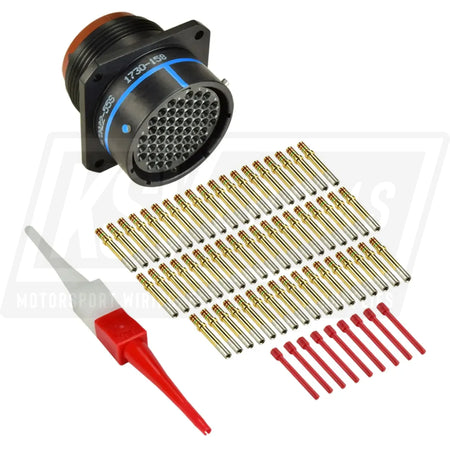

MS3470A22-55S Connector Kit.  This genuine MIL-Spec connector kit includes connector, terminals, cavity plugs, and insertion/extraction tool.

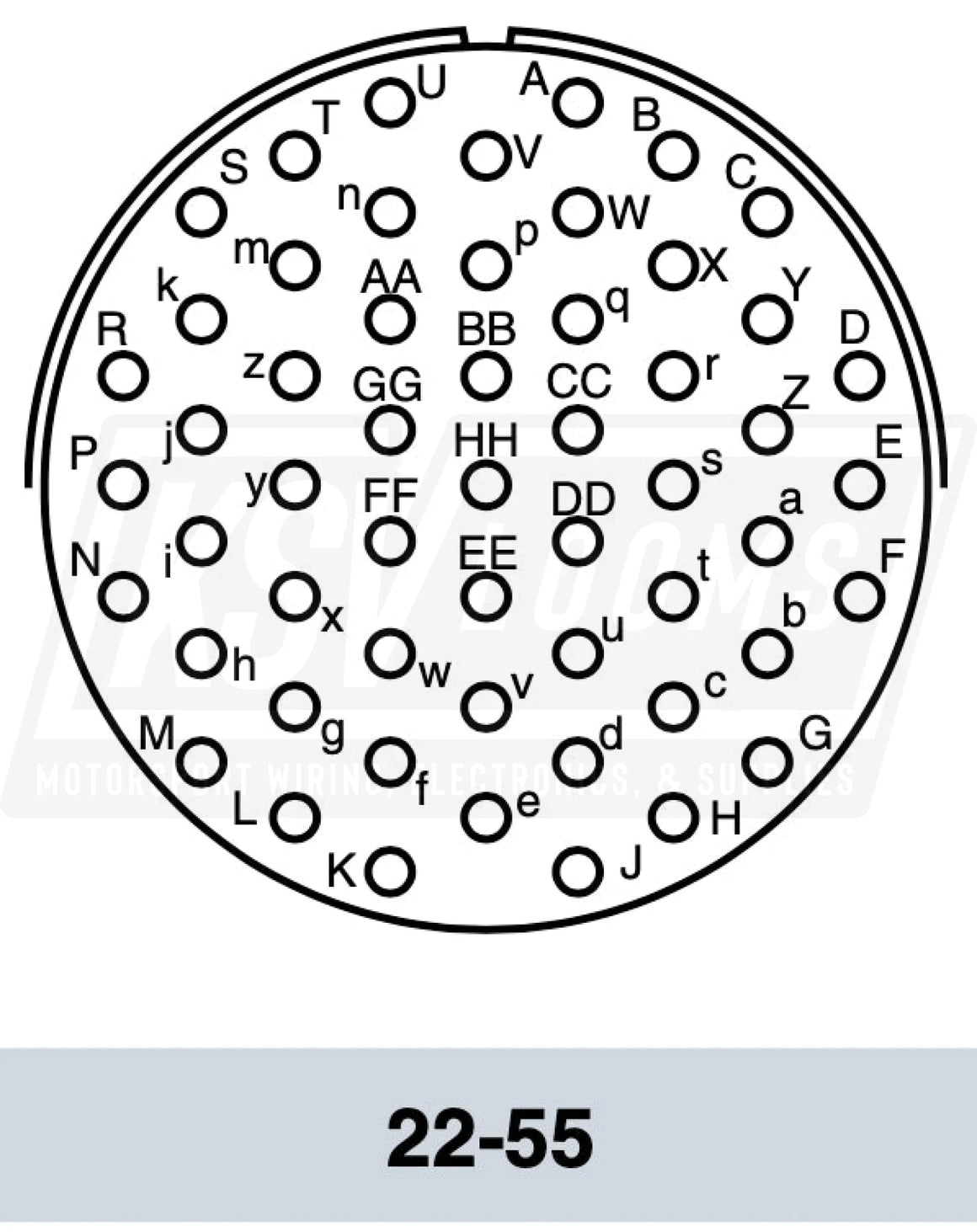

  • 55-way connector
  • Size 20 contacts x 55
  • Terminal gender = Socket
  • Shell size = 22

Information below is for reference (not included with kit);

  • Backshell = M85049/60-2G22A
  • Mating connector = MS3476A22-55P
  • 90 degree boot option = 222K152, 222K163
  • Straight boot option = 202K153, 202K163
  • Nutplate = M85528/2-22A
