JZA80 Supra and SC300 2JZ NON VVTI PNP for EMU PRO

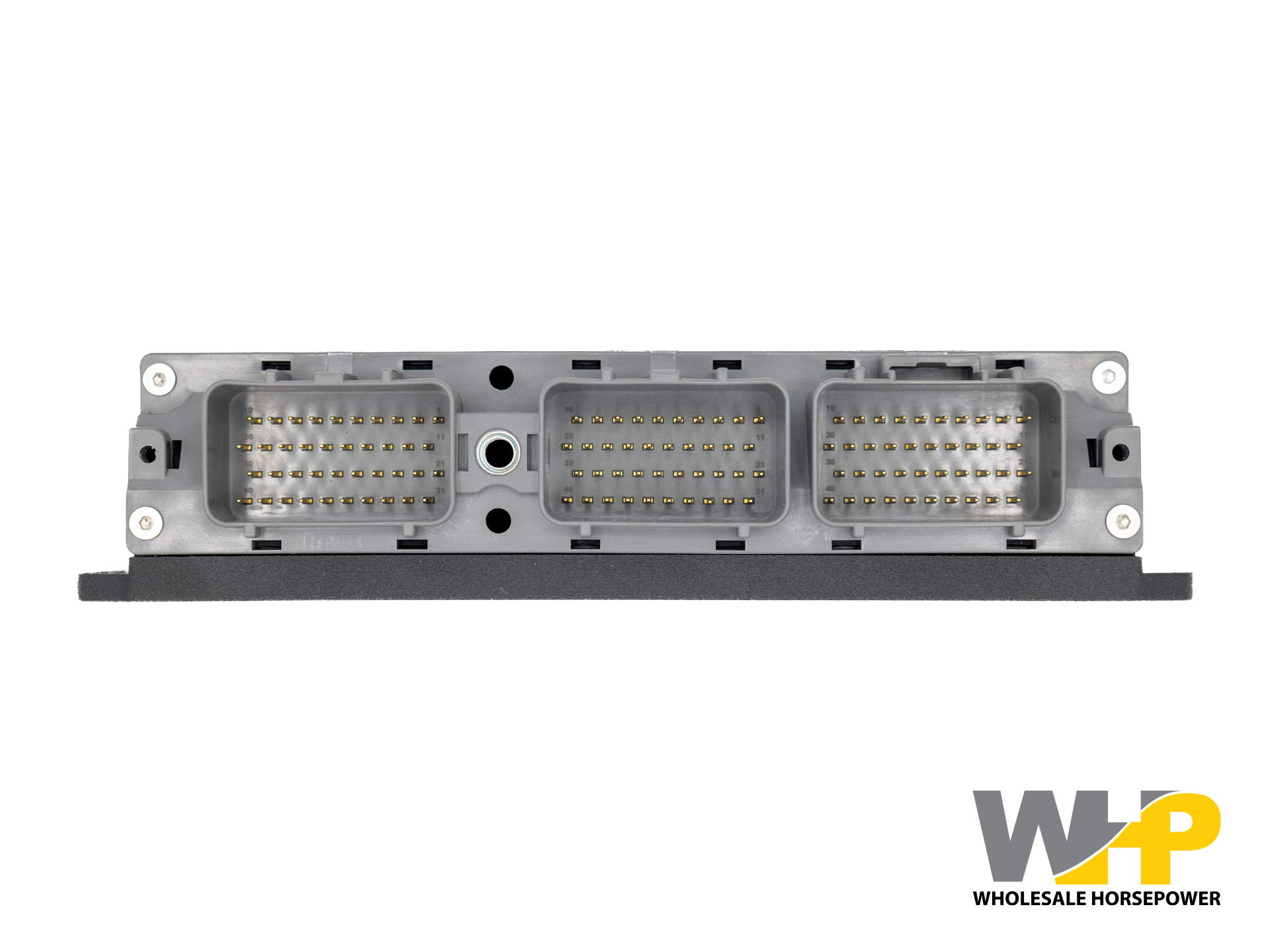

EMU PRO Plug and Play Adapter – Toyota JZA80 (2JZ Non-VVTi)
Designed specifically for 1993–1998 Toyota Supra (GE and GTE) and non-VVTi 1992–1997 Lexus SC300, this WHP Plug and Play Adapter simplifies installation of the ECUMaster EMU PRO engine management system into supported 2JZ applications. Also compatible with non-VVTi Aristo 2JZGTE engine harnesses.

This adapter supports both manual and original Toyota A340 automatic transmissions and retains full compatibility with the factory A340 gear selector. OEM ECT Manual and O/D buttons are repurposed for use within ECU strategies, allowing additional driver control without extra wiring.

Compatible with both EMU PRO-8 and EMU PRO-16 ECUs (sold separately):

• EMU PRO-8 unlocks advanced features like drive-by-wire support, motorsport-grade traction control, complex boost control, and automatic transmission tuning.

• EMU PRO-16 adds the ability to control six additional injectors for staged fuel injection strategies.

Notes:

• USDM 2JZ vehicles will require an intake air temperature (IAT) sensor kit, as the factory MAF sensor is removed.
• JDM 2JZGTE engines retain the original IAT sensor and do not require this upgrade.

Works with:

• 1993–1998    Supra (JZA80)    2JZ-GTE
• 1993–1998    Supra (JZA80)    2JZ-GE
• 1992–1997    SC300 (JZZ31)    2JZ-GE
• 1991–1997    Aristo (JZS147)    2JZ-GTE

What's in the box:

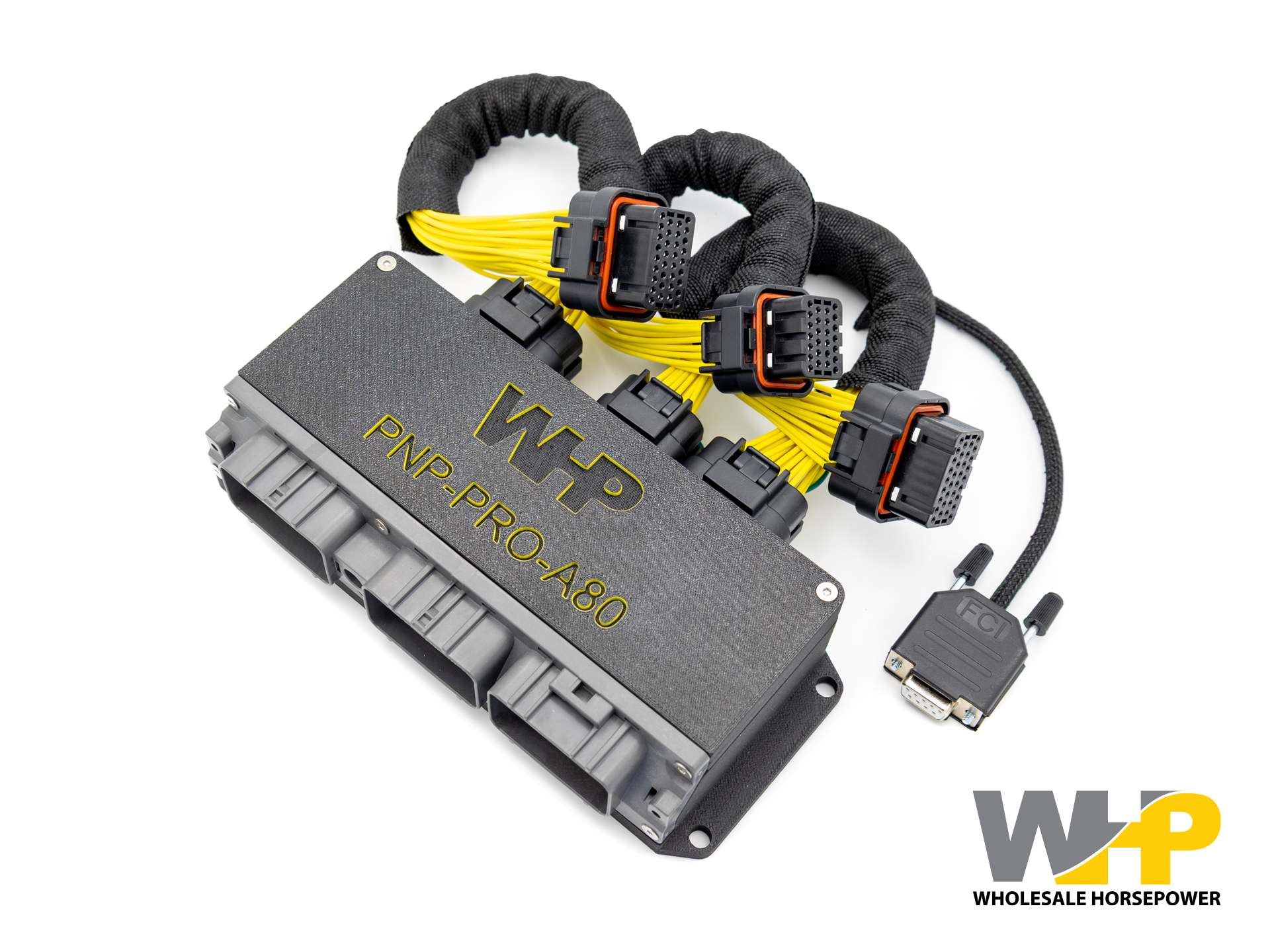

• 2JZGTE EMU PRO Plug and Play Adapter
• Installation instructions

Optional:

• JZA80 Mounting Plate
