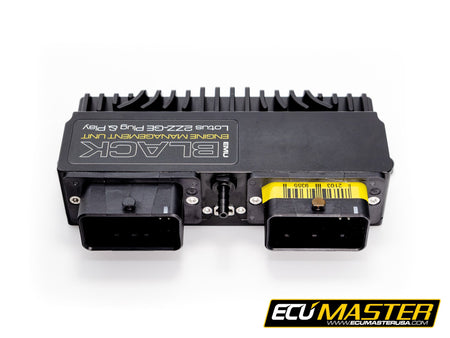

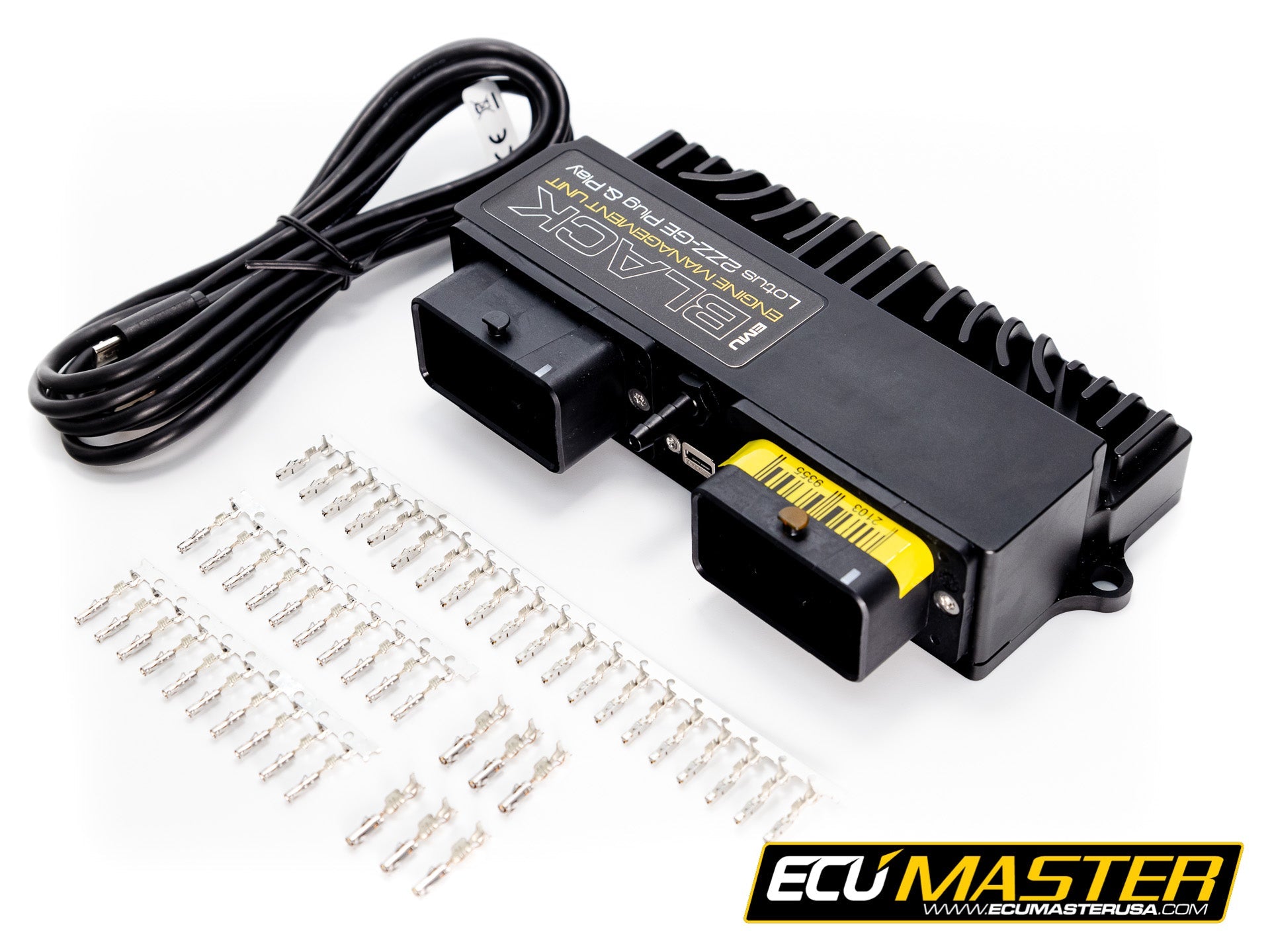

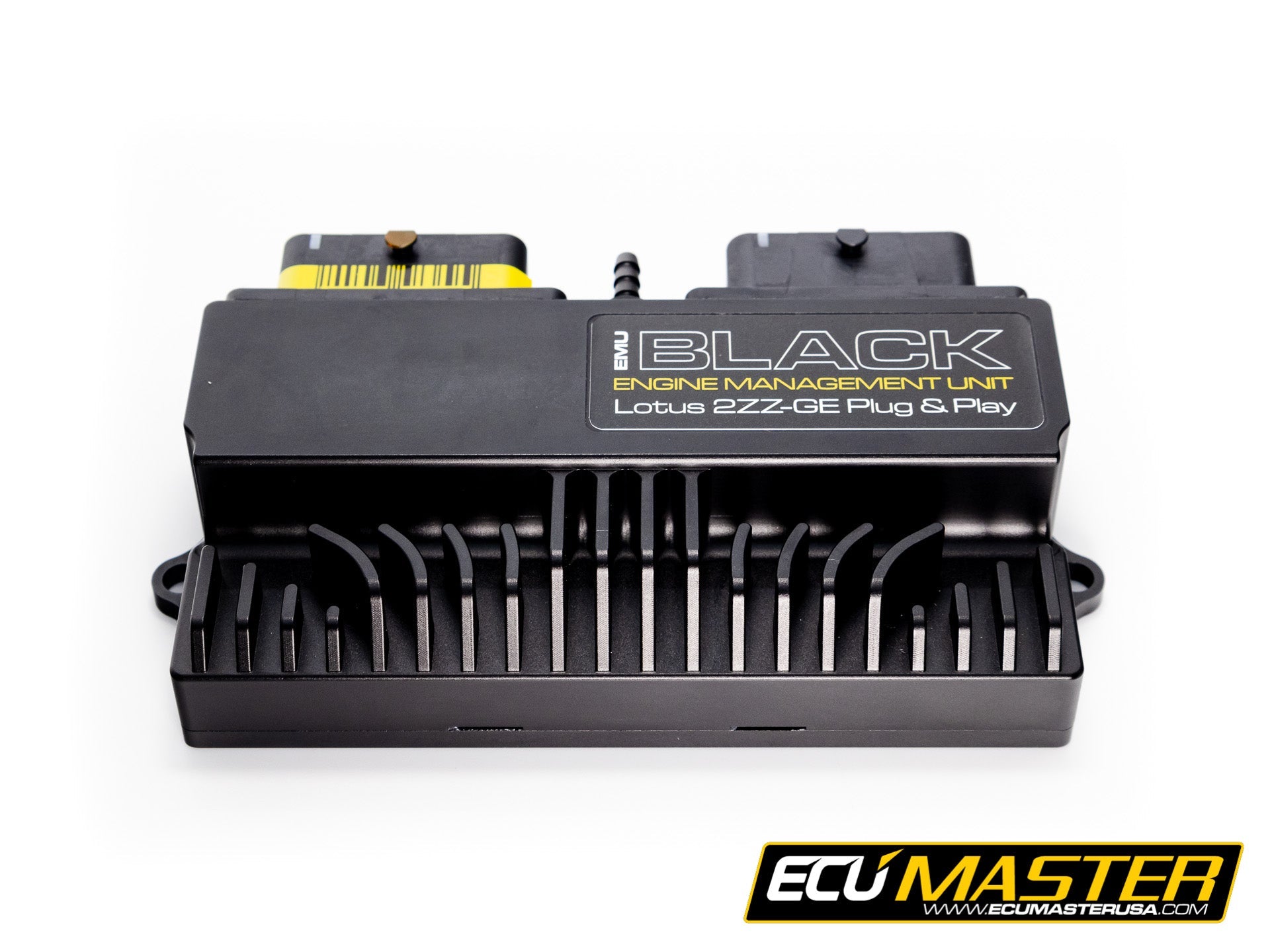

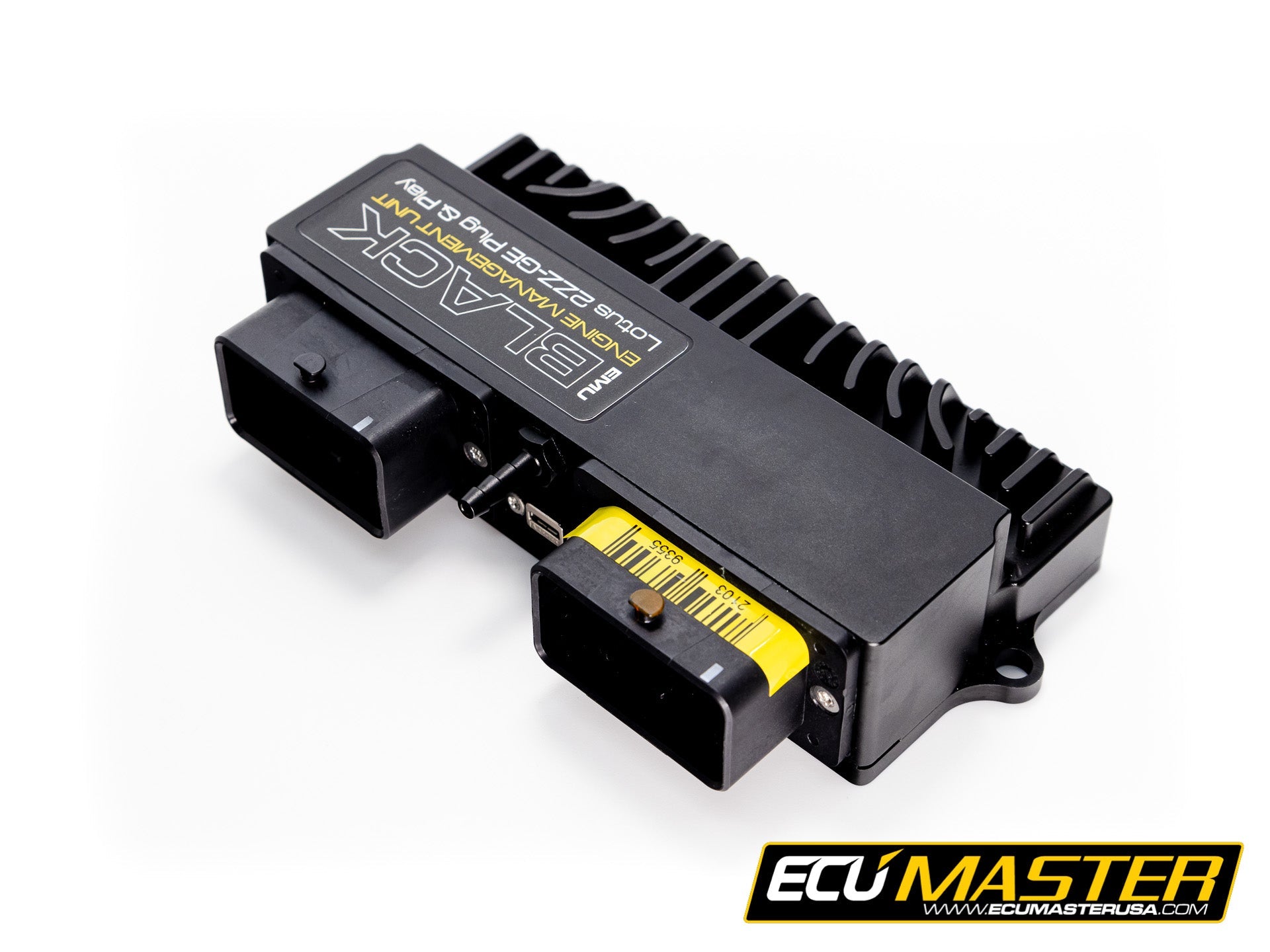

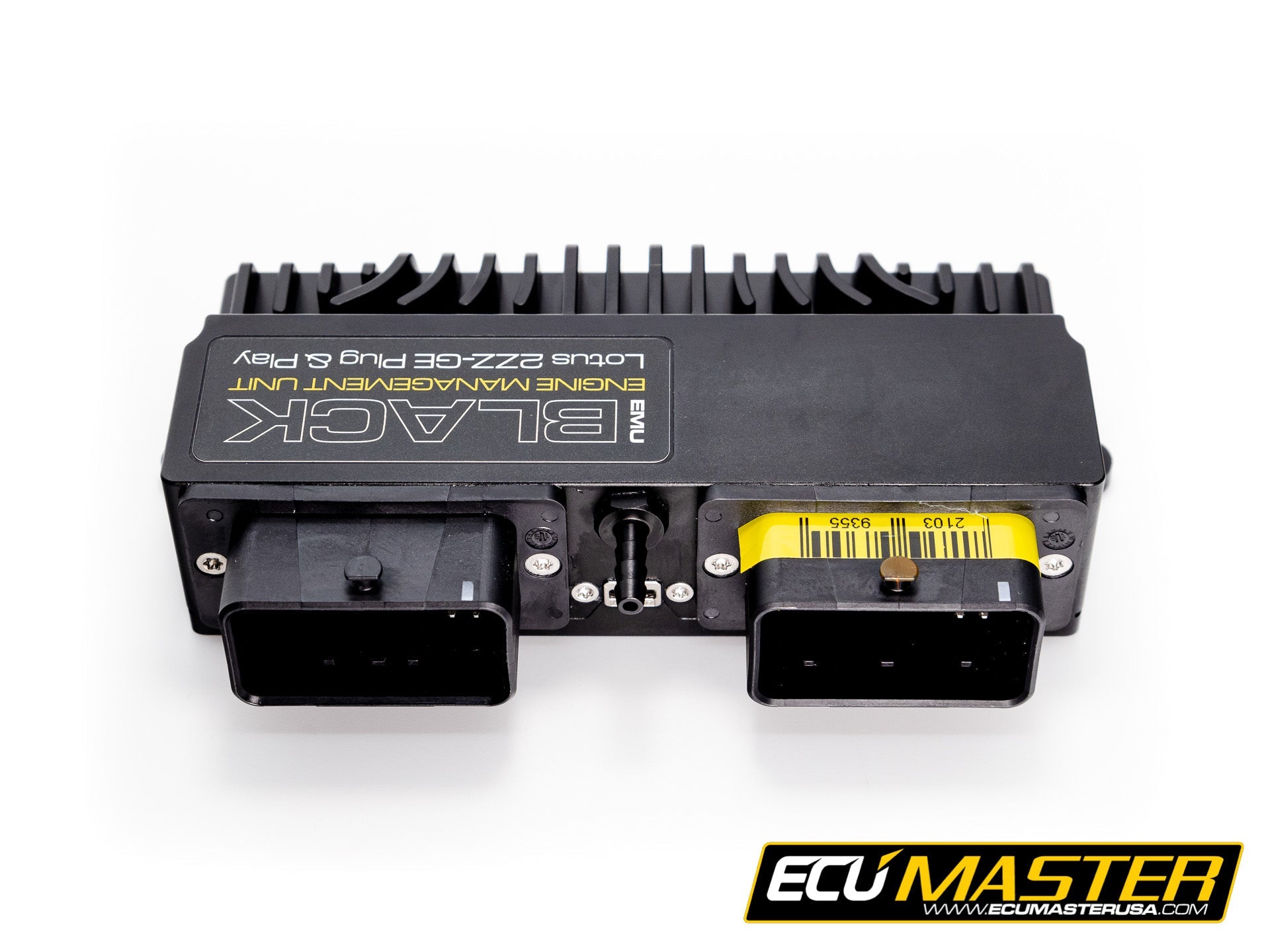

EMU BLACK FOR LOTUS 2ZZ DBW
Our product is dedicated for all Lotus S2 enthusiasts, this system is a great upgrade for your car because it gives you full control over your engine parameters without needing any modifications to the original wiring harness.
The ECU comes unlocked with all functions enabled including traction control , pit limiters , launch controls and much more.
A great feature included in the EMU Black is the wide band lambda controller which is built in, along side knock control, full VVT access and lift is also supported.
The Lotus heat soak pump functionality is also retained this is very important and our ECU as a standalone ECU keeps this feature !!
The EMU Black Supports all versions of instruments panels, a plus with this also is if you are using a V Box unit there are options for more channels and this can be recorded and streamed. The lotus OEM CAN bus can only stream coolant temp and rpm, however our ECU can access all CANbus options like TPS, cranking etc for extra data analysis.
Please note: On Lotus models with a 1 Mbps CAN speed for the Lotus CAN dashboard, the ECUMaster CAN Bluetooth unit we offer operates at 500 kbps which will not work due to the CAN bus speed difference. Instead, we offer the EDL-1 logger as a great addition when purchased with the Lotus EMU Black. The EDL-1 logger has the Bluetooth feature for connecting an Android device to view sensor data from the EMU. The EDL-1 uses the EMU Serial bus instead of CAN to obtain EMU sensor data and also creates a new log file each time the EMU is powered up with a time and date format.
2ZZ LOTUS EMU BLACK PNP MANUAL (Preliminary manual)
BOSCH O2 SENSOR WIRE DAIGRAM FOR LOTUS 2ZZ (DBW) EMU BLACK
BASE MAPS AND PINOUT FOR EMU BLACK LOTUS 2ZZ PNP
