DT 2 WAY RECEPTACLE BLACK

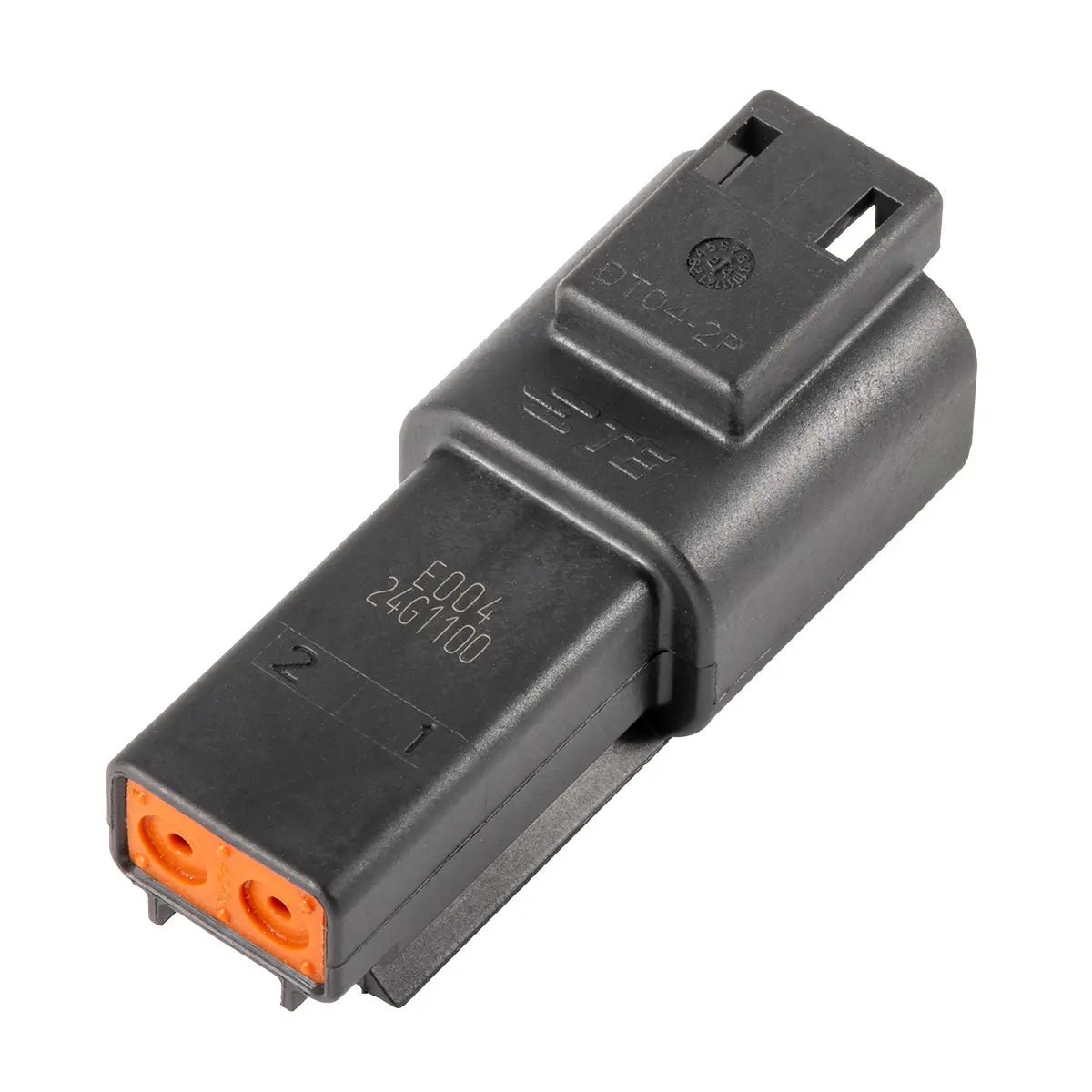

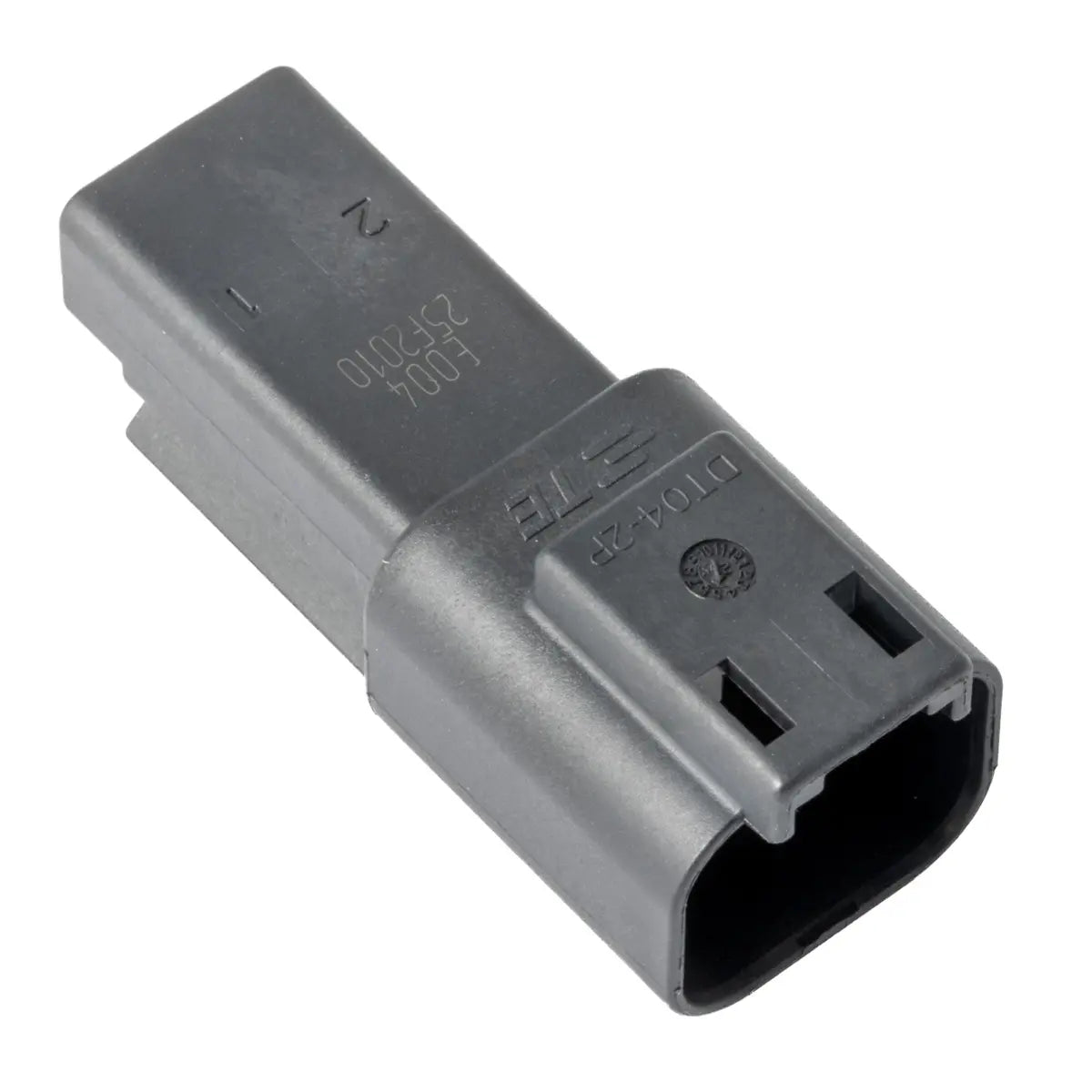

DT04-2P-E004 Deutsch DT Series 2-Way Receptacle Connector

TE Connectivity/DEUTSCH DT04-2P-E004 2-way DT Receptacle housing. Compatible with stamped and solid barrel, size 16, pin (male) contacts. This connector housing requires a wedgelock, contacts, and a mating connector. Please see below for more specific details.

DT04-2P-E004 Details:

• Wire Range: 14-20 AWG (0.5-2 mm)
• Housing Color: Black
• Contact Size: 16 (each terminal is rated for 13.0 amps.)
• Keyway: A (this is typically indicated by the black color of the housing, though some exceptions to this rule exist).
• Modification: E004 (Black)
• Overall Width: .675 (17.15)
• Overall Length: .670 (17.02)
• Overall Height: 1.708 (43.38)
