DT 2 WAY PLUG BLACK SHRINK BOOT ADAPTER

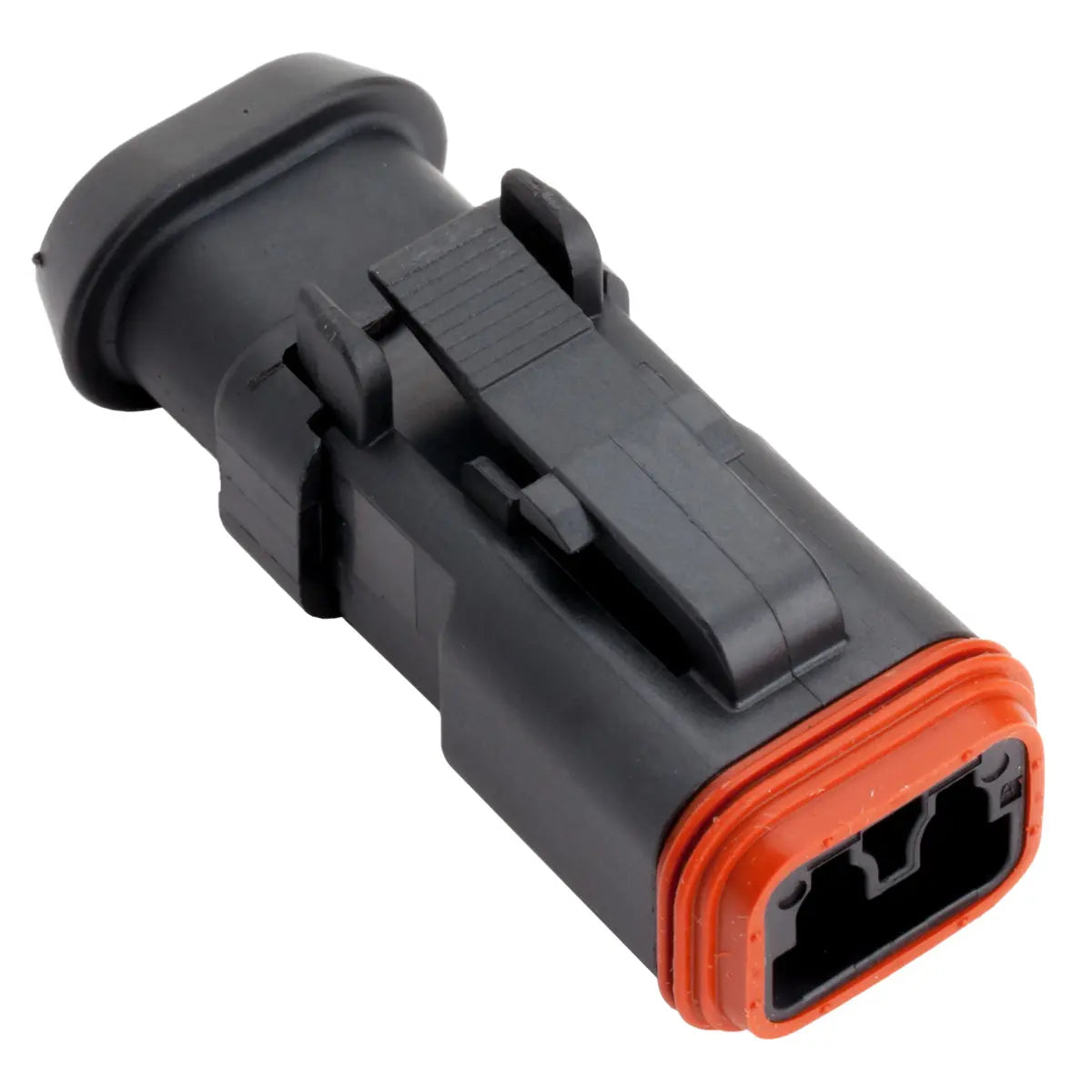

DT06-2S-EP11 Deutsch DT Series 2-Way Plug Connector

TE Connectivity/DEUTSCH DT06-2S-EP11 2-way DT Plug housing. Compatible with stamped and solid barrel, size 16, socket (female) contacts. This connector housing requires a wedgelock, contacts, and a mating connector. Please see below for more specific details.

DT06-2S-EP11 details:

• Wire Range: 14-20 AWG (0.5-2 mm)
• Housing Color: Black
• Contact Size: 16 (each terminal is rated for 13.0 amps.)
• Keyway: A (this is typically indicated by the black color of the housing, though some exceptions to this rule exist).
• Modification: EP11 (Shrink boot adapter, black)
• Overall Width: .591 (15.01)
• Overall Length: .628 (15.95)
• Overall Height: 1.611 (40.92)
