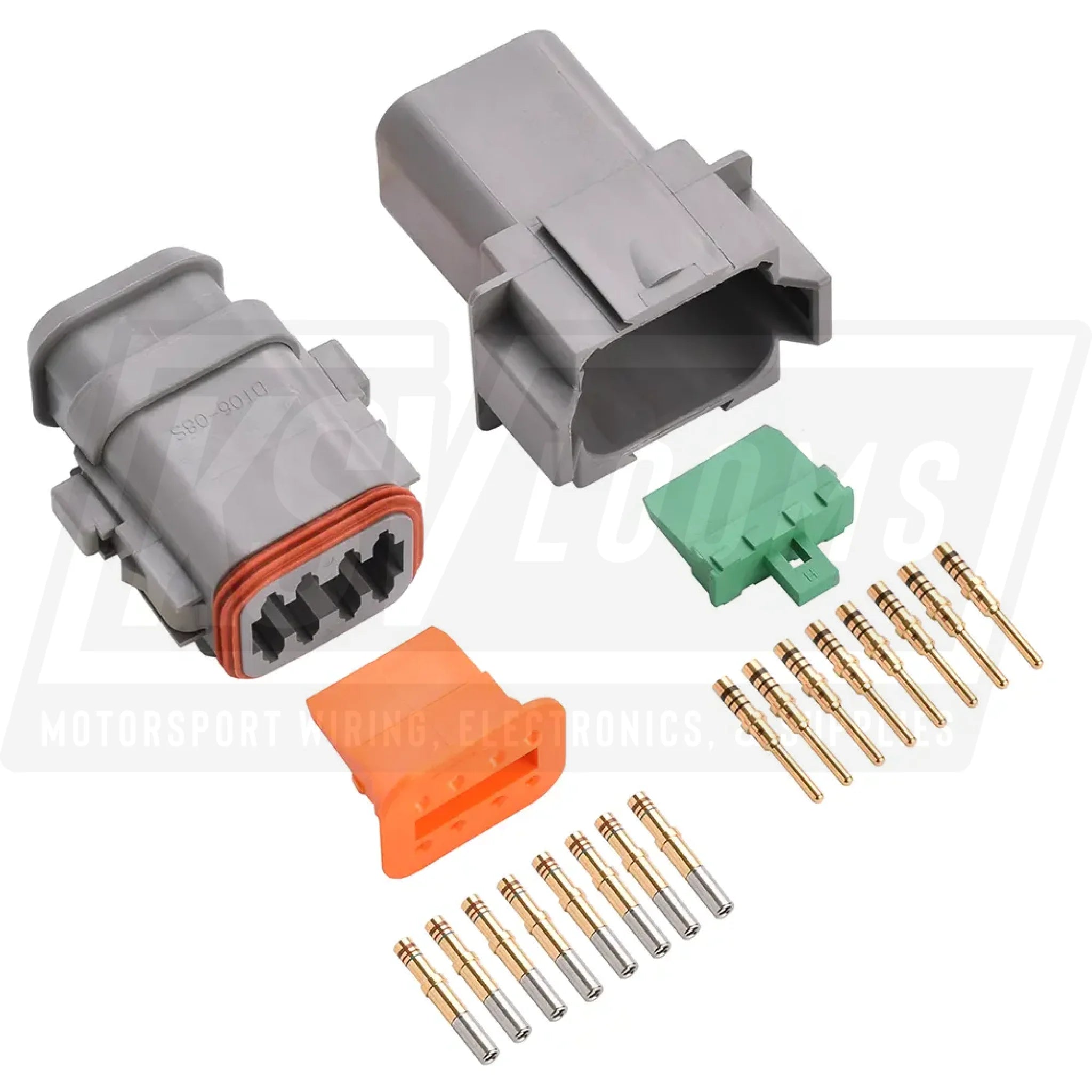

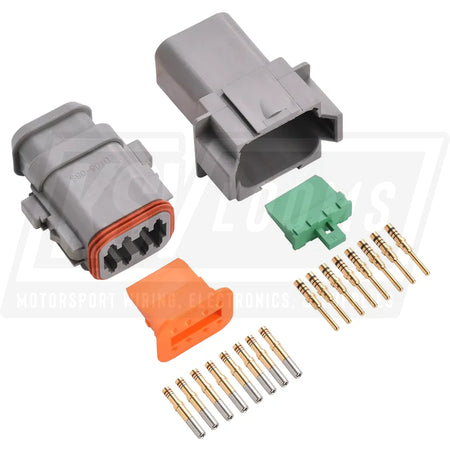

8-Way Mated Deutsch DT (Key A) Connector Kit, DT04-08PA and DT06-08SA-E008 (Gold, 20-16 AWG)

8-Way Mated Deutsch DT (Key A) Connector Kit, DT04-08PA and DT06-08SA-E008 (Gold, 20-16 AWG).  This is Key A, which is the standard key found on most DT-8 way connections.  For DT 8-way there are multiple keys available, key A is most common.  If you are unsure on which key you have, there should be a part # on the connector housing.

• DT04-08PA receptacle housing x 1
• Size 16 (20-16 AWG) gold pin solid contact x 8
• W8P Wedgelock x 1

• DT06-08SA-E008 plug housing x 1
• Size 16 (20-16 AWG) gold socket solid contact x 8
• W8S Wedgelock x 1
