4 AWG Black Battery Cable

KSV Looms

4 AWG Black Battery Cable.  Sold per ft.

We can also cover the battery cable in Raychem DR-25 heat shrink to further protect the battery cable from the environment.  If you would like that option, please select 'Yes' from menu.

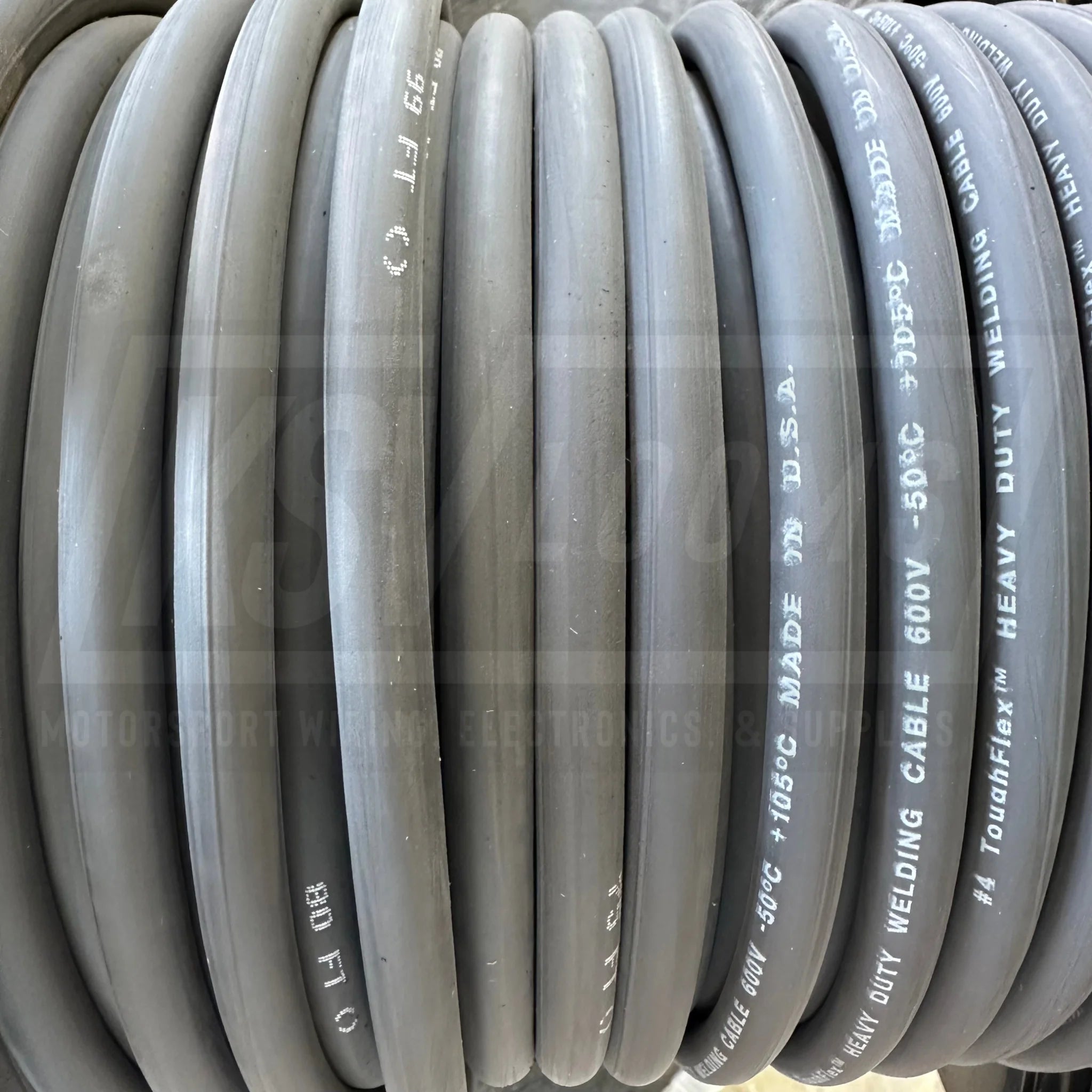

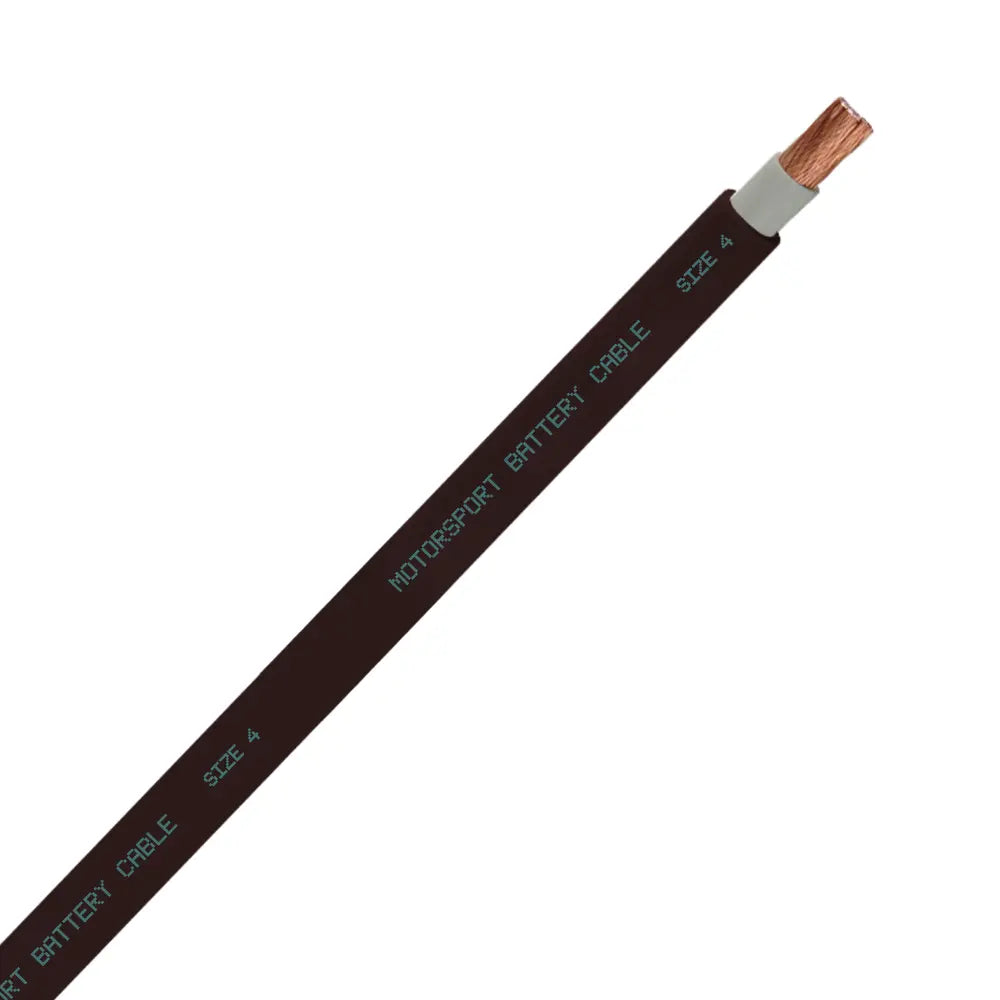

This 4 AWG battery cable features a fully annealed, stranded bare copper conductor, a paper tape separator, and an Ethylene Propylene Diene Monomer (EPDM) Rubber jacket that acts as insulation. This battery cable has a voltage rating of 600V and a temperature range of -50°C to +105°C. It is suitable for use in power supply applications, is also abrasion resistant and RoHS compliant.

AWG Size = 4
Cond. Material = Bare Copper
Conductor Stranding = 364/30
Jacket Material = Ethylene Propylene Diene Monomer Rubber (EPDM)
Max. Temp = 105C
Min. Temp = -50C
No. of Strands = 364
Nom. Insul. Thick. (in) = 0.06
Nom. O.D. (in) = 0.343
Strand Size = 30
Approx LBS/MFT = 147
