Mil-W-22759/32

ALL WIRE IS CUT TO LENGTH RETURNS ARE NOT ACCEPTED

SAE AS22759/32

MS22759/32

Insulation: Fluoropolymer Cross-linked Modified ETFE

• Tin Plated Copper Conductor
• Voltage Rating: 600 Volts
• Temperature: 150 Degrees C (212F)

M22759/32 Wire Identification:

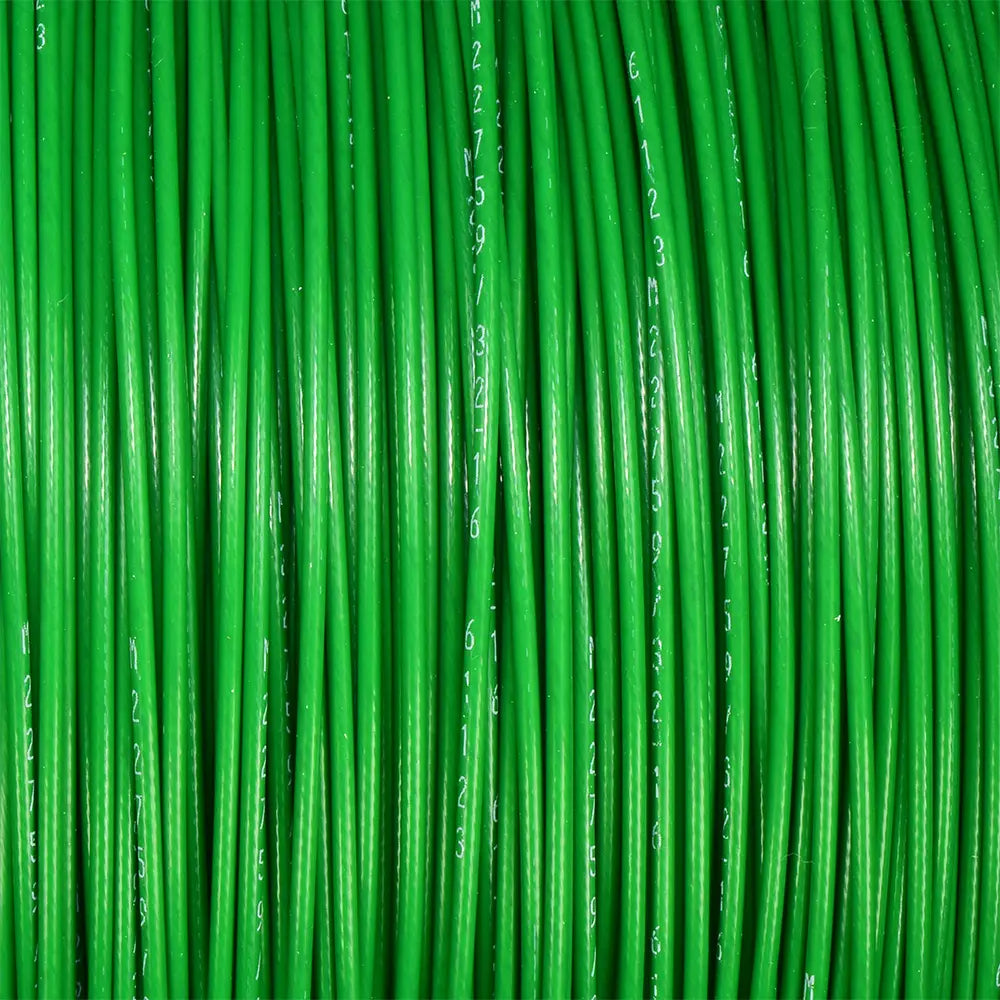

• Green or white print on the insulation
• Military part number including AWG

Fluoropolymer Cross-linked Modified ETFE Single Insulation ( also known as Tefzel ) designed for aerospace applications where weight, dimensional tolerance, and mechanical durability are required. This wire exhibits high chemical and radiation resistance.

Standard Uses:

• Aircraft Wire
• Marine Wire
• Automotive Wire
• Motorsport Wire
• Race Car Wire
• Data Aquistion Looms
• Chassis Looms

Mil Spec Wiring Color Codes

• 0 =  Black
• 1 =  Brown
• 2 =  Red
• 3 =  Orange
• 4 =  Yellow
• 5 =  Green
• 6 =  Blue
• 7 =  Violet
• 8 =  Grey
• 9 =  White
