MS3476A20-16P MIL-Spec Connector Kit

KSV Looms

MS3476A20-16P Connector Kit.  This genuine MIL-Spec connector kit includes connector, terminals, cavity plugs, and insertion/extraction tool.

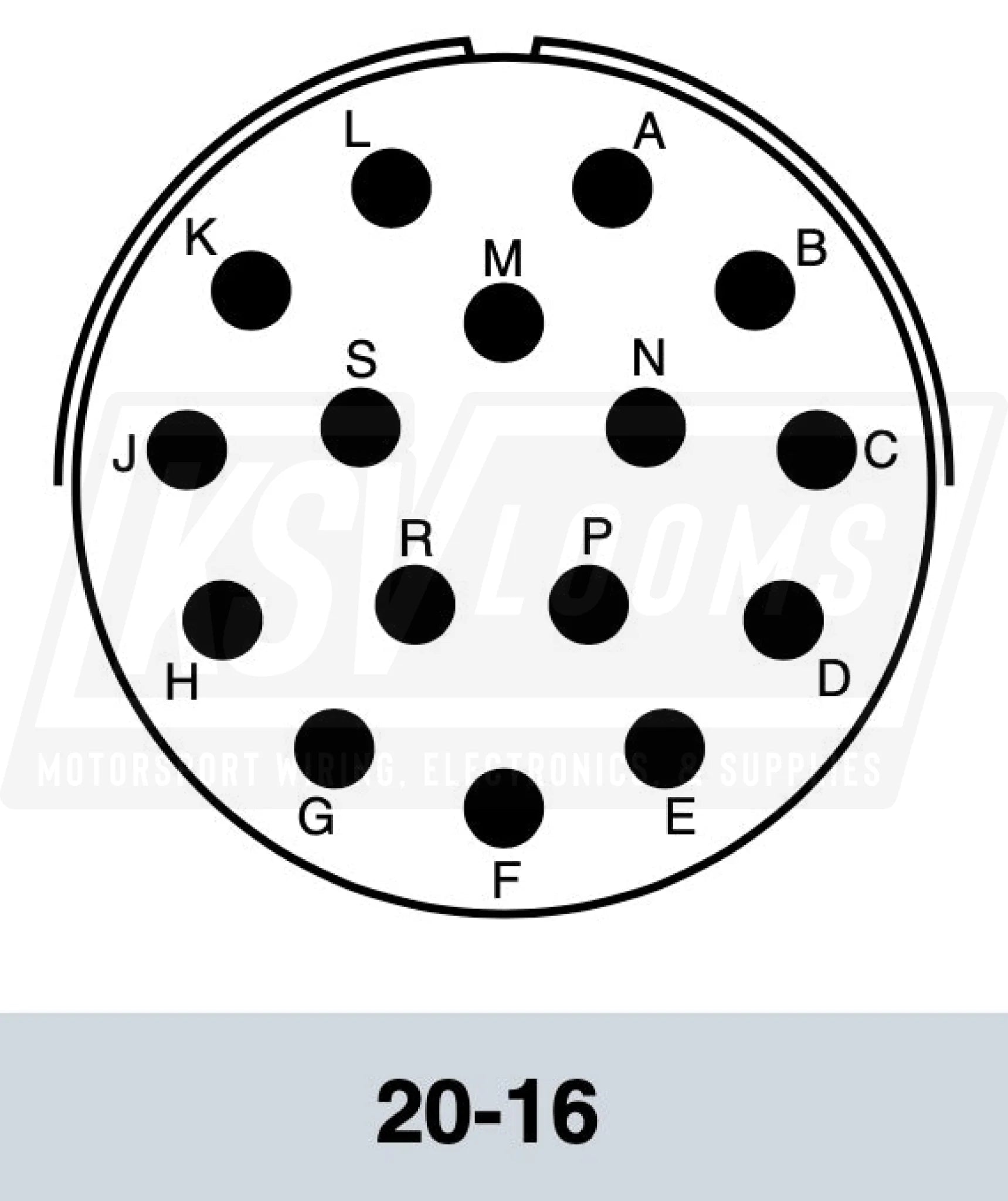

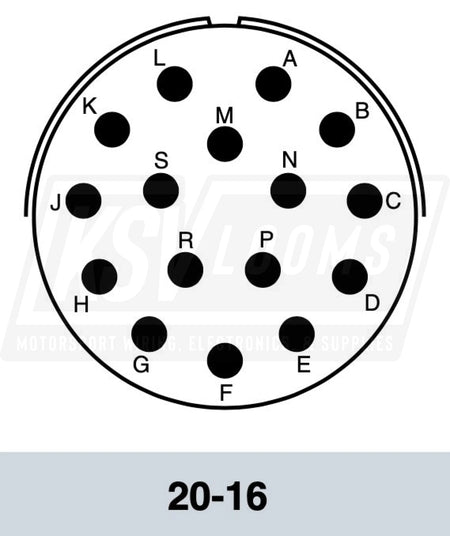

- 16-way connector
- Size 16 contacts x 16
- Terminal gender = Pin
- Shell size = 20

Information below is for reference (not included with kit)

- Backshell = M85049/60-2G20A
- Mating connector = MS3470A20-16S or MS3474A20-16S
- 90 degree boot option = 222K152, 222K163
- Straight boot option = 202K153, 202K163
