MS3470A20-16S MIL-Spec Flanged Receptacle Connector Kit 16-Way
MS3470A20-16S MIL-Spec Flanged Receptacle Connector Kit 16-Way
Part #: MS3470A20-16S

MS3470A20-16S MIL-Spec Flanged Receptacle Connector Kit, 16-Way

Aero Electric
$57.03

Secure checkout

Friendly support

Hassle-free returns

Mil-Spec Circular Connector 16-Way Receptacle Kit

The MS3470A20-16S is a 16-way flanged receptacle circular connector kit with socket (female) contacts. The connector housing is black anodized aluminum.

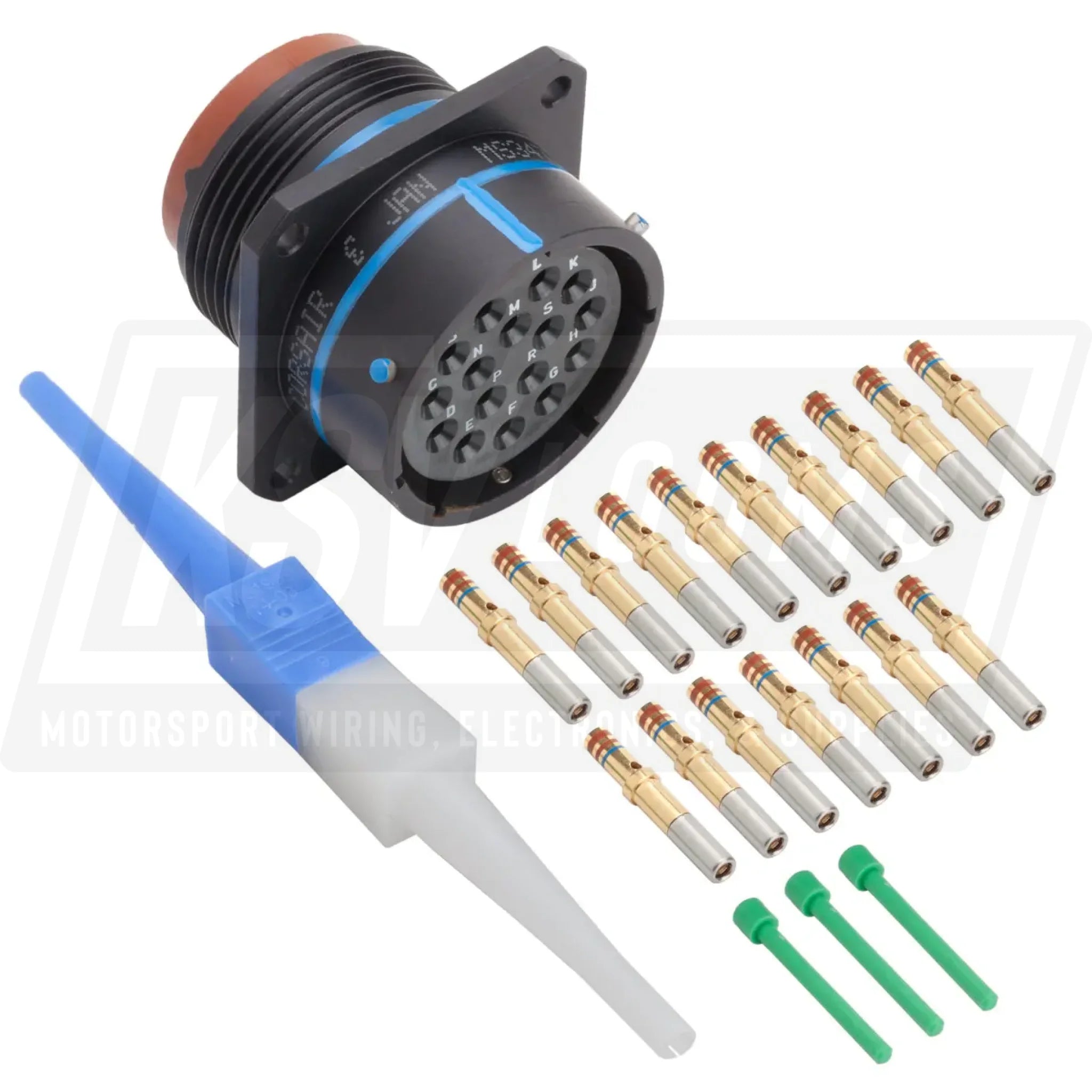

MS3470A20-16S Kit Includes:
  • (1) 16-Way Flanged Receptacle Connector Body.
  • (16) Size 16 socket (female) contacts 13 A M39029/5-116
  • (1) Insert/Removal Tool M81969/14-03
  • (1) Cavity Plug MS27488-16-2 Quantity varies by part number.
Required Crimp Tooling:
  • DMC Crimp Frame: AF8 requires TH1A
  • DMC Turret: TH1A requires AF8
  • Deutsch: HDT-48-00 all in 1 tool.
  • Econo Tool: 18880 size, 16 contacts only.
Shrink Boots:
  • Straight: 202K153-25-0
  • 90°: 222K152-25-0
Shrink Boot Adapter:
  • M85049/60-2G20A
Nut Plate:
  • M85049/95-20A
Deutsch Autosport Variant (will not mate with Mil-Spec connectors):
  • AS020-16SN
Notes:
  • Size 16 contacts can accept 14-AWG Tefzel wire if the stripped wire is perfect without stray conductor strands. The current rating remains the same at 13 amps each.
